Place of Origin: | Guangdong |
---|---|
Brand Name: | Wincode Optronics |
Certification: | CE/ROHS |
Model Number: | WOP-BL1003 |
Minimum Order Quantity: | 2 pcs |
Price: | negotiation |
Packaging Details: | Exported carton box / flight case |
Delivery Time: | 3-5 working days after received your payment |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |
Supply Ability: | 1000pcs/month |
Name: | Wireless Battery Led Uplights | Power: | Battery Powered |
---|---|---|---|
Wireless: | DMX512 Wireless Built-in | LEDs: | 12 Pcs 10W RGBW 4 In 1 LEDs |
Lens: | 25-35degree | Channels: | 4/7 |
Body Material:: | Metal Plate | Control: | DMX512, Master/slave, Auto, Sound Active |
Battery Capacity: | 24AH | ||
High Light: | Battery Powered Led Lights,Battery Powered Outdoor Lights |

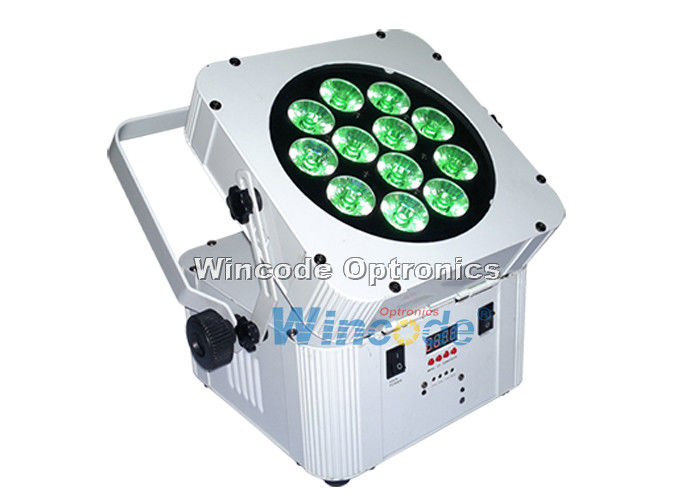

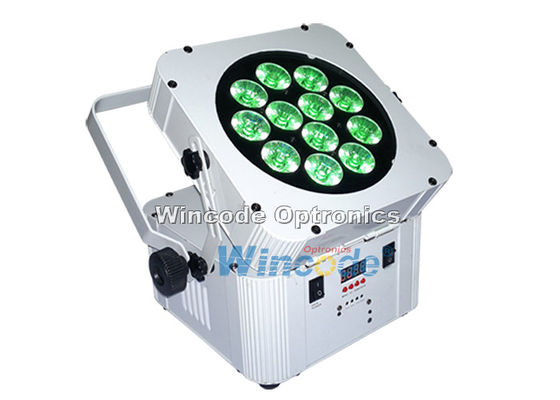

12×10W RGBW 4 In 1 4 / 7 Channels Battery Powered Stage Lights Wireless Battery Led Uplights for wedding events
Quick detail:
Name: WiFREE MagiCube Q12
With Built- in 2.4G Wireless DMX 512 Receiver
With Battery indicator, 4 show grids on the light
Power supply: AC110V-250V
Frequency: 50-60Hz
Warranty:1-year Limited Warranty
Packing size: 250*250*250mm
N.W: 4.5kg
G.W: 5.8kg
Description:
WiFREE MagiCube9 Series have 3 designs, they are WiFREE MagiCube Q12/F12/X12, are equipped with 12 pcs 10W/15W/18W 4/5/6 in 1 LEDs, battery powered with 24AH @INR18650 2000mA batteries; 2.4G DMX wireless built-in; it can runs at least 5 hours at full color mode and at least 8 hours at auto mode when battery full charged.
WiFREE MagiCube12 is very convenient, easy, portable to use in wedding, parties, events to wash the wall without power cables, dmx signal cables in mess. Work with the battery powered & wireless DMX built-in controller, you only put WiFREE MagiCube12 on the right position and control them with battery powered & wireless DMX built-in controller at control room far way 300meters.
Specification:
Model No: | WOP-BL1003 | |
Light Source: | WiFREE MagiCube Q12 | 12pcs 10W 4in1 RGBW LEDs |
WiFREE MagiCube F12 | 12pcs 15W 5in1 RGBWA LEDs | |
WiFREE MagiCube X12 | 12pcs 18W 6in1 RGBWA+UV LEDs | |
Lithium Battery: | Capacity | 24000mAH |
Optical: | Lens Angle: | 25 |
Lens Size: | 42mm | |
Control Singal: | Protocol: | USITTT DMX-512 / RDM Compatible |
Channel Mode: | 4/7,5/9, 6/11 | |
Operating Modes: | Standalone, Master/Slave, Sound Active, DMX-512, RDM | |
Programs: | Preset Colors, Auto Chase Effect, Auto Fade Effect, Customs | |
Dimmer Mode: | Linear/Exponential/Logarithmic/Hyperbolic | |
PWM Dimming: | 16bit Dimming with 1000HZ Frequency | |
Cooling Method: | Intelligent Cooling System with Heat Sink and Fan Both | |
Other Features: | 32bit ARM Cotex MCU, Constant Current Drived, | |

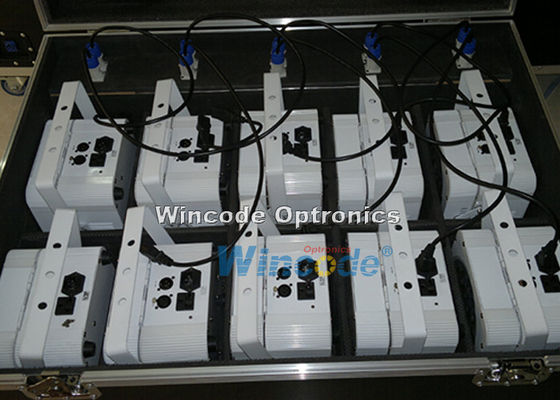

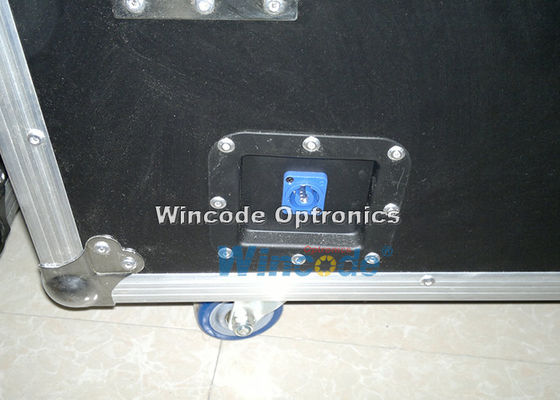

Packaging Method: | Chargeable flight case option |
Applications:
Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers
Competitive Advantage:
The difference and advantage on the market.
1. Tianxin LEDs
2. LED use reflow solder SMT
3. SMT constant current main board ( program can be customized )
4. Use 24AH @INR18650 2000mA batteries, not like other factories use 30 pcs ICR18650 3S6P 20AH.And use ICR liquid is easy leak from batteries. More longer time and more safe in battery.
5. Body Metal plate need 1.5-2mm, lusterless white/black color painting
6.NO Twinkle. Other factories almost have this problem when you use them with wireless at master/slave mode,it will twinkle every seconds.
7.Easy repairing. We use easy plug to connect between the device inside.
Wincode Optronics to provide the following professional services:
1. Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
2. Structure Designs: Pro/E--Parts--assembly drawing--Prototype
3. Integrated Circuit Design:
4. Software Design:
5. Undertake domestic and international OEM, ODM, manufacturing.
6. Over 8 years exported and OEM manufacturing experience.
7. Always insist on the quality of the first.
