‌Professional IP65 DMX-512 Uplight 35° Beam 25°/45°/60° Lens 32-bit ARM Cortex MCU Silent Operation

‌Professional IP65 DMX-512 Uplight 35° Beam 25°/45°/60° Lens 32-bit ARM Cortex MCU Silent Operation

Brand Name: Wincode Optronics
Model Number: WOP-OPS18
MOQ: 2 pcs
Price: negotiation
Payment Terms: T/T,L/C,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE/ROHS
Product Type:
Waterproof Outdoor Led Up Light
Control Mode:
DMX512, Master Slave, Sound Control, Auto Run, Gradient Changing, Jumping Changing
Beam Angle:
25°/45 °/60° Optional
Color Options:
RGBW/RGBAW/RGBAW UV
Light Source:
18*10W (RGBWA+UV 6 In 1) LED
Len Size:
29mm
Optical Feature:
HDTV Video Flicker Free
Protection Grade:
IP65
Packaging Details:
Exported carton box / flight case
Highlight:

35° Beam DMX-512 Uplight

,

IP65 DMX-512 Uplight

,

Silent Operation DMX-512 Uplight

Product Description

Professional IP65 DMX-512 Uplight | 35° Beam, 25°/45°/60° Lens, 32-bit ARM Cortex MCU, Silent Operation

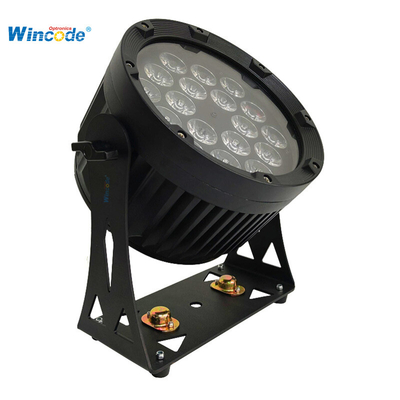

‌Professional IP65 DMX-512 Uplight 35° Beam 25°/45°/60° Lens 32-bit ARM Cortex MCU Silent Operation 0

Product introduction


Precision Meets Industrial Durability!‌ Designed for demanding environments, this ‌IP65 Waterproof LED Par Up Light‌ features

a ‌32-bit ARM Cortex processor‌ that crushes DMX-512/RDM data streams, enabling real-time responsiveness for live shows or

synchronized installations. The ‌180W RGBWA+UV 6-in-1 LEDs‌ deliver studio-grade color consistency, while ‌interchangeable

lenses (25°/45°/60°)‌ let you sculpt light for museums, theaters, or concert arenas.

Next-Level Technology:
⚡ ‌Zero-Noise Cooling‌: Fanless design with ‌over-temperature protection‌ ensures 24/7 reliability.
⚡ ‌16bit PWM Dimming‌: Eliminate flicker for flawless 4K video capture and eye-comfort performances.
⚡ ‌PowerCon & XLR Daisy-Chaining‌: Streamline setup in large-scale rigs with plug-and-play connectivity.
⚡ ‌RDM Remote Monitoring‌: Diagnose fixture status wirelessly, reducing downtime during critical events.

From theme parks to stormy outdoor stages, this uplight is engineered to outperform.


Model No: WOP-OPS18
Light Source: 18*10W (RGBWA+UV 6 in 1)
Lithium Battery: Capacity 12000mAH or 16000mAH customize
Optical: Lens Angle: 35 degrees
Lens Size: 29mm
Control Singal: Protocol: USITTT DMX-512 / RDM
Channel Mode: 4/7 or 5/9 or 6/10 channel
Operating Modes: DMX512, master slave, sound control, auto run, gradient changing, jumping changing
Programs: Preset Colors, Auto Chase Effect, Auto Fade Effect, Customs
Dimmer Mode: Linear Dimmer
PWM Dimming: 16bit Dimming with 1000HZ Frequency
Body Material: Aluminum Die-casting
Power Connector PowerCon AC power In/Out for Indoor
Other Features: Constant Current Driver.
32bit MCU with ARM Cortex.
16bit PWM Dimming
HDTV Video Flicker Free
Working Temperature Monitoring.
Over-temperature Protection.
Fan-less and Quiet Working.
LED Display Menu On/Off.
Sound Active Mode
Preset Colors
Built-in Auto and Fade Program
Warranty: 1-year Limited Warranty
Net Weight: 6Kgs
Display:  1.8"Graphical LCD Touch Screen

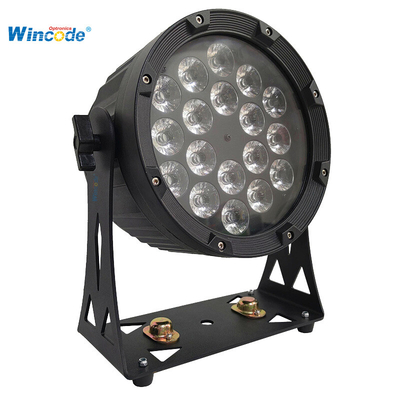

‌Professional IP65 DMX-512 Uplight 35° Beam 25°/45°/60° Lens 32-bit ARM Cortex MCU Silent Operation 1

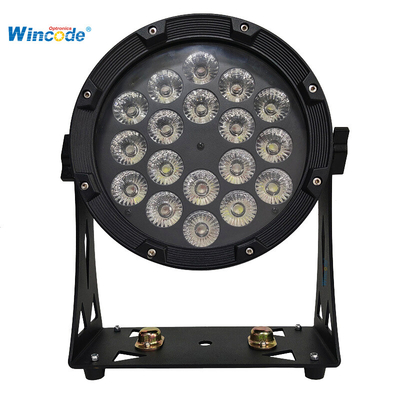

‌Professional IP65 DMX-512 Uplight 35° Beam 25°/45°/60° Lens 32-bit ARM Cortex MCU Silent Operation 2

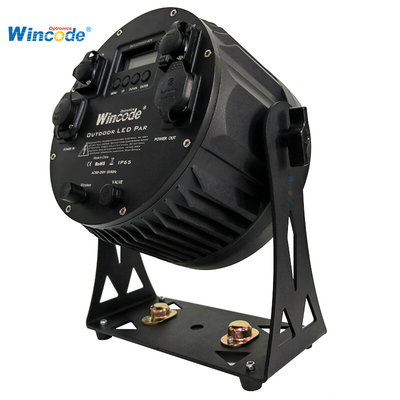

‌Professional IP65 DMX-512 Uplight 35° Beam 25°/45°/60° Lens 32-bit ARM Cortex MCU Silent Operation 3

‌Professional IP65 DMX-512 Uplight 35° Beam 25°/45°/60° Lens 32-bit ARM Cortex MCU Silent Operation 4





Applications:


Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall,

theatre, studio, and other entertainment centers …


‌Professional IP65 DMX-512 Uplight 35° Beam 25°/45°/60° Lens 32-bit ARM Cortex MCU Silent Operation 5


HIGH QUALITY:

All products is made in compliance to CE. RosH UL standards

‌Professional IP65 DMX-512 Uplight 35° Beam 25°/45°/60° Lens 32-bit ARM Cortex MCU Silent Operation 6


OUR SERVICE:

-OEM,ODM,OBM accepted

-Market analysis in good communication with customers, to make the best plan and develop new products.

-for win-win cooperation.

-Punctual shipping 99.9% so far

-Flexible payment methods: T/T, Western Union, MoneyGram and Paypal etc.


OUR ADVANTAGE:

‌Professional IP65 DMX-512 Uplight 35° Beam 25°/45°/60° Lens 32-bit ARM Cortex MCU Silent Operation 7

-Products quality is ensured by strict QC from raw materials and products process

-Production team members are experienced in stage lighting assembling

-Our team is able to research and develop new items with professional backups on all aspects.

-Production capacity of 3 containers a month.

-Fast respond to your inquiry within 1 hour from our efficient sales team, so as after-sales issue.

-Our factory stands by a master road while share a wide square, absolutely ready for any sizes container loading.


All products have to go through 4 checks in the workshop:
1. Raw material inspection
2. Assembling inspection
3. Finished products inspection
4. Packing inspection before shipping
