Dmx512 Led Controller With 62 Intelligent Fixtures , Dj Light Controller For Night Club

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Wincode Optronics
Certification: CE/ROHS/UL/FCC/SGS
Model Number: WOP-SuperPro512
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Item: 512 Moving Light DMX Controller Channels: 512
Standard: DMX512/1990 Fixture Library: Pearl
Fixtures Support: 62 Intelligent Fixtures
High Light:

Led Dmx Controller

,

Dmx Rgb Led Controller


Product Description

WOP-SuperPro512 SuperPro 512 Moving Light DMX Contoller For Night Club DJ Bar DMX512 Control System





Description:



WOP-SuperPro512 SuperPro 512 Moving Light DMX Contoller  is one moving head light console with 512 channels, Output port with optical isolated. Up to 62 intelligent Fixtures may be connected with a maximum of 36 channels each.Uses can allocate DMX channel to each intelligent Fixture dynamically.







Specification:



DMX512/1990 standard, 512 DMX channels, output with optical isolated.



Up to 62 intelligent Fixtures may be connected with a maximum of 36 channels each.



Uses can allocate DMX channel to each intelligent Fixture dynamically.



16-bit X/Y control for absolutely precise movement.



Up to 80 SHAPE generators. SHAPE track control is provided to control such effects as circles, lines and shapes like 8, etc.



62 Chases, up to 100 Steps each. Trigger mode selectable: Music synchronously, Auto, Manual speed



6 Chases, 62 Scenes operated at the same time. At most 62 intelligent Fixtures can be selected simultaneously.



31 MACRO, running combination of different manual, scene and chase can be recorded to the MACRO.



USB port is provided. each USB flask-disk can record the whole data of controller,



LCD display with backlight.



Power supply: AC 90-250V / 50-60Hz



Size: 483mm x 400mm x 105mm



Applications:



Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers …

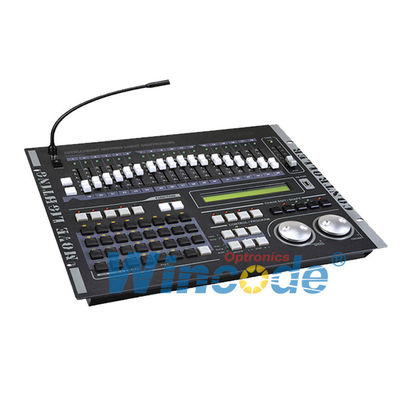

Dmx512 Led Controller With 62 Intelligent Fixtures , Dj Light Controller For Night Club 0



Wincode Optronics to provide the following professional services:

1. Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
2. Structure Designs: Pro/E--Parts--assembly drawing--Prototype
3. Integrated Circuit Design:
4. Software Design:
5. Undertake domestic and international OEM, ODM,manufacturing.

6. Accept customized products order.
