12 Channel Digital Dimmer Pack For Led Lights , Stage Lighting Dimmer Packs CE Approved

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Wincode Optronics
Certification: CE/ROHS/UL/FCC/SGS
Model Number: WOP-DK1216
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Item: 12 Channels Digital Dimmer Pack Channels: 12 Channels
Standard: DMX512/1990 Fuse: 16A Each Channel
High Light:

Led Dmx Controller

,

Dmx512 Light Controller


Product Description

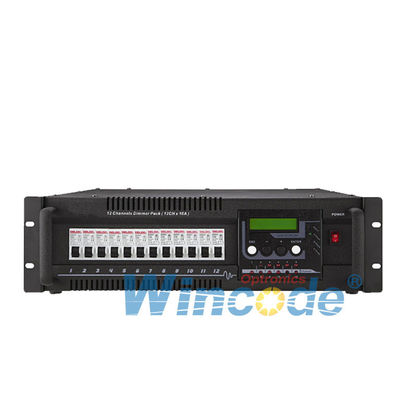

WOP-DK1216 12 Channels Digital Dimmer Pack / Power Supply Control System For Stage Lighting Show





Description:

WOP-DK1216 12 Channels Digital Dimmer Pack is an intelligent dimmer pack for stage lighting show, concert, show power supply control system.





Specification:




12 channel digital dimmer,16A per channel / DMX512/1990 standard.


Magnetic ring with a high anti-jamming, excellent anti-jamming capability of audio/ video almost no interference.


Switch insurance, with over-current automatic shutdown protection.


When DMX512 signal is broken off, every channel's output can be hold.


High precision zero-crossing sampling, the output consistency of channels is better.


9 dimming curves: Every channel is chosen independently.


PreHEAT adjustable to every channel.


It can store 9 scenes that can be preset, manual dimming independently without any console.


Power-down data retention, boot soft start to prevent the boot transient output.


Electrical automatically adapt the original frequency, range: 45 ~ 65Hz.



Power supply: Tri-phase or mono-phase operation: AC220V±10%, 45 ~ 65Hz.


LCD display with backlight.


Size: 485mm x 485mm x 145mm



Applications:



Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers …

12 Channel Digital Dimmer Pack For Led Lights , Stage Lighting Dimmer Packs CE Approved 0



Wincode Optronics to provide the following professional services:

1. Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
2. Structure Designs: Pro/E--Parts--assembly drawing--Prototype
3. Integrated Circuit Design:
4. Software Design:
5. Undertake domestic and international OEM, ODM,manufacturing.

6. Accept customized products order.



Product Show





12 Channel Digital Dimmer Pack For Led Lights , Stage Lighting Dimmer Packs CE Approved 1
