| Place of Origin: | Guangzhou, CN |
|---|---|
| Brand Name: | Wincode Optronics |
| Certification: | CE/ROHS |
| Model Number: | WOP-BEAM230 |
| Minimum Order Quantity: | 12 |
| Price: | Negotiable |
| Packaging Details: | Carton box with shaped foam, paid flight case available |
| Delivery Time: | 5-8 business days |
| Payment Terms: | T/T, Western Union,Trade Assurance |
| Supply Ability: | 2000 pcs per month |
| Lamp: | 230W YODN/Osram/ | Flight Case Packing: | 690*430*880mm(2 In 1) |
|---|---|---|---|
| Carton Packing: | 535*400*410mm(1 In 1) | Heat Protection: | One 85℃ Over Heat Protection Thermostat |
| Optical Device: | Three Lens Group, 0°-39° Zoom | Electronic Focus: | 20 Meters,5000 LUX |
| High Light: | Dmx Moving Head Lights,Moving Head Spot Light |
||

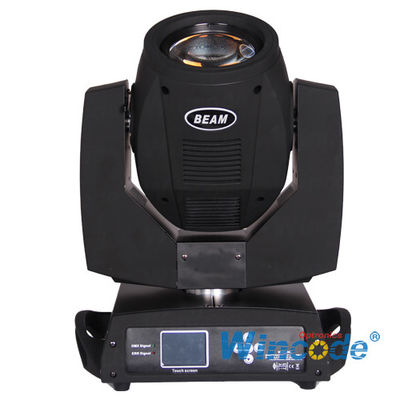

DMX512 Sharpy Beam 230 7R Moving Stage Lights AC110-360V 50/60 Hz
POWER SUPPLIE
Input power:AC110-360V 50/60 Hz
LAMP SOURCE
Discharge lamp with a short arc burner in a reflector system
– Type: Optional YODN MSD Platinum R7 230W
Osram Siruis HRI 230W
– Output Lamp power: 200W/230W
– Color temperature: 8,500 K
– Average life: 2,000 h
OPTICS
3-lens optical group combination
Focus: electronic
Light output at 20 meters (65 feet): 59,760 lux
> Power supply: AC110V-250V
> Frequency: 50-60Hz
> Power consumption: 280W
> Optical Device: three lens group, 0°-39° zoom
> Dimmer: 0~100% full range dimming
> Electronic Focus: 20 meters,5000 LUX
> Foggy: 0%-100% linear foggy
> Heat protection: one 85℃ over heat protection thermostat
> Working temperature: -10℃-45℃ maximum
> Control channels: 16 chs
> Control mode: DMX512, master/slave
> Cooling: low noise fan
> Operation menu: LCD screen display
| Price term | EXW price |
| Payment terms | TT/Paypal/Western union and others |
| Shipping Way | 1. by Express ( DHL, Fedex, Ups, EMS) 2. by Air 3. by Sea |
| Sample time | 1-3 business days |
| Production time | 5-20 days, but ultimately subject to order quantity |
| Packing | 1. Using EPE packing the goods in case damage 2. Then put it into the Standard carton 3. Flightcase optional |
| Warranty | 1 year |
| After-sell Service | 1.If there is a problem with the product, please describe it and sent the necessary picture or video to us for analyzing. 2. Then we will guide you how to fix it and provide free accessories if needed. 3. For big problem,you can send the products to our factory,then we will send a new one to you! |
