Super Bright 18R 380W Beam Moving Head Light With 2 Rotated Prisms

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Wincode Optronics
Certification: CE/ROHS/UL/FCC/SGS
Model Number: WOP-M380
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detail Information
Lamp: MSD Platinum 18R Function: Super Beam
Color Temperaturte: Color Temperature: 7,800K Heat Protection: One 85℃ Over Heat Protection Thermosta
Motor: 3-phase Motors Static Gobo Wheel: 17 Gobos + Open
Color Wheel: 14 Colors + Open Prism 1: 8 Facet Prism Rotating In Both Directions
Prism 2: 8+16+24 Facet Prism Rotating In Both Directions Channels: 16/20
High Light:

Dmx Moving Head Lights

,

Moving Head Spot Light


Product Description

Super Bright 18R 380W Beam Moving Head Light With 2 Rotated Prisms



Quick detail:



- Light source: MSD 380W 18R



- Heat protection: one 85℃ over heat protection thermostat



- Pan movement: 540 degrees, 8bit/16bit adjustable, electronic correction


- Tilt movement: 270 degrees, 8bit/16bit adjustable, electronic correction


- Strobe: double-plate dimming, flash 1-13/s,speed controllable



- Cooling: low noise fan



- Optical Lens Group:three lens group





Description:



WOP-Beam380 is equipped with 1 YODN 380W R18 discharge-lamp. Advanced optical lens group to make 2° parallel super beam. Gobos, colors, 2 prims to make amazing effects for theatrical show, night club, TV show….

WOP-Beam380 18R 380W Beam Moving Head Light
Voltage: AC 100~240V, 50/60Hz
Max Power Consumption: 600W
Light source: YODN 380W R18
Beam angle:
Pan movement: Max 540°, with pan fine
Tilt movement: Max 270°, with tilt fine
Pan/Tilt : Automatic Correction
Color Wheel: 14 colors + open with Split colors and Rainbow effect
Gobo Wheel(fixed) 17 gobos + open, Rainbow effect+Gobo shake
Prism 1: 8-face prism rotating in both directions
Prism 2: 8+16+24 faces prism rotating in both directions
Focus: 0-100% Motorized focus
Dimmer: 0-100% Mechanical linear dimming
Strobe: 0-13times/second
Frost: 100% frost
Control mode: DMX, Master/slave, Sound active, Standalone
Channel mode.: 16/20
Display LCD Display
Fixture Size: 365x290x590mm
Carton Size: 480x480x590mm 1pcs/ctn
Net Weight.: 25.0KG
Gross Weight.: 26.0Kgs





Super Bright 18R 380W Beam Moving Head Light With 2 Rotated Prisms

Places to Use:



Where is occasion like these: Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party,



dance hall, theatre, studio, casino and other entertainment centers,where will need our lights.



After-sales Service:



If there is any problem with the products, firstly you need to send the picture or the video to us,


then let us make sure what's problem about the product, we will try our best to help you .


As for a big problem which the part was broken that can be maintained within the scope of the warranty,



we will offer you the replacement for free within 12 months.



Competitive Advantage:



  • Good cooling system.
  • Clear pattern, high brightness.
  • Fast and quiet scanning. (Noiseless)
  • Over 15years of Stage Lighting Series experience as professional stage lighting manufacturer and supplier.
  • Over 10years of export experience as professional stage lighting manufacturer and supplier.
  • Strict quality control department, reliable quality.
  • Provide cost-effective products.
  • Professional sales team to provide perfect service.
  • We always respect our customers' copyright or business secrets.
  • Wholesale price, cost-effective

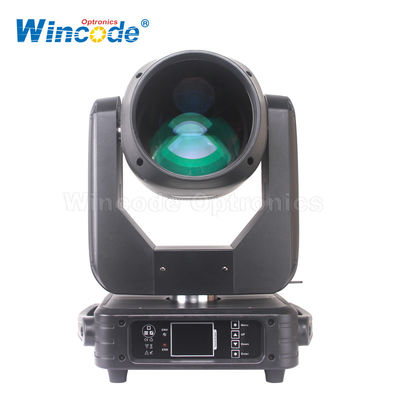

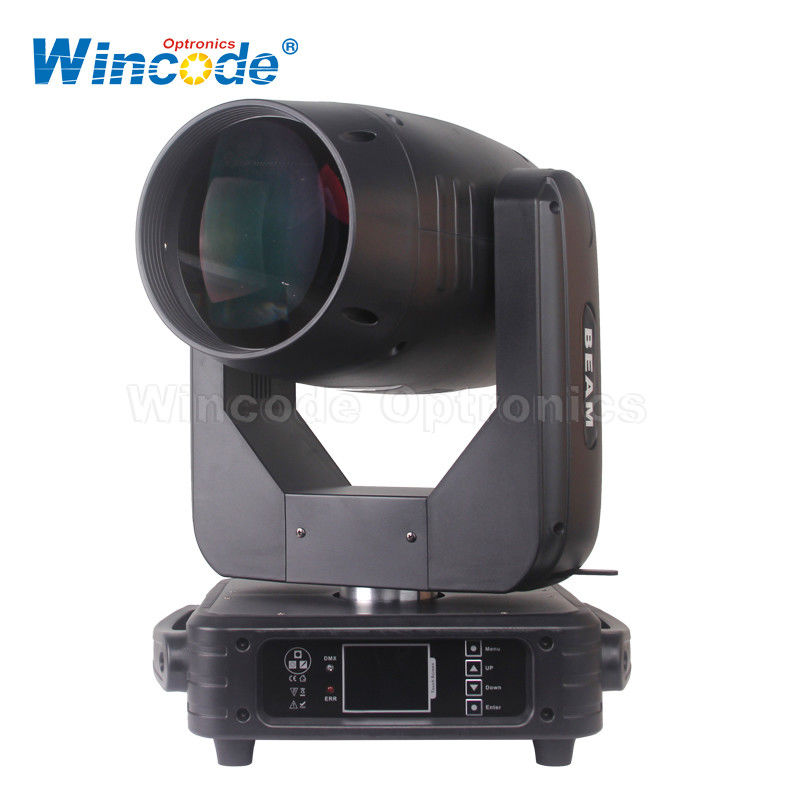

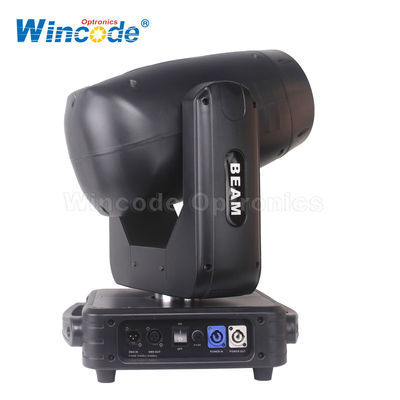

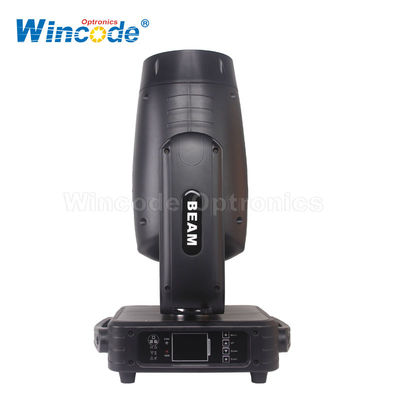

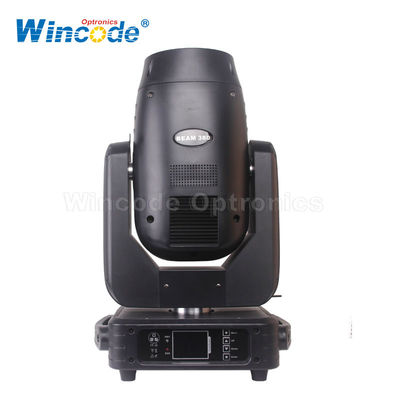

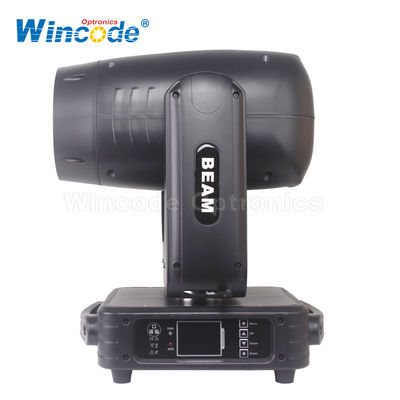

Product Show:









Super Bright 18R 380W Beam Moving Head Light With 2 Rotated Prisms

Super Bright 18R 380W Beam Moving Head Light With 2 Rotated Prisms
