| Place of Origin: | Guangdong |
|---|---|
| Brand Name: | Wincode Optronics |
| Certification: | CE/ROHS |
| Model Number: | WOP-OPS18186 |
| Minimum Order Quantity: | 2 pcs |
| Price: | negotiation |
| Packaging Details: | Exported carton box / flight case |
| Delivery Time: | 3-5 working days after received your payment |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/month |
| Product: | 18*18W 6 In 1 Outdoor LED Par Light | Light Source: | 18 Pcs 18W RGBWA+UV 6 In 1 LEDs |
|---|---|---|---|
| Channels: | 6/8 | Beam Angle:: | 15°,25°,35°,45° Optional |
| Dimming:: | From 0-100% Electronic Dimming | IP Rate: | Ip65 |
| Material: | Aluminum Die-casting | Control Mode: | DMX-512, Standalone, Master/slave, Sound Active |
| Application: | Hotel, Architecture, Building UP Lighting | ||
| High Light: | Led Par Can,Stage Effect Lighting |
||

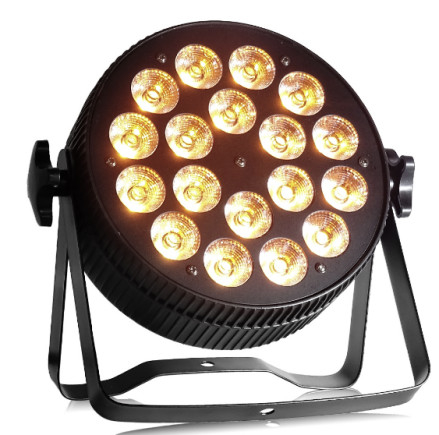

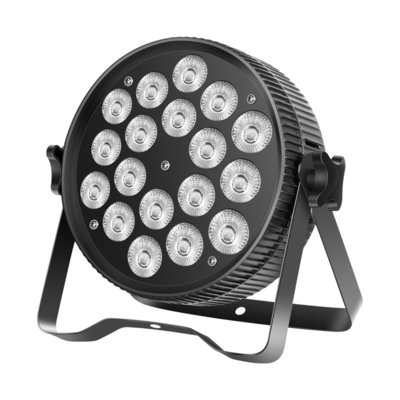

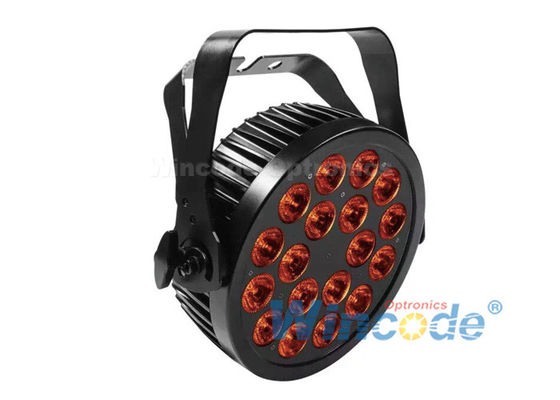

18 LEDs Outdoor IP65 LED Slim Par , LED Flat Par Light With DMX Control
Quick Look:
Model : WOP-OPS18186
Power supply:100-240
voltage/50-60Hz
Power consumption:300W
Light source:18pcs 18W RGBWA+UV 6 in 1 LEDs
Place of original: Guangzhou, China
Period of warranty: 1 year
Operation Menu: Digital display
Description:
WOP-OPS12186 7*18W 6 in 1 Water Proof LED Par Light is equipped with 12 pieces 18W RGBWA +UV 6 in 1 LEDs; 15°,25°,35°,45° Lens optional; use constant current power supply. constant current LED driver, 32bit MCU with ARM Cortexl. 6/8 DMX Channels with 16bit PWM Dimming, HDTV Video Flicker Free, Aluminum die-casting, water proof IP65. WOP-OPS12186 is fashionable styled streamline appearance, small, beautiful, easy installation. Suitable for night club, night bar, disco, KTV, Wedding, Church, Theatre, Studio…Specially for outdoor use, IP65 Water Proof
Specification:
| WOP-OPS18155 | 18pcs 15W 5in1(RGBAW) LEDs | |
| WOP-OPS18186 | 18pcs 18W 6in1(RGBAW+UV) LEDs | |
| Voltage Input: | 100-240V AC, 50/60Hz | Features: . 16bit PWM Dimming . HDTV Video Flicker Free . 2 DMX Channel Modes . Protocol RDM Compatible . Working Temperature Monitoring . Over-temperature Protection . Intelligent Cooling System . LED Display Menu On/Off . Sound Active Mode . Preset Colors. . Built-in Auto and Fade Program . PowerCon AC power In/Out Socket for IP33 . IP65 AC power In/Out Cable for IP65 . IP65 3-pin DMX In/Out Cable for IP65 |
| LED Type: | TianXin 4in1/5in1/6in1 LEDs | |
| Beam Angle: | 25 °/45 °/60 ° | |
| Optical Lens Size: | 29mm | |
| Protocol: | USITT DMX-512, RDM compatiable | |
| DMX Channel Mode: | 4/7 or 5/9 or 6/10 | |
| Control Mode: | DMX-512, Standalone, Master/slave, Sound active | |
| Dimmer Mode: | Linear Dimming | |
| PWM Dimming: | 16bit PWM Dimming at 1000HZ | |
| Body Material: | Aluminum Die-casting | |
| Waterproo Grade: | IP65 Outdoor / IP33 indoor | |
| Product Size | 215x215x120mm | |
| Net Weight.: | 6.5Kgs | |
| Carton Size.: | 530x530x310mm 4pcs/carton | |
| Gross Weight.: | 27Kgs | |
Accessories
Cautions
Customerized Acceptable: Different apprearance design, Different angle optical lens, different effects: beam, wash, zoom...Also We have RGBAW+UV+Lim 7 in 1 LED source for lighting. If you need any customerized products kindly please contact with us.
Applications:
Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers …
