150W LED Panel Light CRI 95 Dual Power DMX Control Silent Operation

150W LED Panel Light CRI 95 Dual Power DMX Control Silent Operation

Brand Name:	Wincode Optronics
Model Number:	WOP-STPANEL150
MOQ:	2 pcs
Price:	negotiation
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	1000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CE/ROHS

Item:

150W LED CRI95 Panel Light

Max Power Consumption::

150W

Lamp Source::

720Pcs

Beam Angle::

120°

Adjustable Color:

3200K～5600K

Color Rendering Index::

CRI 95

Dimming:

4 Dimming Curves Optional

DMX Connectors:

DMX 3pins Female Or Male Socket

Power Connector:

Power Connector In/out

Cover Flip:

4 Pcs Barn Door

Packaging Details:

Exported carton box / flight case

Highlight:

Led Flood Light

LED RGB Panel Light

Product Description

150W LED Panel Light CRI 95 Dual Power DMX Control Silent Operation

A 120° beam angle delivers even coverage for large stages, cycloramas, or conference halls. Eliminate hotspots and shadows in golf simulators or virtual sets, reducing fixture counts. Combine with barn doors to balance broad washes and focused accents, ideal for multi-use venues prioritizing versatility.

Parameter Table:

Product Name	150W/100W Studio panel light with barn door (smalll housing shell)
Voltage	AC100~230V, 50-60 Hz
Power	150W/ 100W
Light Source	480pcs*0.5W 2835 LED; warm+white LED, 3200K--240pcs/ 5600K---240pcs
Color Temperature	3200K～5600K adjustable. The rated power will not decrease after the color temperature is selected, and the selected color temperature will not change when adjusting the brightness
Color rendering	CRI 95
Beam Angle	120°
Dimming	16Bits electronic linear dimming 0～100%, no glare, 16k/Hz dimming frequency; fine dimming function; four dimming curves are optional;
Control Mode	international standard DMX512, manual adjustment,RDM
Power connection	power connector in/out
Control signal	DMX 3pins female or male socket

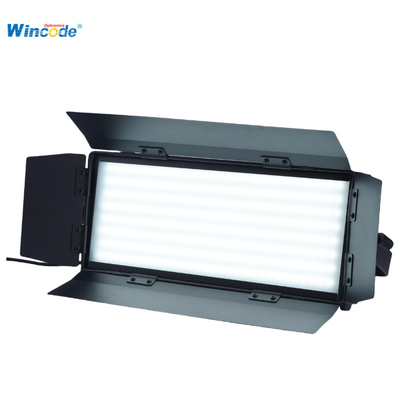

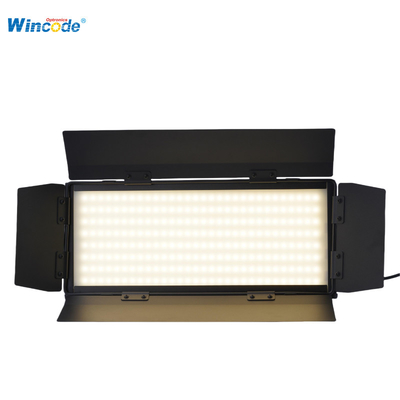

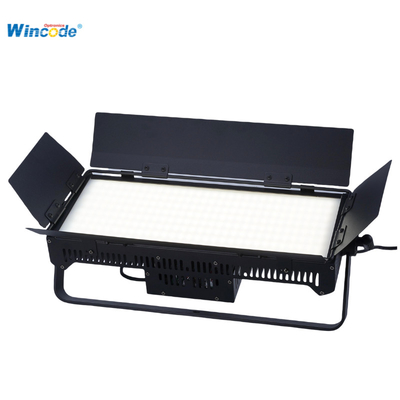

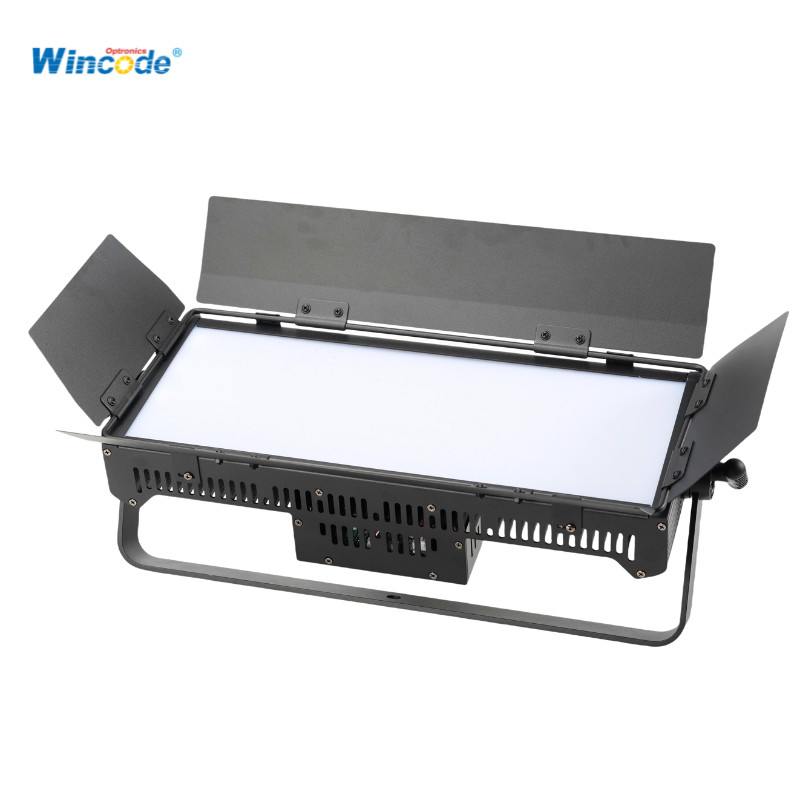

Product Show:

150W LED Panel Light CRI 95 Dual Power DMX Control Silent Operation 0

150W LED Panel Light CRI 95 Dual Power DMX Control Silent Operation 1

150W LED Panel Light CRI 95 Dual Power DMX Control Silent Operation 2

150W LED Panel Light CRI 95 Dual Power DMX Control Silent Operation 3

150W LED Panel Light CRI 95 Dual Power DMX Control Silent Operation 4

Application:

The scope of film and television, theater, live events, trade show exhibits, educational facilities, retail environments, and corporate shows, etc.

The scope of major television, HD studio, intelligent HD video conference room, HD intelligent studio, the surface light, top light, side light of multi-function hall, etc.

Project Cases:

150W LED Panel Light CRI 95 Dual Power DMX Control Silent Operation 5

150W LED Panel Light CRI 95 Dual Power DMX Control Silent Operation 6

150W LED Panel Light CRI 95 Dual Power DMX Control Silent Operation 7

150W LED Panel Light CRI 95 Dual Power DMX Control Silent Operation 8

Wincode Optronics is specialized in optical visual system,including stage lighting, led series display, commercial led lighting and the control system. From regular products to personalize customization, we are always the helpfull and effecient partner of our honest clients of design&installation contractors and equipment rental,with professional experience,being intelligent in communication and product understanding,we alway respond fast to your inquiry.
