54 x 3W Outdoor Waterproof IP65 DMX Zoom LED Par Light Liner Dimming

54 x 3W Outdoor Waterproof IP65 DMX Zoom LED Par Light Liner Dimming

Brand Name: Wincode Optronics
Model Number: WOP-OPZ5403RGBW
MOQ: 2 pcs
Price: negotiation
Payment Terms: T/T,L/C,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE/ROHS
Product:
54 X 3W LED Zoom Par Light
Light Source:
54 X 3W RGBW LEDs
Channels:
13 Channels
Zoom Angle:
Motorized Linear Zoom From 8°to 50°
Control Mode:
DMX512, Master-slave And Sound Activated Or Auto Operation
Cooling System::
Natural Air Convection Heat Transfer
Material:
Aluminum Die-casting
Packaging Details:
Exported carton box / flight case
Highlight:

Stage Effect Lighting

,

Wireless Led Uplighting

Product Description

54 x 3W Outdoor Waterproof IP65 DMX Zoom LED Par Light Liner Dimming

54 x 3W Outdoor Waterproof IP65 DMX Zoom LED Par Light Liner Dimming 0


Brief:


Model : WOP-OPZ5403RGBW

Power supply: AC110V-250V
Frequency: 50-60HzPower Consumption: 210W
Light Source: 54PCS 3W LEDs (R, G, B, W).

Place of original: Guangzhou, China

Period of warranty: 1 year

Operation Menu: LED display



Specification:


WOP-OPZ5403RGBW 54 x 3W RGBW Waterproof LED Zoom Par
Voltage Input: 100-240V AC, 50/60Hz Features:

. 16bit PWM Dimming
. HDTV Video Flicker Free
. 13 DMX Channel
. Protocol RDM Compatible
. Working Temperature Monitoring
. Over-temperature Protection
. Intelligent Cooling System
. LED Display Menu On/Off
. Sound Active Mode
. Preset Colors.
. Built-in Auto and Fade Program
. PowerCon AC power In/Out Socket for IP33
. IP65 AC power In/Out Cable for IP65
. IP65 3-pin DMX In/Out Cable for IP65
LED Type: 3W RGBW LEDs
Beam Angle: 25 °/45 °/60 °
Optical Lens Size: 29mm
Protocol: USITT DMX-512, RDM compatiable
DMX Channel Mode: 13
Zoom Angle: Motorized linear zoom from 8°to 50°
Control Mode: DMX-512, Standalone, Master/slave, Sound active
Dimmer Mode: Linear 0-100%
PWM Dimming: 16bit PWM Dimming at 1000HZ
Body Material: Aluminum Die-casting
Waterproo Grade: IP65 Outdoor
Product Size 290X280X350mm
Net Weight.: 5.5Kgs
Carton Size.: 350×350×400mm 1pcs/carton
Gross Weight.: 10.5Kgs


Accessories

  • Power Cable: 2 pieces of connected power cable(power in & out)
  • DMX Signal line: 2 pieces of connected DMX cable(DMX in & out)
  • Users manual: 1 pcs
  • Power cable plug: 1 on free each 8 pcs of the light
  • DMX line adapter: 1 on free each 8 pcs of the light



Cautions

  • Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!
  • Unplug mains lead before opening the housing!
  • To prevent fire or shock hazard,do not expose this fixture to rain or moisture!
  • This fixture must be earthed!
  • Do no try to repair it when the circuit is out of order, send it back to your supplier to repair!


Customerized Acceptable: Different apprearance design, Different angle optical lens, different effects: beam, wash, zoom...

Also We have RGBAW+UV+Lim 7 in 1 LED source for lighting. If you need any customerized products kindly please contact

with us.



Product Show:

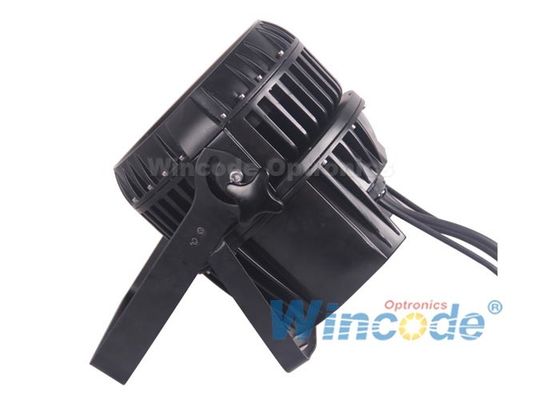

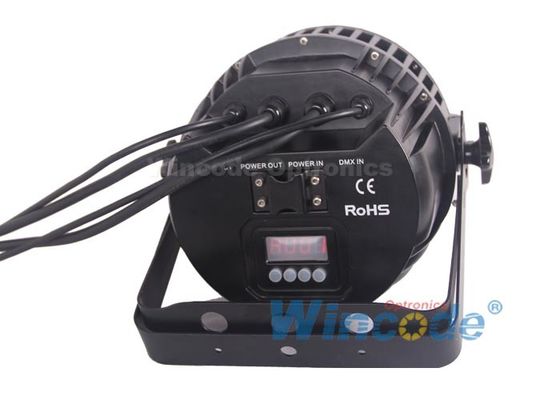

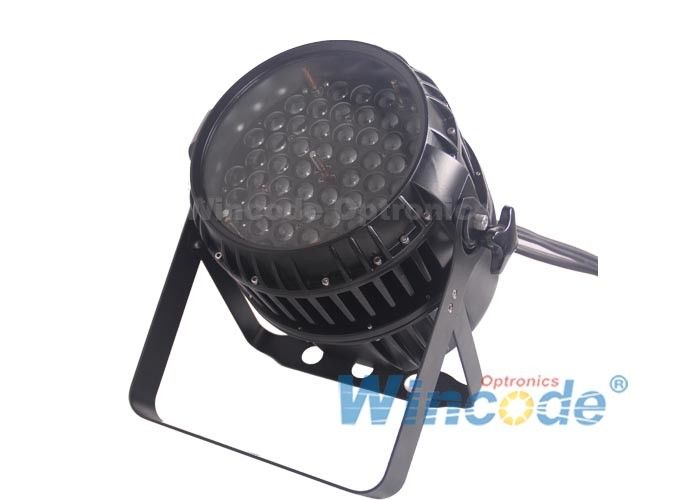

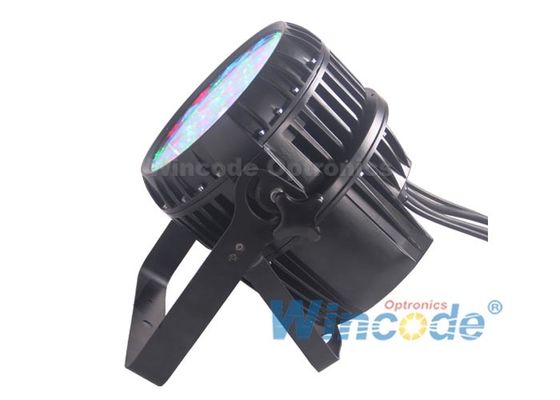

54 x 3W Outdoor Waterproof IP65 DMX Zoom LED Par Light Liner Dimming 1

54 x 3W Outdoor Waterproof IP65 DMX Zoom LED Par Light Liner Dimming 2

Applications:


Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall,

theatre, studio and other entertainment centers …

54 x 3W Outdoor Waterproof IP65 DMX Zoom LED Par Light Liner Dimming 3

54 x 3W Outdoor Waterproof IP65 DMX Zoom LED Par Light Liner Dimming 4
