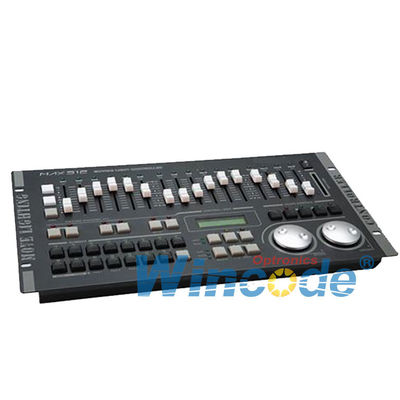

WOP-MAX512 512 Channels Moving Light DMX512 Controller For Moving Head Light Show

Description:

WOP-MAX512  MAX512 Moving Light DMX Contoller  is one moving head light console with 512 channels,

Output port with optical isolated. Up to 30 intelligent Fixtures may be connected with a maximum of 32

channels each. Uses can allocate DMX channel to each intelligent Fixture dynamically.

Specification:

MAX512 MOVING LIGHT CONTROLLER

DMX512/1990 standard, 512 DMX channels, output with optical isolated.

Up to 30 intelligent Fixtures may be connected with a maximum of 32 channels each.

Uses can allocate DMX channel to each intelligent Fixture dynamically.

The X/Y channel of different intelligent Fixtures can be controlled by modulation Wheel.

Up to 50 SHAPE generators. SHAPE track control is provided to control such effects as circles, lines and shapes like 8, etc.

30 Chases, up to 100 Steps each. Trigger mode selectable: Music synchronously, Auto, Manual speed.

6 Chases, 30 Scenes operated at the same time. At most 30 intelligent Fixtures can be selected simultaneously.

Flash mem-card slot is provided. each Flash mem-card can record the whole data of controller,
LCD display with backlight.

Power supply: AC 90-250V / 50-60Hz

Size: 485mm x 267mm x 85mm

Wincode Optronics to provide the following professional services:

1. Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
2. Structure Designs: Pro/E--Parts--assembly drawing--Prototype
3. Integrated Circuit Design:
4. Software Design:
5. Undertake domestic and international OEM, ODM,manufacturing.

6. Accept customized products order.

Product Show

Applications:

Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party,

dance hall, theatre, studio and other entertainment centers …
