Led Dmx Controller 2048 Channels / Stage Light Controller For Pearl Fixture Library

WOP-XP5000 2048 Channels Moving Light DMX Controller / Stage Lighting DMX Console

Description:

WOP-XP5000 2048 Moving Light DMX Controller  is one moving head light console with 2048 channels, Output port with optical isolated. Up to 240 intelligent Fixtures or 240 Dimmer may be connected. Up to 42 channels each Fixture. Fixture Library mode, "pearl" Fixture Library compatible.

Specification:

2048 DMX channels, DMX512/1990 standard, Output port with optical isolated.

Up to 240 intelligent Fixtures or 240 Dimmer may be connected.

Up to 42 channels each Fixture. Fixture Library mode, "pearl" Fixture Library compatible.

600 Playback program, 200 Group, 210 Preset, 100 Snapshot.

with a playback of the list display, Users can view and write playback list.

100 Scene-snapshots can be directly used keys running (flash or latch).

with attribute fader of fixture (including dimmer, shutter, magenta, yellow and cyan). Used to quickly control the LED fixture.

Up to 180 SHAPE generators. SHAPE is provided to control such effects as circles, lines and dimmer effect, etc.

Chase trigger mode selectable: Auto1, Auto2, Music synchronously and MIDI.

USB port is provided. USB-disk can record the data of controller, Controller can be upgraded through the USB port.

1 VGA port, user can connect it to the colorful CRT or LCD displays (OPTIONAL).

LCD display with backlight.

12V accessory operate light (OPTIONAL).

Power supply: AC 110-240V / 50-60Hz

Size: 820mm x 540mm x 175mm

Wincode Optronics to provide the following professional services:

1. Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
2. Structure Designs: Pro/E--Parts--assembly drawing--Prototype
3. Integrated Circuit Design:
4. Software Design:
5. Undertake domestic and international OEM, ODM,manufacturing.

6. Accept customized products order.

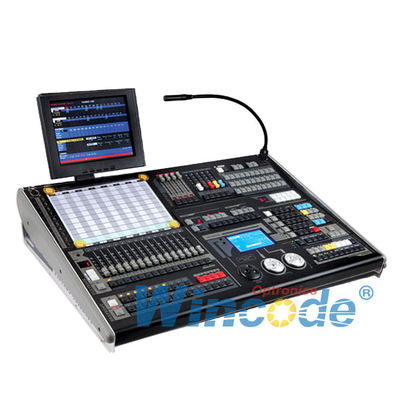

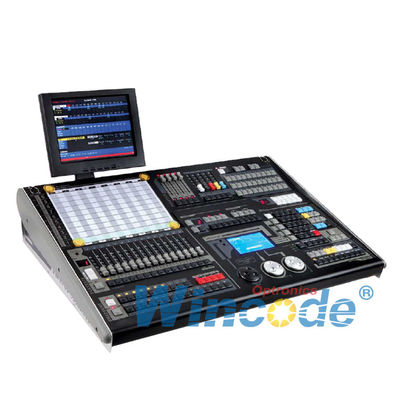

Product Show

Applications:

Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, and other entertainment centers …
