DMX512 Control LED Par Light 12*10W 25 °/45 °/60 ° Beam Angle For Stage Show

Basic Information
Place of Origin: Guangdong
Brand Name: Wincode Optronics
Certification: CE/ROHS
Model Number: WOP-OPS12104
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Product: 12*10W 4 In 1 Outdoor LED Par Light Light Source: 12 Pcs 10W RGBW 4 In 1 LEDs
Channels: 6/8 Beam Angle:: 15°,25°,35°,45° Optional
Dimming:: From 0-100% Electronic Dimming IP Rate: Ip65
Material: Aluminum Die-casting Control Mode: DMX-512, Standalone, Master/slave, Sound Active
Application: Hotel, Architecture, Building UP Lighting
High Light:

Stage Effect Lighting

,

Wireless Led Uplighting


Product Description

IP65 Aluminum Die-casting Waterproof LED Wash Uplight For Stage Lighting Show



Quick Look:



Model : WOPS12104

Power supply:100-240

voltage/50-60Hz
Power consumption:80W
Light source:12pcs 10W RGBW 4 in 1 LEDs

Place of original: Guangzhou, China

Period of warranty: 1 year

Operation Menu: Digital display





Description:



WOP-OPS12104 12*10W 4 in 1 Water Proof LED Par Light is equipped with 12 pieces 10W RGBW 4 in 1 LEDs; 15°,25°,35°,45° Lens optional; use constant current power supply. constant current LED driver, 32bit MCU with ARM Cortexl. 6/8 DMX Channels with 16bit PWM Dimming, HDTV Video Flicker Free, Aluminum die-casting, water proof IP65. WOP-OPS12104 is fashionable styled streamline appearance, small, beautiful, easy installation. Suitable for night club, night bar, disco, KTV, Wedding, Church, Theatre, Studio…Specially for outdoor use, IP65 Water Proof





Specification:



WOP-OPS12104 12pcs 10W 4in1(RGBW) LEDs
WOP-OPS12155 12pcs 15W 5in1(RGBAW) LEDs
WOP-OPS12186 12pcs 18W 6in1(RGBAW+UV) LEDs
Voltage Input: 100-240V AC, 50/60Hz Features:

. Constant Current Driver
. 32bit MCU with ARM Cortex
. 4 Dimmer Modes
. 16bit PWM Dimming
. HDTV Video Flicker Free
. 4 DMX Channel Modes
. Protocol RDM Compatible
. Working Temperature Monitoring
. Over-temperature Protection
. Fanless and Quiet Working
. LED Display Menu On/Off
. Sound Active Mode
. Preset Colors.
. Built-in Auto and Fade Program
. PowerCon AC power In/Out for Indoor
. IP65 AC power In/Out for Outdoor
. 3-pin XLR DMX In/Out for Indoor
. IP65 3-pin DMX In/Outfor Outdoor
LED Type: TianXin 3in1/4in1/5in1/6in1 LEDs
Beam Angle: 25 °/45 °/60 °
Optical Lens Size: 29mm
Protocol: USITT DMX-512, RDM compatiable
DMX Channel Mode: 4/6/9/3 or 5/7/10/3 or 6/8/11/3
Control Mode: DMX-512, Standalone, Master/slave, Sound active
Dimmer Mode: 4 Linear or Curver Dimmer Modes
PWM Dimming: 16bit PWM Dimming at 1000HZ
Body Material: Aluminum Die-casting
Waterproo Grade: Indoor or IP65 Outdoor for option
Product Size 215x215x120mm
Net Weight.: 4.5Kgs
Carton Size.: 530x530x310mm 4pcs/carton
Gross Weight.: 23Kgs



Accessories

  • Power line: 1 piece of connected power line(power in & out optional)
  • DMX Signal line: 1 piece of 1m DMX line can be offered(need to stress it)
  • Users manual: 1 sheet





Cautions

  • Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!
  • Unplug mains lead before opening the housing!
  • To prevent fire or shock hazard,do not expose this fixture to rain or moisture!
  • This fixture must be earthed!
  • Do no try to repair it when the circuit is out of order, send it back to your supplier to repair!



Customerized Acceptable: Different apprearance design, Different angle optical lens, different effects: beam, wash, zoom...Also We have RGBAW+UV+Lim 7 in 1 LED source for lighting. If you need any customerized products kindly please contact with us.



Applications:



Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers …

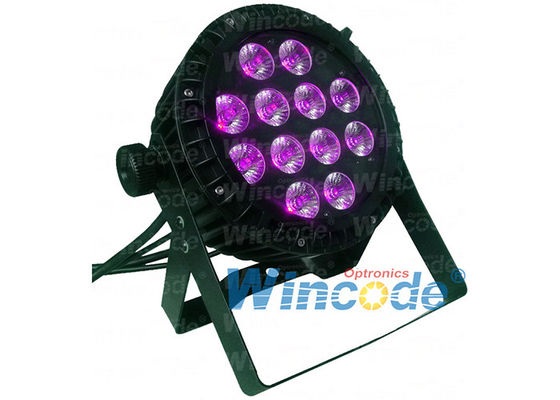

DMX512 Control LED Par Light 12*10W 25 °/45 °/60 ° Beam Angle For Stage Show 0

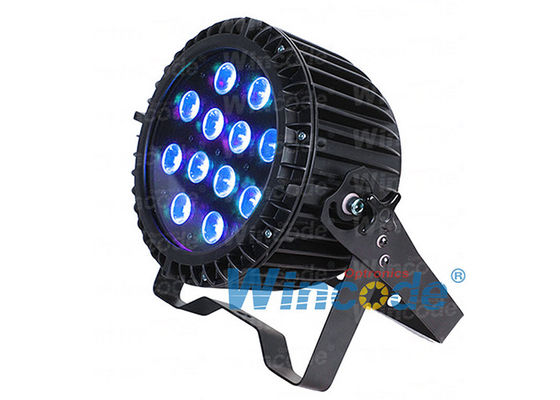

DMX512 Control LED Par Light 12*10W 25 °/45 °/60 ° Beam Angle For Stage Show 1



Product Show:

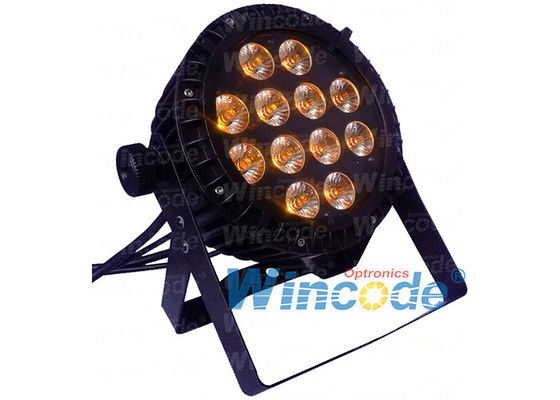

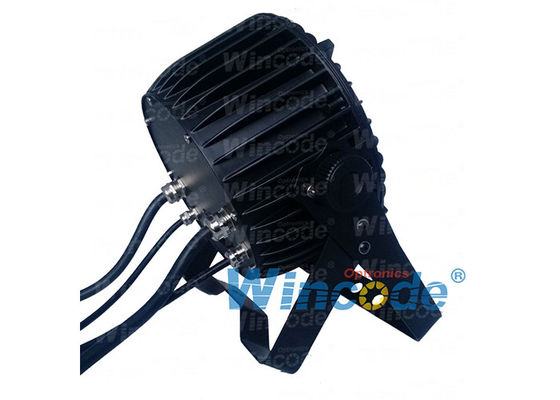

DMX512 Control LED Par Light 12*10W 25 °/45 °/60 ° Beam Angle For Stage Show 2

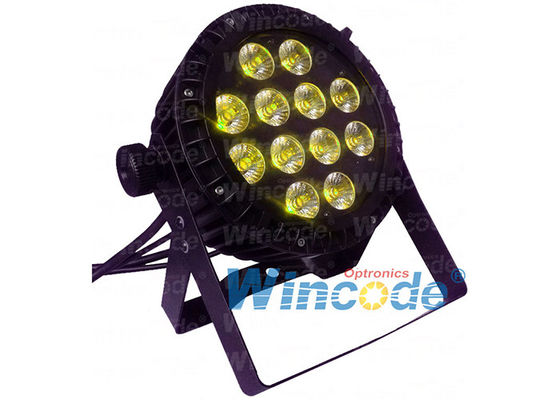

DMX512 Control LED Par Light 12*10W 25 °/45 °/60 ° Beam Angle For Stage Show 3
