Blizzard Lighting LED Par Light Tough Stage QUAD 7x18W 0 - 100% Electronic Dimming

Basic Information
Place of Origin: Guangdong
Brand Name: Wincode Optronics
Certification: CE/ROHS
Model Number: WOP-OPS7186
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Product: 7*18W 6 In 1 Outdoor LED Par Light Light Source: 7 Pcs 18W RGBWA+UV 6 In 1 LEDs
Channels: 6/8 Beam Angle:: 15°,25°,35°,45° Optional
Dimming:: From 0-100% Electronic Dimming IP Rate: Ip65
Material: Aluminum Die-casting Control Mode: DMX-512, Standalone, Master/slave, Sound Active
Application: Hotel, Architecture, Building UP Lighting
High Light:

Stage Effect Lighting


Wireless Led Uplighting

Product Description

Blizzard Lighting Tough Stage Par QUAD IP65 Rated 7x18W RGBWAUV 6 IN1 Outdoor Waterproof LED Flat Par Can


Quick Look:


Model : WOPS7186

Power supply:100-240

Power consumption:80W
Light source:7pcs 18W RGBWA+UV 6 in 1 LEDs

Place of original: Guangzhou, China

Period of warranty: 1 year

Operation Menu: Digital display





WOP-OPS7186 7*18W 6 in 1 Water Proof LED Par Light is equipped with 7 pieces 18W RGBWA +UV 6 in 1 LEDs; 15°,25°,35°,45° Lens optional; use constant current power supply. constant current LED driver, 32bit MCU with ARM Cortexl. 6/8 DMX Channels with 16bit PWM Dimming, HDTV Video Flicker Free, Aluminum die-casting, water proof IP65. WOP-OPS7186 is fashionable styled streamline appearance, small, beautiful, easy installation. Suitable for night club, night bar, disco, KTV, Wedding, Church, Theatre, Studio…Specially for outdoor use, IP65 Water Proof





WOP-OP18104 18pcs 10W 4in1(RGBW) LEDs
WOP-OP18155 18pcs 15W 5in1(RGBAW) LEDs
WOP-OP18186 18pcs 18W 6in1(RGBAW+UV) LEDs
Voltage Input: 100-240V AC, 50/60Hz Features:

. 16bit PWM Dimming
. HDTV Video Flicker Free
. 4 DMX Channel Modes
. Protocol RDM Compatible
. Working Temperature Monitoring
. Over-temperature Protection
. Intelligent Cooling System
. LED Display Menu On/Off
. Sound Active Mode
. Preset Colors.
. Built-in Auto and Fade Program
. PowerCon AC power In/Out Socket for IP33
. IP65 AC power In/Out Cable for IP65
. IP65 3-pin DMX In/Out Cable for IP65
LED Type: TianXin 4in1/5in1/6in1 LEDs
Beam Angle: 25 °/45 °/60 °
Optical Lens Size: 29mm
Protocol: USITT DMX-512, RDM compatiable
DMX Channel Mode: 4/6/9/3 or 5/7/10/3 or 6/8/11/3
Control Mode: DMX-512, Standalone, Master/slave, Sound active
Dimmer Mode: 4 Linear or Curver Dimmer Modes
PWM Dimming: 16bit PWM Dimming at 1000HZ
Body Material: Aluminum Die-casting
Waterproo Grade: IP65 Outdoor
Product Size 215X280X320mm
Net Weight.: 5.5Kgs
Carton Size.: 590x300x350mm 2pcs/carton
Gross Weight.: 12Kgs



  • Power line: 1 piece of connected power line(power in & out optional)
  • DMX Signal line: 1 piece of 1m DMX line can be offered(need to stress it)
  • Users manual: 1 sheet




  • Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!
  • Unplug mains lead before opening the housing!
  • To prevent fire or shock hazard,do not expose this fixture to rain or moisture!
  • This fixture must be earthed!
  • Do no try to repair it when the circuit is out of order, send it back to your supplier to repair!


Customerized Acceptable: Different apprearance design, Different angle optical lens, different effects: beam, wash, zoom...Also We have RGBAW+UV+Lim 7 in 1 LED source for lighting. If you need any customerized products kindly please contact with us.




Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers …

Blizzard Lighting LED Par Light Tough Stage QUAD 7x18W 0 - 100% Electronic Dimming 0

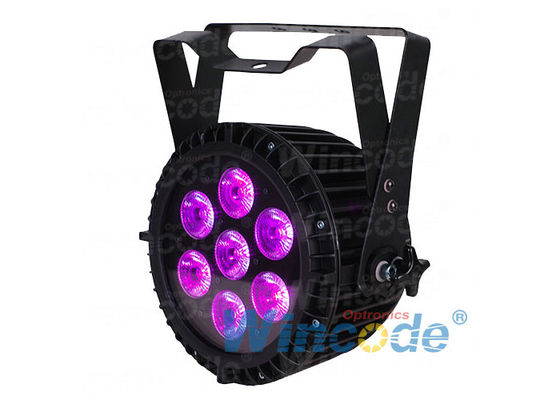

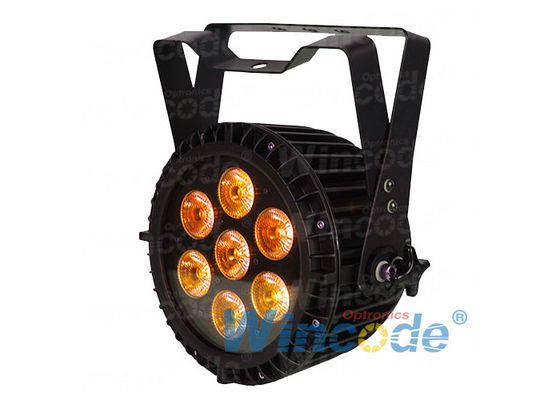

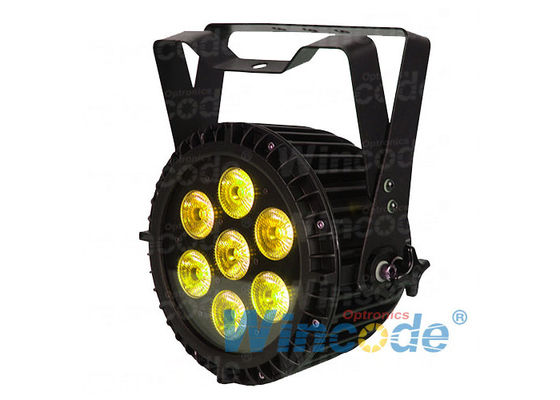

Product Show:


Blizzard Lighting LED Par Light Tough Stage QUAD 7x18W 0 - 100% Electronic Dimming 1

Blizzard Lighting LED Par Light Tough Stage QUAD 7x18W 0 - 100% Electronic Dimming 2
