7×10W RGBW 4 in 1 LED Flat Par Light, LED Par Light, LED Truss Uplight

Basic Information
Place of Origin: Guangdong
Brand Name: Wincode Optronics
Certification: CE/ROHS
Model Number: WOP-DJboy Q7
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Name: 7×10W LED Par Light Light Source: 7 Pcs 10W RGBW 4 In 1 LEDs
Channels: 4/7 Material: Thick Steel Plate
Lens Angle: 25°, 45° Waterproof Grade:: Indoor Use Only
Other Name: LED Slim Par Light
High Light:

Led Par Can


Wireless Led Uplighting

Product Description

7×10W RGBW 4 in 1 LED Flat Par Light, LED Par Light, LED Truss Uplight


Quick detail:


Model : WOP-DJboy Q7

Power supply: AC110V-250V
Frequency: 50-60Hz
Power consumption: 70W
Light source: 7 pcs 10W RGBW 4 in 1 LEDs

Period of warranty: 1 year

Operation Menu: Digital display
Packing Size: 360x250x450mm 4pcs/carton

N. W: 11kg

G. W: 12kg




It’s equipped with 7 pieces 10W RGBW 4 in 1 LEDs; L is Lime color of new arrival color of LEDs. (RGBL, RGBWL, RGBAL is customerized ). 25°beam angle lens; 5/9 DMX channels, use constant current power supply. Powercon in/out; 3-pin DMX in/out. WOP-DJboy Q4 is fashionable styled streamline appearance, small, beautiful, easy installation. Suitable for night club, night bar, disco, KTV, Wedding…Specially use for uplighting, Truss uplighting, Wedding Uplighting, Events...




WOP-Djboy Q7 7pcs 10W 4in1(RGBW) LEDs
WOP-Djboy V7 7pcs 15W 5in1(RGBAW) LEDs
WOP-Djboy X7 7pcs 18W 6in1(RGBAWUV) LEDs
Voltage Input: 100-240V AC, 50/60Hz Features:

. Constant Current Driver
. 32bit MCU with ARM Cortex
. 4 Dimmer Modes
. 16bit PWM Dimming
. HDTV Video Flicker Free
. 4 DMX Channel Modes
. Protocol RDM Compatible
. Working Temperature Monitoring
. Over-temperature Protection
. Intelligent Cooling System
. LED Display Menu On/Off
. Sound Active Mode
. Preset Colors.
. Built-in Auto and Fade Program
. PowerCon AC Power In/Out
. 3-pin XLR DMX In/Out
LED Type: TianXin 3in1/4in1/5in1/6in1 LEDs
Beam Angle: 25 ° /45 °/60 °
Optical Lens Size: 29mm
Protocol: USITT DMX-512, RDM compatiable
DMX Channel Mode: 4/6/9/3 or 5/7/10/3 or 6/8/11/3
Control Mode: DMX-512, Standalone, Master/slave, Sound active
Dimmer Mode: 4 Linear or Curver Dimmer Modes
PWM Dimming: 16bit PWM Dimming at 1000HZ
Body Material: Thick Steel Plate
Waterproo Grade: Indoor Use Only
Product Size 110x125x125mm
Net Weight.: 2Kgs
Carton Size.: 360x250x450mm 4pcs/carton
Gross Weight.: 12Kgs





Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers



Competitive Advantage:


  • Good cooling system.
  • Quiet fan
  • Over 7 years of Stage Lighting Series experience as professional stage lighting manufacturer and supplier.
  • Over 5 years of export experience as professional stage lighting manufacturer and supplier.
  • Strict quality control department, reliable quality.
  • Provide cost-effective products.
  • Professional sales team to provide perfect service.
  • We always respect our customers' copyright or business secrets.
  • Wholesale price, cost-effective


After service:


If there is any problem with the products, firstly you need to send the picture or the video to us,
then let us make sure what's problem about the product, we will try our best to help you .
As for a big problem which the part was broken that can be maintained within the scope of the warranty, we will offer you the replacement for free within 12 months.



Product Show:

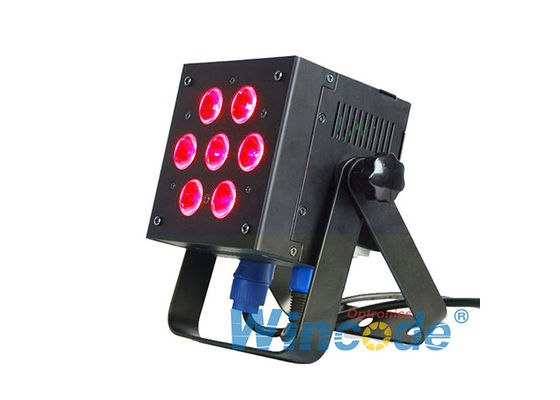

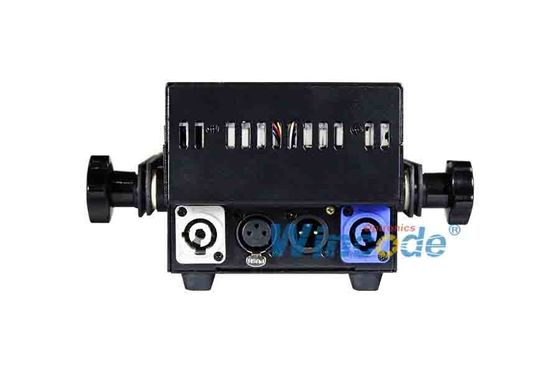

7×10W RGBW 4 in 1 LED Flat Par Light, LED Par Light, LED Truss Uplight 0

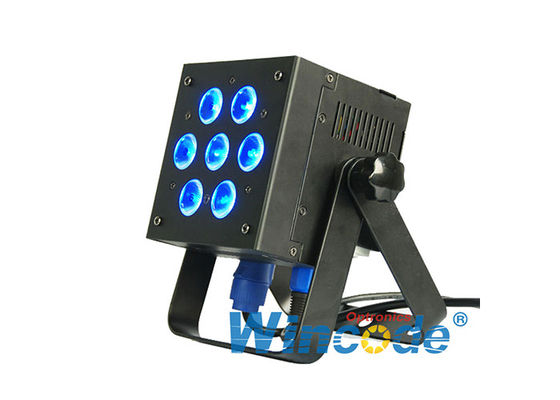

7×10W RGBW 4 in 1 LED Flat Par Light, LED Par Light, LED Truss Uplight 1
