IP65 Outdoor Waterproof 1000W RGB 3in1 Pixel Color Disco Strong LED Strobe Moving Head Lights 4 Segments for Concert Show Stage

Brand Name:	Wincode Optronics
MOQ:	4

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Color Temperature(CCT):

Other

IP Rating:

IP65

Type:

Led Matrix Light

Application:

Stage Show

Color Rendering Index(Ra):

Emitting Color:

RGB

Input Voltage(V):

AC100-240V 50/60Hz

Lamp Luminous Efficiency(lm/w):

Lamp Luminous Flux(lm):

50000

Lifespan (Hours):

50000

Light Source:

LED

Lighting Solutions Service:

Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, Auto Cad Layout, Onsite Metering, Project Installation

Product Weight（kg）:

Support Dimmer:

Yes

Warranty(Year):

2-Year

Working Temperature(℃):

-10 - 45

Product Name:

IP65 Outdoor Waterproof 1000W LED Moving Head Strobe Light

Strobe Panel LEDs:

5050 0.5W RGB 3in1 LEDs

DMX Channels:

7CH / 14CH / 16CH / 42CH / 44CH

LED Segments:

4 Segments

Control Mode:

RDM, DMX512,master Slave,sound/auto

Strobe Tube LEDs:

3535 5W 6500K LEDs

Dimmer:

0-100% Electronic

Wireless DMX:

2.4 GHz W-DMX(optional)

Protocol:

USITT DMX512, RDM

Display:

Illuminated Graphic LCD

Working Time (hours):

50000

CRI (Ra>):

Working Lifetime(Hour):

50000

Highlight:

IP65 waterproof LED strobe light

1000W RGB moving head light

3in1 pixel disco stage light

Product Description

Product Presentation

Name	IP65 Outdoor Waterproof 1000W RGB 3in1 Pixel Color Disco Strong LED Strobe Moving Head Lights 4 Segments for Concert Show Stage
LEDs	480Pcs-RGB Leds +144Pcs 1800k-5600k CTO W- DMX
DMX Channels	10CH / 20CH / 77CH / 96CH
control Protocol	USITT DMX-512, RDM
Resolution	8-16 Bit
Tilt (Degrees)	185°
Display	Illuminated graphic LCD
Wireless DMX	2.4 GHz W-DMX™ (optional)

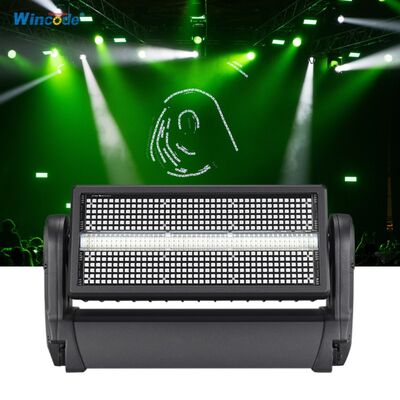

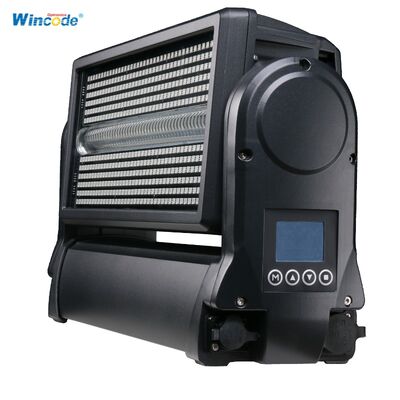

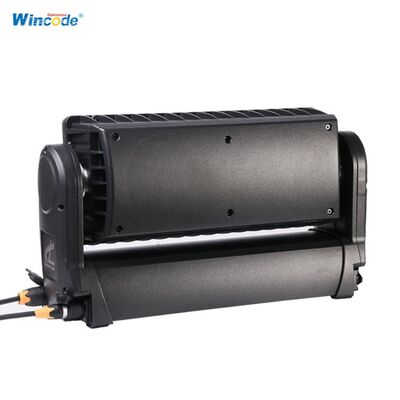

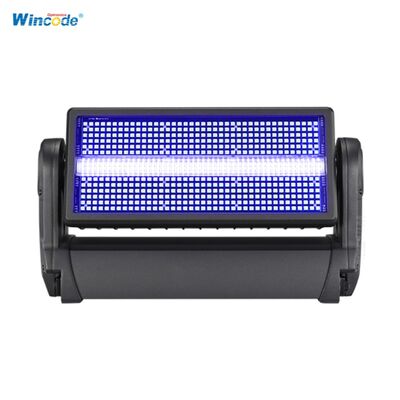

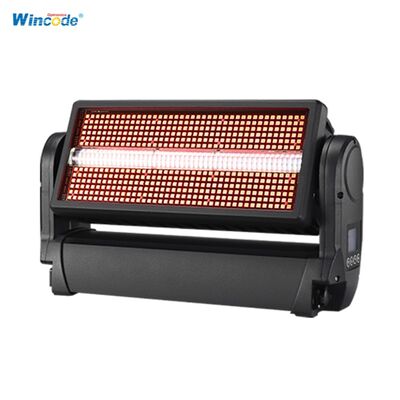

Detailed Images

IP65 Outdoor Waterproof 1000W RGB 3in1 Pixel Color Disco Strong LED Strobe Moving Head Lights 4 Segments for Concert Show Stage

Strobe Panel LEDs
LED Type: 5050 1.5W RGB 3in1 LEDs
LED Count: 480
LED Colors: RGB
LED Segments: 4 segments

Strobe Tube LEDs
LED Type: 3535 5W 6500K LEDs
LED Count: 144
LED Colors: Cool-White+Amber
LED Segments: 8+8

Movement
Resolution: 8-16 Bit
Tilt (Degrees): 185°

Control
Control Modes: 7CH / 14CH / 16CH / 42CH / 44CH
Display: Illuminated graphic LCD
Protocol: USITT DMX-512, RDM
RDM: Bidirectional communication
Wireless DMX: 2.4 GHz W-DMX™ (optional)
Cooling: Temperature controlled, overheating protection

Effects
Dimmer: 0-100% electronic
Shutter: electronic, max. 20 Hz
Internal Effects: LED Macro Effects

Connectors
Signal connection: XLR 5-Pin or 3-Pin In/Out
Power Input: PowerCON TRUE1 In/Out

Operating Conditions
Mains voltage: 100-240V AC / 50-60Hz
Power: 1000W
Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F
Operating Position: any

Application:
Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre,
studio, and other entertainment centers …
