12×40W LED RGBW 4in1 Pixel Control Moving Head Light with 540° Pan and 270° Tilt for Stage and Event Lighting

Brand Name:	Wincode Optronics
MOQ:	2
Price:	$345-355

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Input Voltage:

AC 90-240V, 50/60Hz

Power Consumption:

600W

Color Temperature:

2800K-8500K

Beam Angle:

4.5-45degree

Dimmer Range:

0-100%

Strobe Frequency:

0~20HZ

Control Mode:

DMX512, RDM

Pan Range:

540°

Tilt Range:

270°

Pan/Tilt Resolution:

16 Bit

Net Weight:

14.5kgs

Gross Weight:

16kgs

IP Rating:

IP20

LED Quantity:

12pcs 40W

Cooling System:

Intelligent Speed Control Fan

Highlight:

RGBW 4in1 Pixel Control Moving Head Light

12×40W LED Stage Light

540° Pan Beam Moving Head Light

Product Description

12×40W LED RGBW 4in1 Pixel Control Zoom Moving Head Light

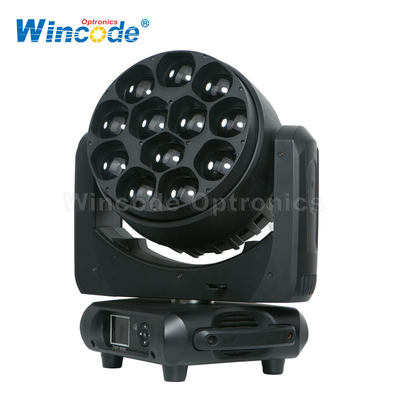

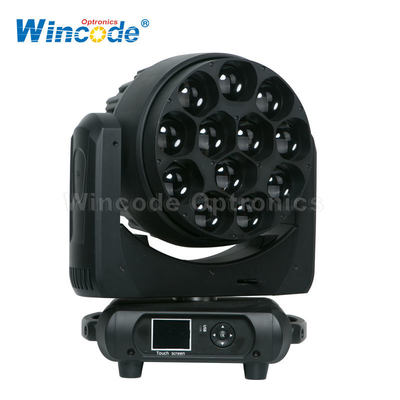

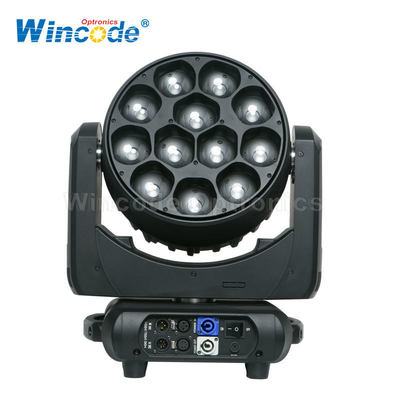

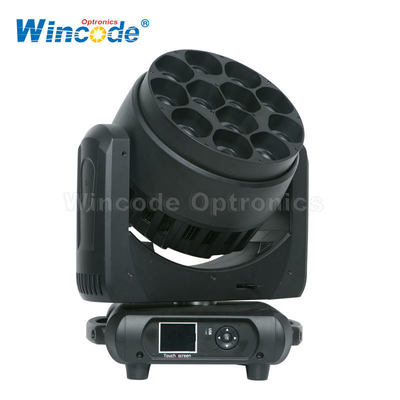

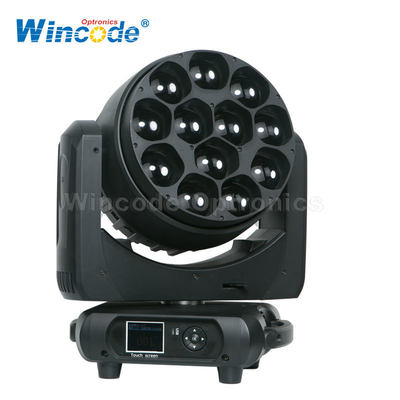

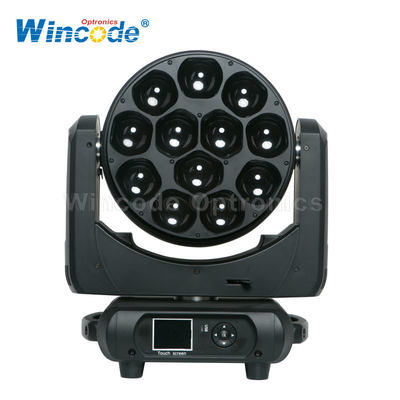

12×40W LED Moving Head Light product image

Product Specifications

Input voltage	100-240 V, 50/60 Hz
Lamp	12pcs 40W Osram 4in1 LEDs
Power consumption	600W
Color temperature	2800K-8500K
Beam angle	4.5-45degree
Dimmer	0-100% dimming
Strobe	0~20HZ
Control mode	RDM, Standard DMX512, Automatic and Master/slave mode
Display	Color LCD display
Housing	Flame-retardant plastic
DMX channels	12/17CH (Overall control), 11CH/17/18CH/58CH (Dot control)
Pan/Tilt	Pan: 540°, Tilt: 270° (16 bit resolution)
Connections	3&5-pin XLR in/out, powerCon in/out
Weight	N.W.: 14.5kgs, G.W.: 16kgs
IP rating	IP20

The WOP-LM4012 12×40W LED Pixel Zoom Moving Head Light features high-power 4-color wash capability with 12 pieces of 40W multi-chip LEDs (Red, Green, Blue, White). It offers a fast 4.5° to 50° beam angle zoom range, advanced cooling systems with temperature monitoring, pixel control, color-pixel zone effects, and linear color temperature presets (2,700-8,000K). Designed for flicker-free operation in TV and film applications with DMX/RDM control and universal power supply (100-240V).

Ideal Applications

Perfect for high-end venues including TV stations, theaters, concert stages, large events, auto shows, and other professional settings with demanding noise requirements.

Product Images

Project Case

Our Advantages

Support ODM, OEM & RTS services
Complete design services from concept to 3D modeling
Professional structure and circuit design
100% quality inspection before shipping
15 years of stage lighting manufacturing experience
Zero complaint record on Alibaba for 15 years

Company Introduction

Guangzhou Wincode Optronics Co., Limited is a professional OEM, ODM, and OBM manufacturer specializing in stage lights, professional lighting, architectural lights, and commercial lighting. Operating under ISO9001 international standards, we market our own "Wincode Optronics" brand globally.
