300W LED Fresnel Spotlight 3200K-5600K CRI90 DMX512 Control

Brand Name:	Wincode Optronics
Model Number:	WOP-STFRESNEL300, WOP-STFRESNEL300
MOQ:	2
Price:	$355-375

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Color Temperature:

3200K-5600K

Luminous Efficiency:

90 Lm/w

Color Rendering Index:

Lifespan:

50000 Hours

Product Weight:

9 Kg

Input Voltage:

AC100-240V, 50/60Hz

Luminous Flux:

20000 Lm

Beam Angle:

18-55°

Working Temperature:

-10 - 45℃

IP Rating:

IP20

Lamp Material:

Aluminum Alloy

Light Source:

300W COB LED

Optical Lens:

Fresnel Lens

Dimming Range:

0~100%

Control Mode:

DMX512/master-slave

Highlight:

300W LED Fresnel spotlight

DMX512 LED studio light

CRI90 Fresnel spotlight

Product Description

300W LED Fresnel Spotlight with DMX512 Control

Professional 300W LED Fresnel spotlight featuring adjustable color temperature (3200K-5600K), manual zoom, and DMX512 control. Ideal for studio, TV station, disco, and entertainment applications with high CRI90 color rendering.

Product Specifications

Attribute	Value
Item Type	Video Lights
Color Temperature (CCT)	3200K-5600K
Luminous Efficiency	90 lm/w
Color Rendering Index (Ra)	95
Dimmer Support	Yes (0-100% linear dimming)
Luminous Flux	20,000 lm
Beam Angle	18°-55°
Input Voltage	AC100-240V, 50/60Hz
Control Mode	DMX512/master-slave
Channels	2CH/3CH/4CH
Display	LCD display
Lifespan	50,000 hours
IP Rating	IP20
Housing Material	Aluminum Alloy
Weight	9 kg
Warranty	2-Year

Key Features

Adjustable Color Temperature: Switch between 3200K (warm) and 5600K (cool) white light
Manual Zoom: 18°-55° beam angle adjustment for precise lighting control
Professional Control: DMX512 protocol with master-slave and LCD display
High Quality Optics: 175mm Fresnel glass lens for uniform light distribution
Robust Construction: Aluminum alloy housing for superior heat dissipation
Energy Efficient: 300W COB LED delivers 20,000 lumens with 90 lm/w efficiency

Product Images

Technical Highlights

Precise Color Temperature Control

The spotlight maintains constant output power at both 3200K (warm) and 5600K (cool) settings. For color effects, filter paper can be added for chromatography.

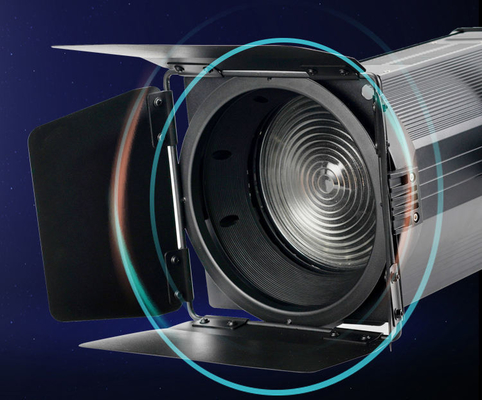

Advanced Fresnel Optical System

Features a 175mm Fresnel glass lens that eliminates hot spots and provides uniform lighting output, superior to standard bare light sources.

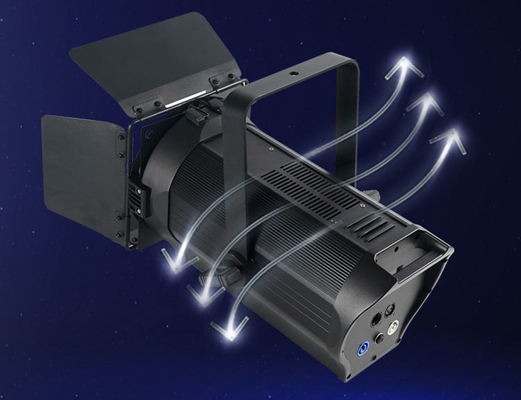

Durable Aluminum Housing

The aluminum alloy construction ensures rapid heat dissipation, extending the working life and providing impact resistance for professional use.

About Manufacturer

Guangzhou Wincode Optronics Co., Limited is a professional OEM, ODM, and OBM manufacturer specializing in stage, architectural, and commercial lighting solutions. Operating under ISO9001 international standards, Wincode Optronics provides high-quality lighting products for theaters, TV studios, multimedia halls, and entertainment venues worldwide.
