300W LED Fresnel Spotlight 3200K-5600K CRI95 DMX512 Control

Brand Name:	Wincode Optronics
Model Number:	WOP-STFRESNEL300, WOP-STFRESNEL300
MOQ:	2
Price:	$355-375

Detail Information

Product Description

Detail Information

Place of Origin:

guangdong

Color Temperature:

3200K-5600K

Luminous Efficiency:

90 Lm/w

Color Rendering Index:

Luminous Flux:

20000 Lm

Beam Angle:

18-55°

Input Voltage:

AC100-240V, 50/60Hz

Working Temperature:

-10 - 45℃

IP Rating:

IP20

Lamp Body Material:

Aluminum Alloy

Light Source:

300W COB LED

Optical Lens:

Fresnel Lens

Dimming Range:

0~100%

Control Mode:

DMX512/master-slave

Display Type:

LCD Display

Product Weight:

9 Kg

Highlight:

300W LED Fresnel spotlight

DMX512 controlled LED studio light

CRI95 high color accuracy spotlight

Product Description

3200K 5600K CRI95 300W Stage Theatre Light LED Fresnel Spotlight DMX512 Control for Studio TV Station Disco Entertainment

Product Specifications

Attribute	Value
Item Type	Video Lights
Color Temperature (CCT)	3200K-5600K
Lamp Luminous Efficiency (lm/w)	90
Color Rendering Index (Ra)	95
Support Dimmer	Yes
Lighting Solutions Service	Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation
Lifespan (hours)	50000
Product Weight (kg)	9
Warranty (Year)	2-Year
Input Voltage (V)	AC100-240V, 50/60Hz
Lamp Luminous Flux (lm)	20000
Beam Angle (°)	18-55
Working Temperature (℃)	-10 - 45
IP Rating	IP20
Emitting Color	White
Lamp Body Material	Aluminum Alloy
Base Type	NO
Light Source	LED

Key Features

300W COB LED light source with Fresnel lens for optimal light output
0~100% linear dimming capability
Adjustable beam angle from 18° to 55°
DMX512/master-slave control mode with LCD display
Aluminum alloy housing for superior heat dissipation
Color temperature adjustable between 3200K (warm) and 5600K (cool)
High CRI (Color Rendering Index) of 95 for accurate color reproduction
Long lifespan of 50,000 working hours

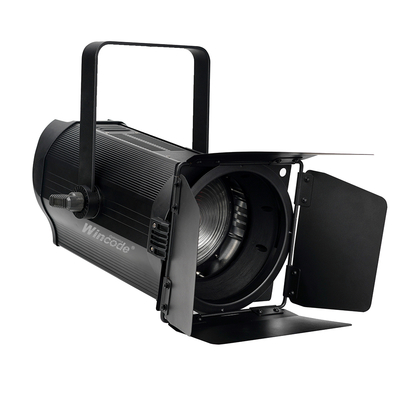

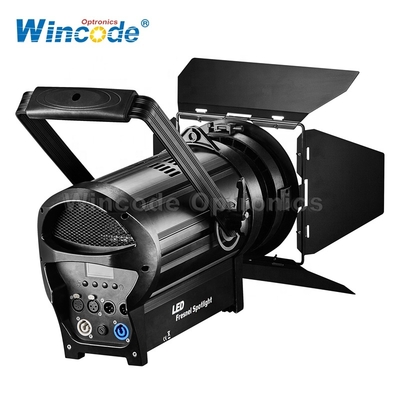

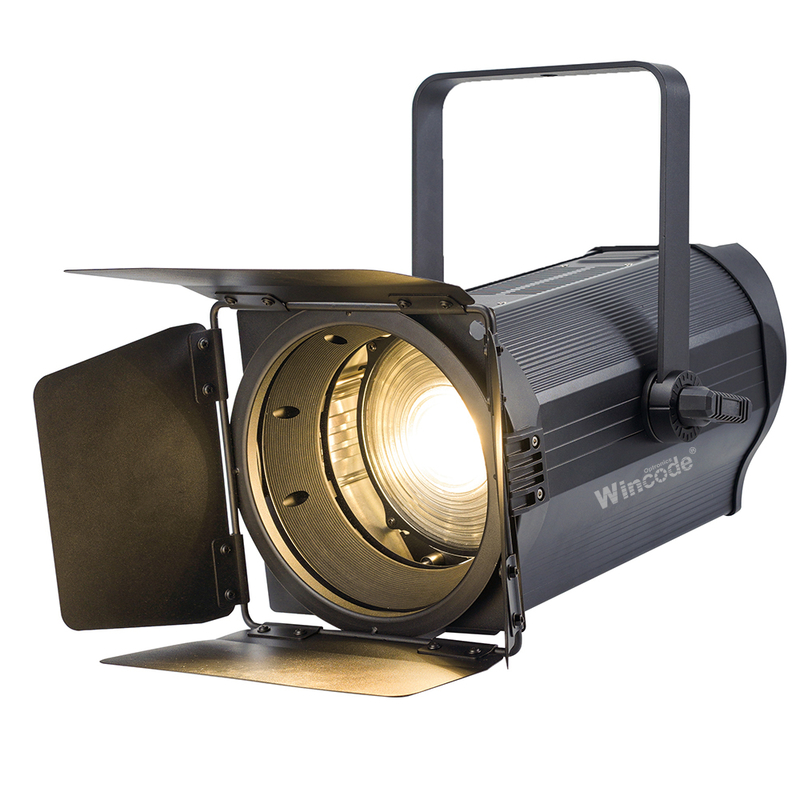

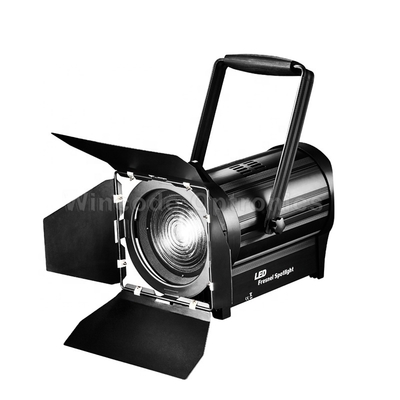

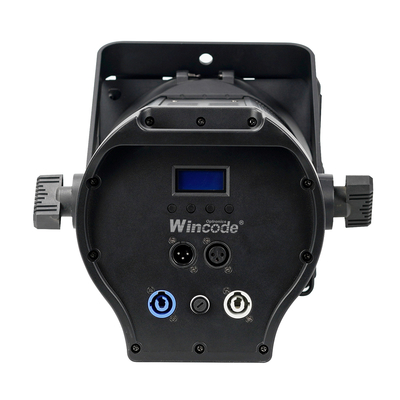

Product Images

Technical Highlights

Color Temperature Adjustment

3200K/5600K provides constant output power. For colorful effects, filter paper can be attached for chromatography.

Fresnel Optical Lens

Features advanced Fresnel lens technology that eliminates hot spots and provides uniform lighting output compared to standard bare light sources.

Aluminum Housing

The aluminum alloy shell provides excellent heat dissipation, extending working life and improving durability against impacts.

About Manufacturer

Guangzhou Wincode Optronics Co., Limited is a professional OEM, ODM, and OBM manufacturer specializing in stage lights, professional lights, architectural lights, and commercial lights. Operating under strict ISO9001 international standards, our products are suitable for theaters, TV studios, multimedia halls, and entertainment venues worldwide.

Certifications

Packaging & Shipping
