200W LED Studio Skypanel Light 3000K-6000K CRI 96 DMX512

Brand Name:	Wincode Optronics
MOQ:	6
Price:	$399

Detail Information

Product Description

Detail Information

Place of Origin:

China

Color Temperature:

2700K-6000K

Luminous Efficiency:

90 Lm/w

Color Rendering Index:

Ra≥95

Input Voltage:

AC90-240V 50-60Hz

Lifespan:

50000 Hours

Product Weight:

14 KG

Luminous Flux:

1800 Lm

Working Temperature:

-10°C To 40°C

IP Rating:

IP33

Light Source:

1920pcs * 0.2W LED

Control Method:

DMX512

Dimmer Range:

10~100%

Fixed Lens:

180°

Cooling System:

No Noise Fan

Packing Size:

880*460*145mm

Highlight:

200W LED studio skypanel light

DMX512 LED studio light

CRI 96 LED skypanel light

Product Description

200W Hot Selling LED Studio Skypanel Light Photographic Flexible Lighting TVStudio Film Led Stage Panel for Theater

Product Specifications

Color Temperature (CCT)	2700K (Soft Warm White)
Lamp Luminous Efficiency (lm/w)	90
Color Rendering Index (Ra)	96
Support Dimmer	Yes
Lighting Solutions Service	Lighting and circuitry design, auto CAD layout, Project Installation
Input Voltage (V)	AC90-240V 50-60Hz
Type	Profile Spotlights
Lifespan (hours)	50,000
Product Weight (kg)	14 KG
Lamp Luminous Flux (lm)	1800
Working Temperature (℃)	-10 - 40
IP Rating	IP33
Emitting Color	RGBWL
Application	Theater/auditorium/Conference/Stage/Wedding etc.
Material	Iron
Light Source	LED, 1920pcs * 0.2W LED
Control Method	DMX512
Warranty (Year)	1-Year
Install Style	Hanging Mount
Logo/Graphic Design	Laser engraving
Plug Type	US PLUG, European plug, Australian plug, British plug

Product Features

Portable SMD LED soft light for theatre, film and production
Stable MEAN WELL brand power supply
Dimmer is 10~100% linearly adjustable
Ultra smooth 16-bit dimming of master dimmer and individual colors
Soft and even field of light
Color Temperature Presets from 3000K to 6000K with high CRI & CQS
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Selectable dimming curve: Standard mode, Incandescent mode, quick mode and linear mode
No noise fan cooling system for use in studio and theatre applications

Technical Specifications

Voltage	AC100V-240V.50-60Hz
Max Power Consumption	220W
LED Power	LED 1920pcs * 0.2W
Light Color	WW&CW
Power Supply	MEAN WELL
Color Rendering Index	CRI Ra≥95
LED Life Time	Over 50,000 hours
Fixed Lens	180°
Dimmer	0~100% linearly adjustable
Strobe	1-25times/sec
Control Protocol	RDM / DMX
Light Body	Die-casting Aluminum
Menu Screen	LCD with touch screen
Packing Size	880460145mm
Net Weight	9.5kgs
Gross Weight	11.5kgs
Lead Time	5days to 15days
Packing Options	Carton box, flight case
Warranty	1 year warranty with life long service

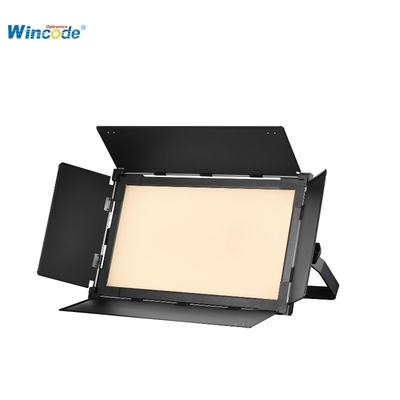

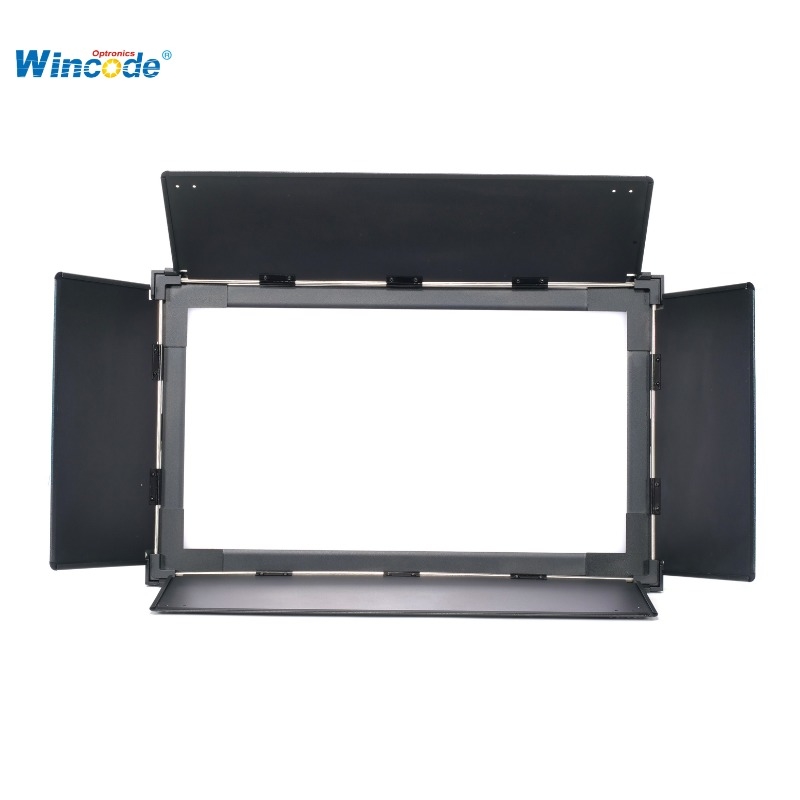

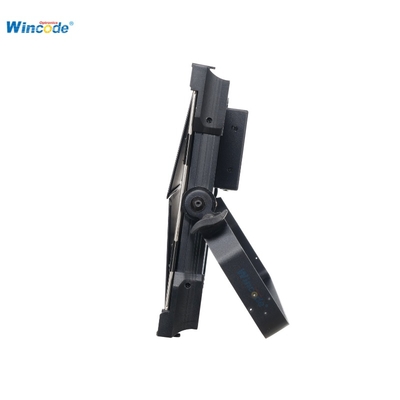

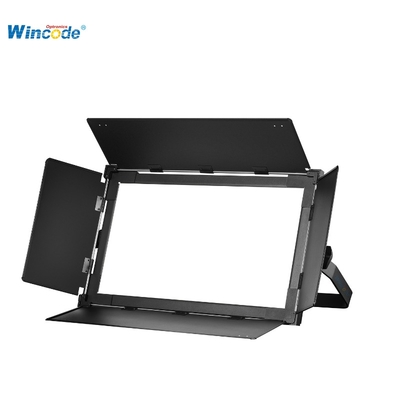

Product Images

Applications

Conference events, theater, auditorium, stadium, fashion show, TV studio, seminar room and other occasions that require strict color, light, color temperature and quiet operation.

Our Advantages

Support ODM & OEM & RTS
Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
Structure Designs: Pro/E--Parts--assembly drawing--Prototype
Software Design
Integrated Circuit Design
100% inspection before packing
0 complaint in Alibaba order for 15 years
15 years' experience in making stage lighting

Company Introduction

Professional Moving Head Light Supplier - Wincode Optronics

Guangzhou Wincode Optronics Co.,Limited is a professional OEM, ODM, OBM manufacturer and exporter which specialized in manufacturing and marketing variety stage lights, PRO Lights, Architectural Lights, Commercial Lights. With much experience and strict ISO9001 international standards.

We are running our own brand "WincodeOptronics" in the global market for lighting. Our products are suitable for various entertainment and recreation places, such as theatre, TV showroom, multimedia hall, square show, organ hall, recreational city, Disco club, Bar, KTV and so on.
