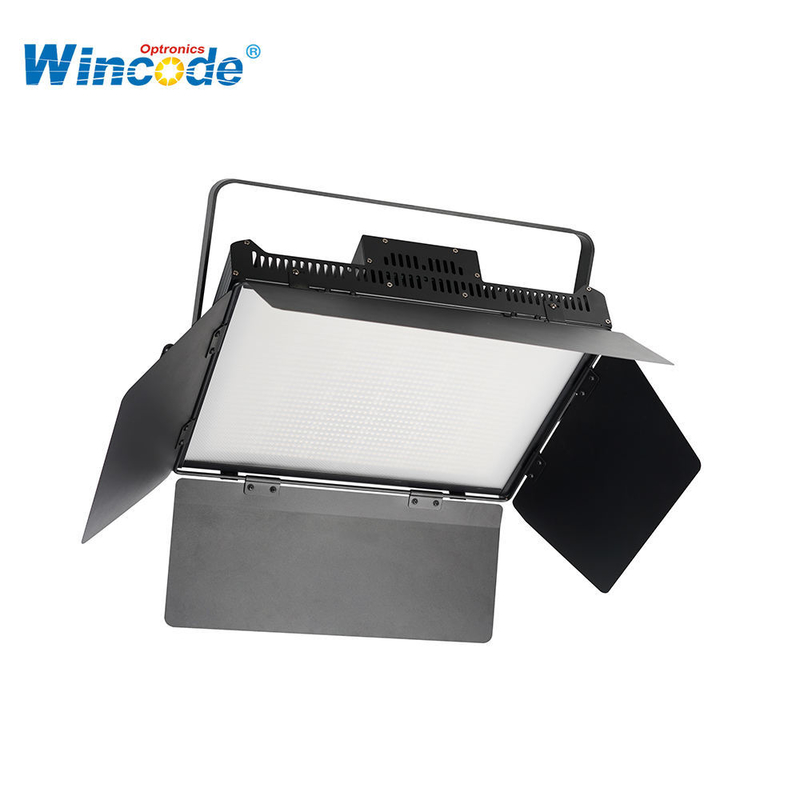

Dimmable LED Studio Panel Light 200W-300W 3000K-5600K CCT

Brand Name:	Wincode Optronics
MOQ:	2
Price:	$155-170

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Color Temperature:

3000K~5600K

Luminous Efficiency:

90 Lm/w

Color Rendering Index:

Input Voltage:

AC90-240V, 50/60Hz

Lifespan:

50000 Hours

Product Weight:

6 Kg

Luminous Flux:

5000 Lm

Working Temperature:

10 - 35 ℃

IP Rating:

IP20

Light Source:

720Pcs LEDs

Beam Angle:

120°

Dimming Range:

0%~100%

Dimming Curves:

Product Size:

613×305×115mm

Net Weight:

6KG

Highlight:

dimmable LED studio light 200W

LED panel light 3000K-5600K CCT

300W studio light with warranty

Product Description

Dimmable LED Soft Panel Light 3000K~5600K LED 200W-300W Sky Panel Stage Studio Soft Video Panel Light

Product Specifications

Attribute	Value
Color Temperature (CCT)	3000K~5600K
Lamp Luminous Efficiency (lm/w)	90
Color Rendering Index (Ra)	90
Support Dimmer	Yes
Lighting Solutions Service	Lighting and circuitry design, auto CAD layout, Project Installation
Input Voltage (V)	AC90-240V, 50/60Hz
Type	Profile Spotlights
Lifespan (hours)	50,000
Product Weight (kg)	6
Lamp Luminous Flux (lm)	5000
Working Temperature (℃)	10 - 35
IP Rating	IP20
Emitting Color	WW/CW
Application	Theater/Auditorium/Conference/Stage/Wedding etc.
Light Source	WW/CW, 720Pcs LEDs
Warranty	1-Year

Key Features

High illuminance imported LED chip with dot-matrix compound eye optical system
0%~100% 16bit linear dimming with 4 dimming curves
120° beam angle for wide coverage
Natural cooling system - no fan, no noise
Multiple CCT presets from 3000K to 6500K
Color temperature remains stable during dimming

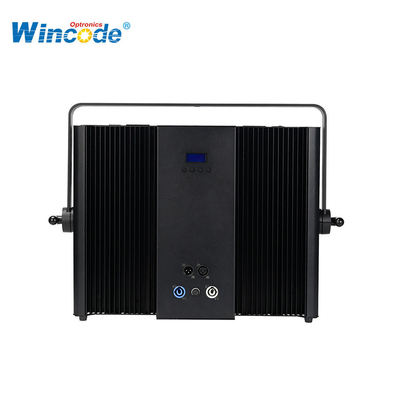

LCD display and Powercon connector
Includes 4 barn doors for light control

Product Presentation

Technical Details

Product Size	613×305×115mm
Net Weight	6KG
Gross Weight	7KG
CCT Preset Options	3000K, 3200K, 4000K, 5600K, 6000K, 6500K
Color Temperature Deviation	±100K
Dimming Specifications	16k/Hz, dimming fine, 4 dimming curves

Detailed Images

Project Case

Our Advantages

Support ODM, OEM & RTS services
Comprehensive design services from concept to 3D modeling
Integrated circuit design expertise
100% quality inspection before packing
15 years of stage lighting manufacturing experience
0 complaints in Alibaba orders for 15 years

About Wincode Optronics

Guangzhou Wincode Optronics Co., Limited is a professional OEM, ODM, and OBM manufacturer specializing in stage lights, PRO lights, architectural lights, and commercial lights. Operating under strict ISO9001 international standards, we serve entertainment venues worldwide including theaters, TV studios, multimedia halls, and clubs.
