300W LED Studio Light 3200K-5600K CCT 96 CRI DMX512 Control

Brand Name:	Wincode Optronics
MOQ:	2
Price:	$620-645

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Color Temperature:

3200K/5600K

Luminous Efficiency:

90 Lm/w

Color Rendering Index:

Ra 96

Input Voltage:

AC90-240V 50-60Hz

Lifespan:

50000 Hours

Product Weight:

15 KG

Luminous Flux:

1800 Lm

Working Temperature:

-20 - 45 ℃

IP Rating:

IP20

Light Source:

LED, 1920pcs * 0.2W

Control Method:

DMX512, RDM

Dimmer Range:

10~100%

Fixed Lens:

180°

Cooling System:

No Noise Fan

Packing Size:

880*460*145mm

Highlight:

300W LED studio light with DMX512 control

LED studio light 3200K-5600K CCT

96 CRI LED studio light

Product Description

Professional 300W WW+CW LED Soft Video Panel Light Photo Live Flat Panel Light Gourmet Shooting Live Room Lighting

Product Specifications

Color Temperature (CCT)	3200K/5600K
Lamp Luminous Efficiency (lm/w)	90
Color Rendering Index (Ra)	96
Support Dimmer	Yes
Lighting Solutions Service	Lighting and circuitry design, auto CAD layout, Project Installation
Input Voltage (V)	AC90-240V 50-60Hz
Type	Profile Spotlights
Lifespan (hours)	50,000
Product Weight (kg)	15 KG
Lamp Luminous Flux (lm)	1800
Working Temperature (℃)	-20 - 45
IP Rating	IP20
Emitting Color	White, Warm white
Application	Theater/auditorium/Conference/Stage/Wedding etc.
Material	Iron
Light Source	LED, 1920pcs * 0.2W LED
Control Method	DMX512, RDM
Warranty (Year)	1-Year
Install Style	Hanging Mount
Logo/Graphic Design	Laser engraving
Battery Type	Without battery
Plug Type	US PLUG, European plug, British plug, Australian plug

Technical Details

Voltage	AC100V-240V.50-60Hz	Housing Feature	Die casting Aluminum
Max Power Consumption	400W	Control System	DMX, Auto run and Master/Slave
LED Power	LED 1920pcs * 0.2W	DMX Channels	2CH
Light Color	WW&CW	Environment Temperature	-30°C~40°C
Power Supply	MEAN WELL	Cooling system	No noise fan
Color Rendering Index	CRI Ra≥95	IP Grade	IP20
LED Life Time	Over 50,000 hours	Packing Size	880460145mm
Fixed Lens	180°	Net Weight	9.5kgs
Dimmer	0~100% linearly adjustable	Gross Weight	11.5kgs
Strobe	1-25times/sec	Lead Time	5days to 15days
Control Protocol	RDM / DMX	Packing Options	Carton box, flight case
Light Body	Die-casting Aluminum	Warranty	1 year warranty with life long service
Menu Screen	LCD with touch screen

Key Features

Portable SMD LED soft light for theatre, film and production
Stable MEAN WELL brand power supply
Dimmer is 10~100% linearly adjustable
Ultra smooth 16-bit dimming of master dimmer and individual colors
Soft and even field of light
Color Temperature Presets from 3000K to 6000K with high CRI & CQS
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Selectable dimming curve: Standard mode, Incandescent mode, quick mode and linear mode
No noise fan cooling system for use in studio and theatre applications

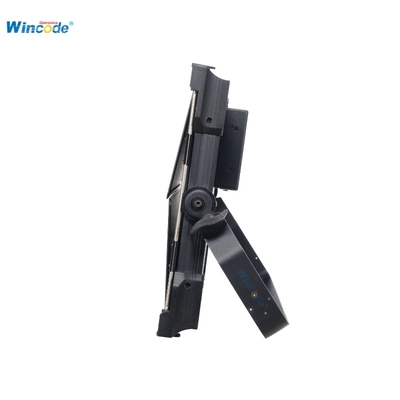

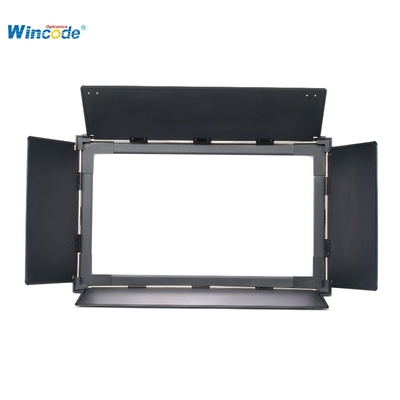

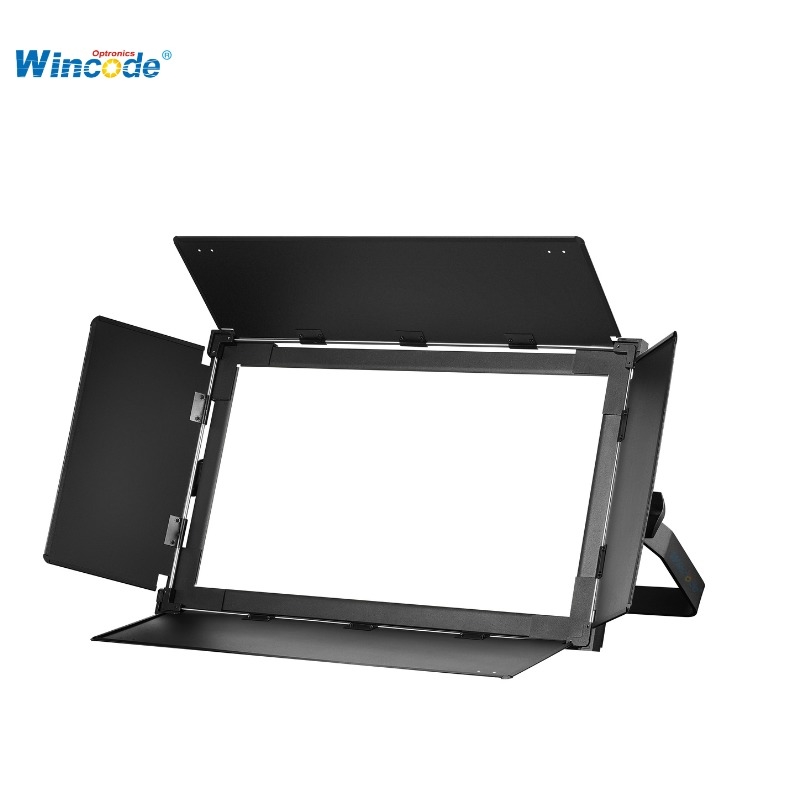

Product Images

Applications

Conference events, theater, auditorium, stadium, fashion show, TV studio, seminar room and other occasions that require strict color, light, color temperature and quiet operation.

Project Case

Our Advantages

Support ODM & OEM & RTS
Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
Structure Designs: Pro/E--Parts--assembly drawing--PrototypeSoftware Design
Integrated Circuit Design
100% inspection before packing
0 complaint in Alibaba order for 15 years
15 years' experience in making stage lighting

Company Introduction

Professional Moving Head Light Supplier - Wincode Optronics
Guangzhou Wincode Optronics Co., Limited is a professional OEM, ODM, OBM manufacturer and exporter which specialized in manufacturing and marketing various stage lights, PRO Lights, Architectural Lights, Commercial Lights. With much experience and strict ISO9001 international standards.

We are running our own brand "WincodeOptronics" in the global market for lighting. Our products are suitable for various entertainment and recreation places, such as theatre, TV showroom, multimedia hall, square show, organ hall, recreational city, Disco club, Bar, KTV and so on.

Certificate

Packing & Shipping
