200W LED Ellipsoidal Spotlight 3200K-5600K CCT 90lm/W Efficiency

Brand Name:	Wincode Optronics
MOQ:	2
Price:	$190-199

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Color Temperature:

3200K/5600K

Luminous Efficiency:

90 Lm/w

Color Rendering Index:

Input Voltage:

AC90-240V 50-60Hz

Lifespan:

50000 Hours

Product Weight:

14 Kg

Luminous Flux:

6000 Lm

Working Temperature:

-20 - 40 ℃

IP Rating:

IP20

Beam Angle:

19°/26°/36°/50°(optional)

Control System:

RDM / DMX

Cooling System:

No Noise Fan (copper Tube)

Rated Power:

200W/300W/400W COB LED

Optical Lens:

Special Imaging Glass Optical Lens Group

Tilt Angle:

± 90 °

Highlight:

200W LED ellipsoidal spotlight

3200K-5600K CCT studio light

90lm/W efficiency LED spotlight

Product Description

High CRI 200W WW/CW Die-casting Aluminum LED Leko Ellipsoidal Profile Spotlight

Professional stage lighting solution for theater, studio, wedding, and event applications with superior color rendering and versatile control options.

Key Specifications

Attribute	Value
Color Temperature (CCT)	3200K/5600K
Luminous Efficiency	90 lm/w
Color Rendering Index (Ra)	92
Input Voltage	AC90-240V 50-60Hz
Beam Angle	19°/26°/36°/50° (optional)
Control	RDM / DMX
Lifespan	50,000 hours
Weight	14 kg
IP Rating	IP20
Warranty	1-Year

Product Features

High-quality optical system with glass aspherical lens
Special imaging glass optical lens group (6 unique glasses)
STM32 control chip with DMX512 protocol
MGCP heat pipe radiator + silent fan cooling system

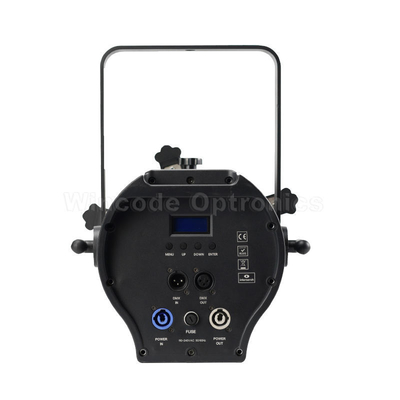

LCD display interface for easy operation
±90° tilt angle with orbital bracket adjustment
0-100% manual dimming capability

Technical Specifications

Parameter	Specification
LED Light Source	200W/300W/400W COB LED
Rated Power	200W/300W/400W
Maximum Clock Frequency	72M Hz
Output Frequency	16k Hz
Working Temperature	-10℃~40℃
Packing Size	680×350×480mm
