300W IP65 LED Ellipsoidal Spotlight 3200K-5600K 50000Hrs

Brand Name:	Wincode Optronics
MOQ:	2
Price:	$735-745

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Color Temperature:

3200K/5600K

Luminous Efficiency:

90 Lm/w

Color Rendering Index:

Input Voltage:

AC90-240V 50-60Hz

Lifespan:

50000 Hours

Product Weight:

21 Kg

Luminous Flux:

6800 Lm

Working Temperature:

-20 - 40 ℃

IP Rating:

IP20

Beam Angle:

19°/26°/36°/50°

Control Protocol:

RDM / DMX

Cooling System:

No Noise Fan (copper Tube)

LED Power:

300W

Zoom Function:

Auto Zoom

Dimming Frequency:

500HZ - 25000HZ

Highlight:

300W IP65 LED spotlight

3200K-5600K ellipsoidal light

50000Hrs LED studio light

Product Description

Fan-less IP65 Outdoor 300W WW/CW Single Color Auto Cutting Framing LED Ellipsoidal Leko Profile Spotlight

Key Specifications

Attribute	Value
Color Temperature (CCT)	3200K/5600K
Luminous Efficiency	90 lm/w
Color Rendering Index (Ra)	92
Input Voltage	AC90-240V 50-60Hz
Lifespan	50,000 hours
IP Rating	IP65
Beam Angle	19°/26°/36°/50° (optional)
Control Protocol	RDM / DMX
Cooling System	Fan-less (copper tube)
Material	Aluminum Body

Product Features

High-quality optical system with glass aspherical lens
Auto zoom function with adjustable beam angle (15°-30°)
Multiple dimming curves and strobe effects (1-25 times/sec)
LCD touch screen control panel
Fan-less cooling system for silent operation
IP65 waterproof rating for outdoor use
Versatile control options: DMX, Auto run, Master/Slave
Wide working temperature range: -20°C to 40°C

Technical Details

LED Power	300W/600W
LED Color Options	RGBAL 5in1/Single color WW or CW(300W)/2in1 CW+WW(300W)
Color Temperature Range	3000K-6000K (300W 2in1) / 2,700-12,000K (300W 5in1)
DMX Channels	5/24CH(5IN1), 17CH(2in1), 1/16CH(Single color)
Net Weight	16.5 kg
Packing Size	86×37×35cm (1pc/carton)

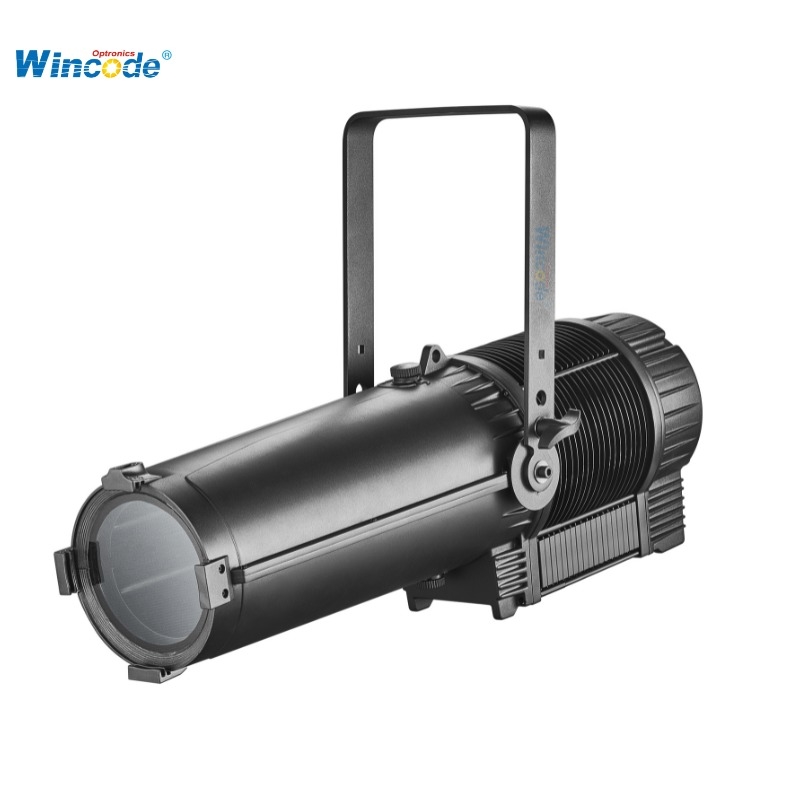

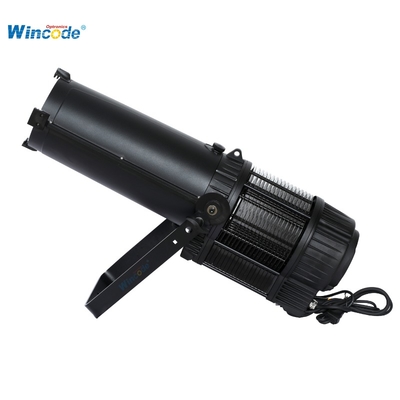

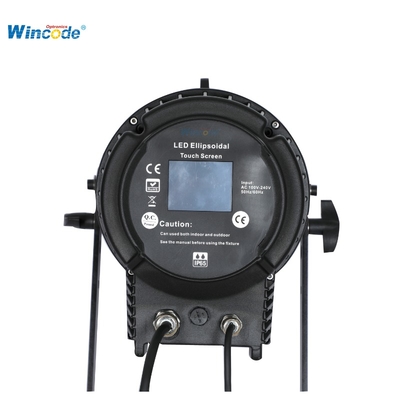

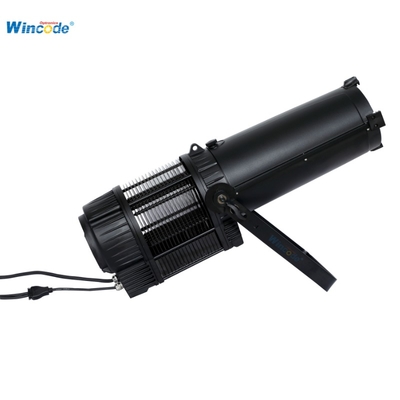

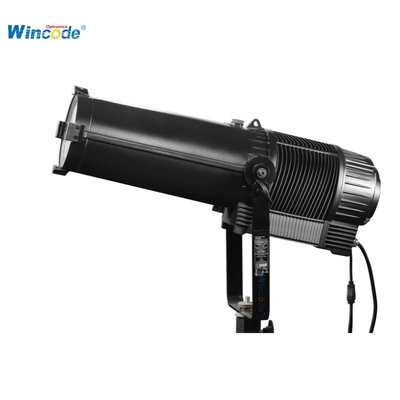

Product Images

Project Application

Ideal for theater, auditorium, conference, stage, wedding, and other professional lighting applications.
