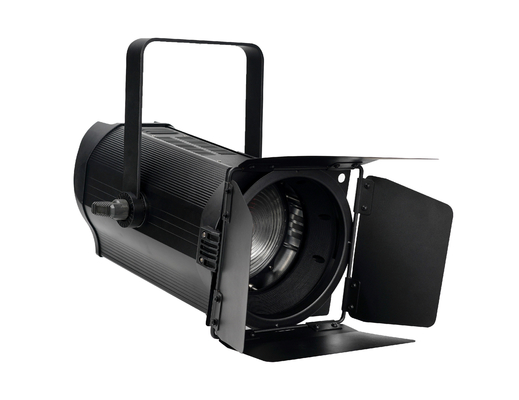

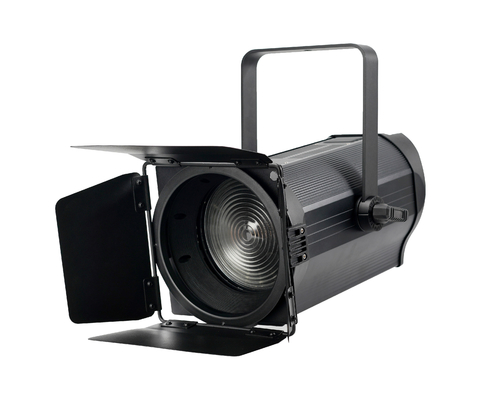

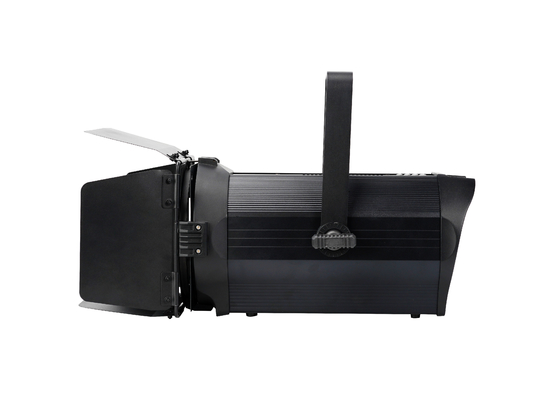

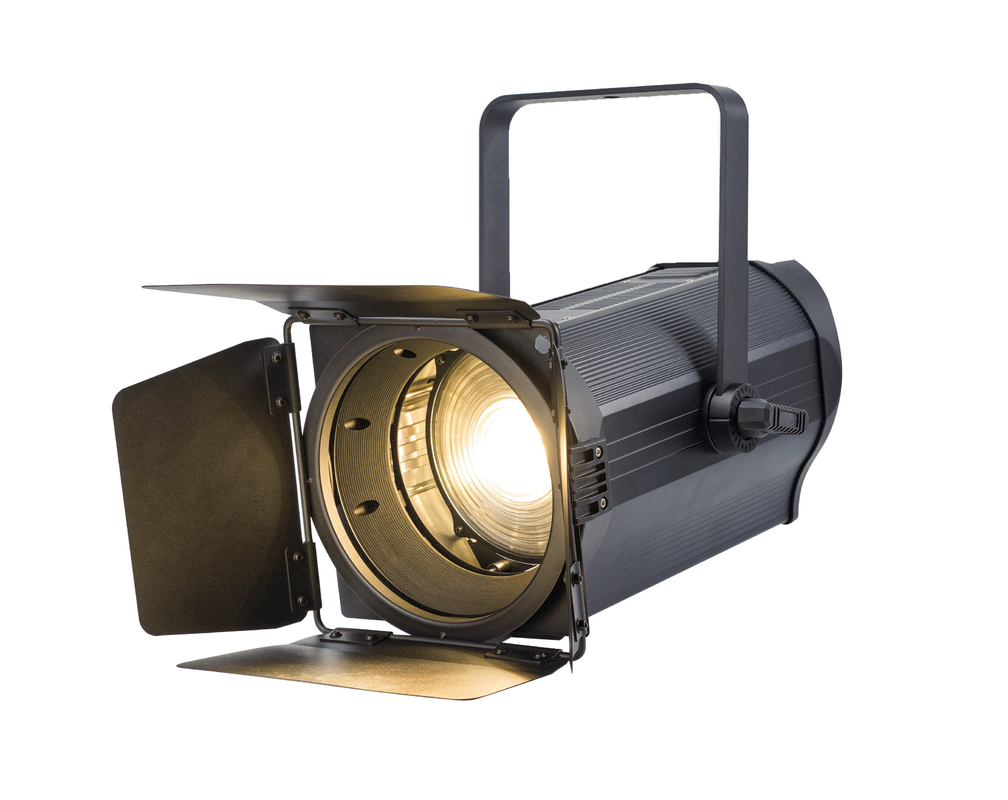

300W LED Fresnel Spotlight RGBAL 50000H Lifespan IP20

Brand Name:	Wincode Optronics
MOQ:	2
Price:	$285-295

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Color Temperature:

RGBAL

Luminous Efficiency:

90 Lm/w

Color Rendering Index:

Input Voltage:

AC90-240V 50-60Hz

Lifespan:

50000 Hours

Product Weight:

9 Kg

Luminous Flux:

6800 Lm

Working Temperature:

-20 - 45 ℃

IP Rating:

IP20

Beam Angle:

19°/26°/36°/50° (optional)

Control System:

RDM / DMX

Cooling System:

No Noise Fan (copper Tube)

Rated Power:

200W/300W/400W

Auto Zoom Range:

18°~55°

Tilt Angle:

±90°

Highlight:

300W LED Fresnel spotlight

RGBAL studio light with warranty

IP20 LED spotlight 50000H lifespan

Product Description

High Quality LED Studio Lighting Auto Zoom RGBALC 6 in 1 300W LED Fresnel Spotlight

Product Specifications

Attribute	Value
Color Temperature (CCT)	RGBAL
Lamp Luminous Efficiency (lm/w)	90
Color Rendering Index (Ra)	95
Support Dimmer	Yes
Lighting Solutions Service	Lighting and circuitry design, auto CAD layout, Project Installation
Input Voltage	AC90-240V 50-60Hz
Type	Fresnel Lights
Lifespan (hours)	50,000
Product Weight (kg)	9
Lamp Luminous Flux (lm)	6,800
Working Temperature	-20°C to 45°C
IP Rating	IP20
Emitting Color	3200K/5600K
Application	Theater, Auditorium, Conference, Stage, Wedding, etc.
Light Source	LED
Warranty	1-Year
Material	Aluminum Body
Feature	High-quality optical system, glass aspherical
Beam Angle	19°/26°/36°/50° (optional)
Control	RDM / DMX
Cooling	No noise fan (copper tube)

Technical Details

Voltage Requirements	100V~240V, 50/60Hz
LED Light Source	200W / 300W / 400W WW/CW/Bi-color / RGBW COB LED
Rated Power	200W/300W/400W
Color Temperature	3200K / 5600K Optional or Bi-color RGBW
Life	50,000 hours
Color Rendering	CRI≥95
Adjustable CCT	3000K~5600K; Power remains stable after setting; color temperature doesn't change when dimming (for WW/CW Bi-color)
Manual Dimming	0~100%
Auto Zoom Range	18°~55°
Angle Focusing	Motor Regulation
Control Systems	STM32 control chip, DMX512
Maximum Clock Frequency	72MHz
Output Frequency	16kHz
Channels	2CH/3CH/4CH

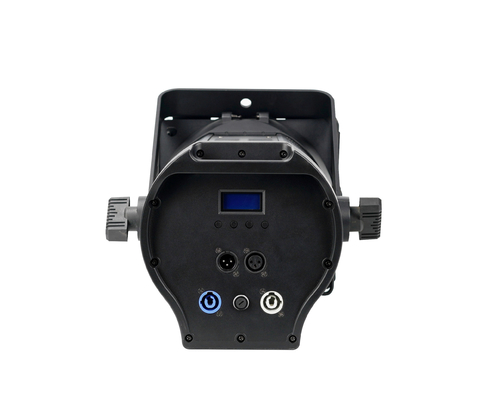

Working Interface	LCD display interface
Cooling System	MGCP heat pipe radiator + Silent fan, temperature rise ≤20°C, intelligent automatic temperature adjustment
Operating Environment	-10°C~40°C
Tilt Angle	±90°
Protection Class	IP23
Materials	Die-casting Aluminum + Profile
Size	441×306×246mm
Weight	9.0kg

Product Images

Project Case

Our Advantages

Support ODM & OEM & RTS services
Comprehensive design services: concept design → Sketch → Color → 3D Modeling → Rendering
Structure Designs: Pro/E → Parts → Assembly drawing → Prototype
Integrated Circuit Design
100% inspection before packing
15 years' experience in stage lighting manufacturing
0 complaints in Alibaba orders for 15 years

Company Introduction

Guangzhou Wincode Optronics Co., Limited is a professional OEM, ODM, OBM manufacturer and exporter specializing in stage lights, PRO Lights, Architectural Lights, and Commercial Lights. Operating under strict ISO9001 international standards, we market our own brand WincodeOptronics globally.

Our products are ideal for entertainment venues including theaters, TV showrooms, multimedia halls, square shows, organ halls, recreational cities, Disco clubs, Bars, and KTVs.
