100W LED Fresnel Spotlight 3200K-5600K with DMX512 Control

Brand Name:	Wincode Optronics
MOQ:	2
Price:	US$165-175

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Color Temperature:

3200K/5600K

Luminous Efficiency:

90 Lm/w

Color Rendering Index:

Ra≥92

Input Voltage:

AC90-240V 50-60Hz

Lifespan:

50000 Hours

Product Weight:

7 Kg

Luminous Flux:

2250 Lm

Working Temperature:

-20°C - 40°C

IP Rating:

IP20

Beam Angle:

19°/26°/36°/50° (optional)

Control Mode:

DMX512

Cooling System:

No Noise Fan (copper Tube)

Manual Zoom:

15-50°

Max Power Consumption:

130W

Net Weight:

5.39 Kg

Highlight:

100W LED Fresnel spotlight with DMX512

LED studio light 3200K-5600K

DMX512 controlled Fresnel spotlight

Product Description

High Quality 100W Spotlight WW/CW 2In1 DMX512 Mini LED Fresnel Light With Manual Zoom

Key Specifications

Color Temperature (CCT)	3200K/5600K
Luminous Efficiency	90 lm/w
Color Rendering Index (CRI)	Ra≥92
Input Voltage	AC90-240V 50-60Hz
Lifespan	50,000 hours
Beam Angle	19°/26°/36°/50° (optional)
Control	RDM/DMX
Cooling System	No noise fan (copper tube)
IP Rating	IP20

Product Features

100W LED power with imported Japanese LED lamps
Manual zooming scale from 15-50°
0-100% linear dimming capability

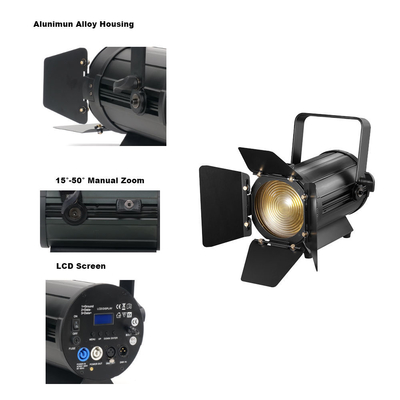

High-quality optical system with glass aspherical lens
Aluminum alloy housing in black finish
Multiple control modes: DMX512, master/slave, auto running, sound mode
Wide operating temperature range: -30°C to 40°C
Compact and lightweight design (5.39kg net weight)

Technical Details

LED Power	100W
Light Color Options	Single WW or CW (100W), 100W (2in1, 4in1) optional
Max Power Consumption	130W
DMX Channels	1/2CH (Single color), 2/5CH (2in1), 4/8CH (4in1)
Packing Size	36.5×32×32 cm (1pc/carton)
Gross Weight	6.5kg

Product Images

Applications

Ideal for professional lighting in theaters, auditoriums, conferences, stages, weddings, and other entertainment venues.

Project Case

Our Advantages

Support ODM, OEM & RTS services
Comprehensive design services from concept to 3D modeling
Integrated circuit design capabilities
100% quality inspection before packing
15 years of experience in stage lighting manufacturing
ISO9001 certified production standards
