60W LED Fresnel Spotlight 3200K-5600K CCT with DMX Control

60W LED Fresnel Spotlight 3200K-5600K CCT with DMX Control

60W LED Fresnel Spotlight 3200K-5600K CCT with DMX Control

Brand Name:	Wincode Optronics
MOQ:	2
Price:	$145-155

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Color Temperature:

3200K/5600K

Luminous Efficiency:

90 Lm/w

Color Rendering Index:

Ra92

Input Voltage:

AC90-240V 50-60Hz

Lifespan:

50000 Hours

Product Weight:

4 Kg

Luminous Flux:

1400 Lm

Working Temperature:

-20 - 40 ℃

IP Rating:

IP20

Beam Angle:

19°/26°/36°/50°

Control System:

RDM / DMX

Cooling System:

No Noise Fan

LED Power:

60W

Max Power Consumption:

78W

Net Weight:

2.28 Kg

Highlight:

60W LED Fresnel spotlight with DMX

,

LED studio light 3200K-5600K CCT

,

DMX controllable Fresnel spotlight 60W

Product Description

Custom Professional Audio LED Theatre Fresnel Mini Fresnel Light 60W LED Spot Light

Product Specifications

Attribute	Value
Color Temperature (CCT)	3200K/5600K
Lamp Luminous Efficiency (lm/w)	90
Color Rendering Index (Ra)	92
Input Voltage	AC90-240V 50-60Hz
Type	Profile Spotlights
Lifespan	50,000 hours
Product Weight	4 kg
Working Temperature	-20°C to 40°C
IP Rating	IP20
Material	Aluminum Body
Beam Angle	19°/26°/36°/50° (optional)
Control	RDM / DMX
Warranty	1-Year

Key Features

High-quality optical system with glass aspherical lens
No noise fan cooling system (copper tube)
0-100% linear dimming capability
Manual focus adjustment
DMX512 control with master/slave and auto running modes
Compact and lightweight aluminum housing
Suitable for theater, auditorium, conference, stage, and wedding applications

Technical Details

LED Power	60W
Light Color	Single WW / CW
Max Power Consumption	78W
Beam Angle	Zoom from 35° to 50°
Strobe	1-25 times/sec
Net Weight	2.28 kg
Gross Weight	3.5 kg

Product Images

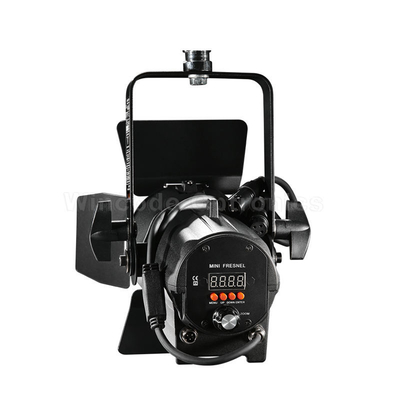

60W LED Fresnel Spotlight 3200K-5600K CCT with DMX Control 0

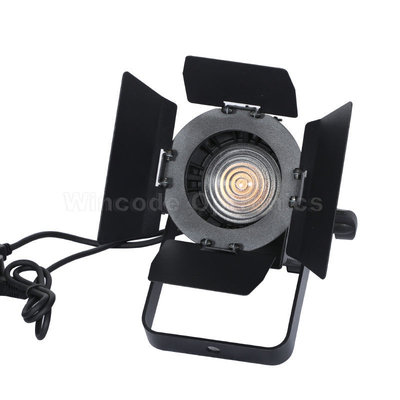

60W LED Fresnel Spotlight 3200K-5600K CCT with DMX Control 1

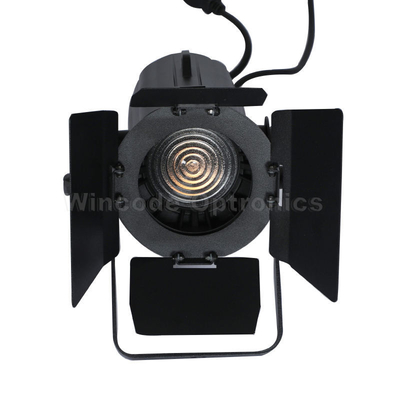

60W LED Fresnel Spotlight 3200K-5600K CCT with DMX Control 2

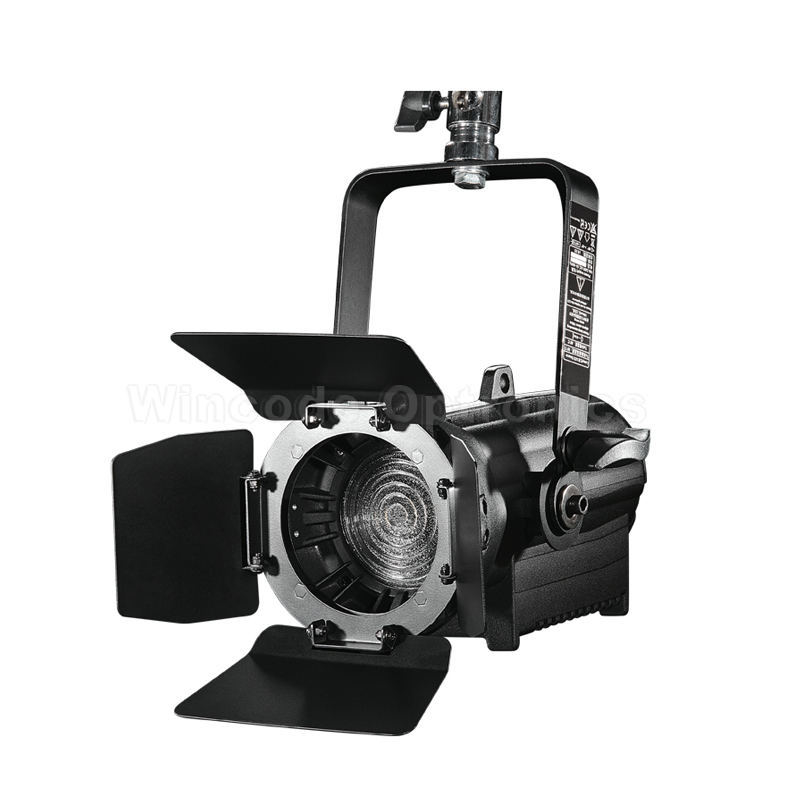

60W LED Fresnel Spotlight 3200K-5600K CCT with DMX Control 3

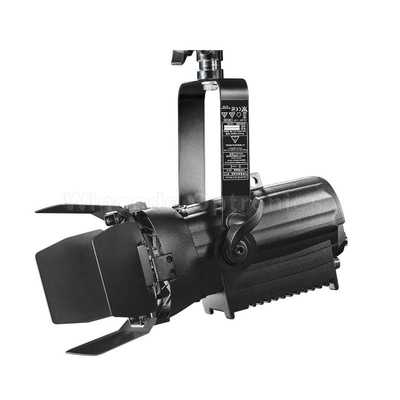

60W LED Fresnel Spotlight 3200K-5600K CCT with DMX Control 4

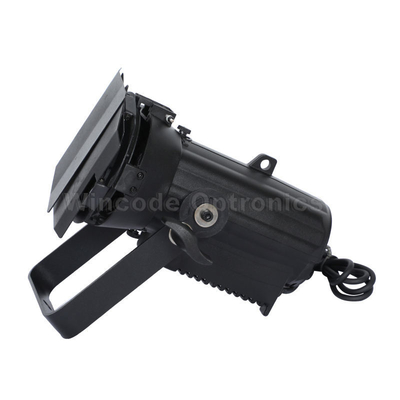

60W LED Fresnel Spotlight 3200K-5600K CCT with DMX Control 5

Project Case

60W LED Fresnel Spotlight 3200K-5600K CCT with DMX Control 6

Manufacturer Advantages

15 years experience in stage lighting manufacturing
Support ODM, OEM & RTS services
Complete design services from concept to 3D modeling
Integrated circuit design capability
100% quality inspection before packing
ISO9001 certified manufacturing standards

Packing & Shipping

60W LED Fresnel Spotlight 3200K-5600K CCT with DMX Control 7

60W LED Fresnel Spotlight 3200K-5600K CCT with DMX Control 8
