High Speed DMX Strobe Bar 1-20Hz Adjustable 5-Core XLR Connection Temperature Protection

High Speed DMX Strobe Bar 1-20Hz Adjustable 5-Core XLR Connection Temperature Protection

Brand Name: Wincode Optronics
Model Number: WOP-LS2883
MOQ: 2 pcs
Price: negotiation
Payment Terms: T/T,L/C,Western Union,MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Place of Origin:
Guangdong
Certification:
CE/ROHS
Produce Name:
IP65 Waterproof LED Pixel Strobe Bar
Channel Modes:
4/14/62/192/206 CH
Dimming Mode:
4 Modes
Product Size:
1000 × 98 × 195 Mm
Data Connection:
5-pin XLR Input/output
Protection Level:
IP65
CW Beam Angle:
X/85° Y/20°
RGB Beam Angle:
X/76° Y/59°
Weight:
10KG
Packaging Details:
Exported carton box / flight case
Highlight:

20Hz Adjustable DMX Strobe Bar

,

Temperature Protection DMX Strobe Bar

Product Description

High-Speed DMX Strobe Bar | 1-20Hz Adjustable | 5-Core XLR Connection | Temperature Protection




High Speed DMX Strobe Bar 1-20Hz Adjustable 5-Core XLR Connection Temperature Protection 0





Product Introduction:



        1. Creative Lighting Solution with Superior Pixel Control
          With 1,152 individual LEDs (288 CW + 864 RGB), this pixel strobe bar opens up endless creative possibilities. The asymmetrical beam angles (76° RGB/85° CW) create unique lighting patterns, while the software-updatable via DMX ensures your fixture stays current with the latest features. The aluminum die-cast housing provides excellent heat dissipation without noisy fans, making it perfect for noise-sensitive environments like theaters or television studios.




Parameters:

Power supply:   AC110V-250V,50-60Hz
Rated Power  400W
Light source   288 × 3W CW + 864 × 0.5W RGB
RGB beam Angle      X/76° Y/59°
CW beam Angle

    X/85° Y/20°

 Average life   50000 H
Strobe    Fast electronic stroboscopic 1-20 Hz
Dimming Mode     4 modes
Control channel      3 modes (15/50/158 CH)
Color Performance  Uniform RGB color mixing system and rainbow effect
Create infinite movement, infinite color changes
Channel Mode 4/14/62/192/206 CH
Data Connection 5-pin XLR input/output
Control Protocol  DMX512
Material    die-casting alluminum
Protection level     IP65
Cooling    natural heat dissipation
Net.Weight:     10kg


Our service:

 Trade Term


  EXW Price

Payment terms


  TT / Western union / Money Gram, Cash
  50 %deposit prepaid before production, And balance paid before delivery.

Shipping Methods


  1. by Express ( DHL, UPS, FEDEX, TNT, EMS)
  2. by Air to your nearest airport
  3. by Sea to your nearest seaport

Sample order delivery


  1 to 3 working days

Mass order Production time   5-20 days, subject to the order quantity


Packing


  1. Using EPE packing the goods in case of damage
  2. Then put it into the Standard carton
  3. Flight case / Plywood case optional


After Sale Service

 1. If there is a problem with the product, please describe it correctly and sent   the necessary picture or video to us for analyzing and sort out the problem.
  2. Then we will guide you how to fix it and provide free accessories if needed.
  3, For big problem, you can send the products back our factory, we will send you the new one.





Product Show:

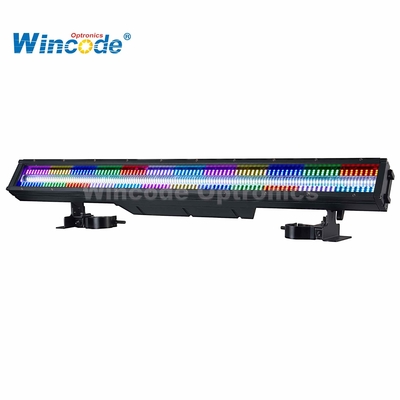

High Speed DMX Strobe Bar 1-20Hz Adjustable 5-Core XLR Connection Temperature Protection 1

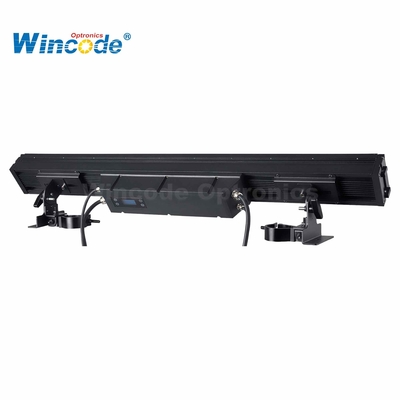

High Speed DMX Strobe Bar 1-20Hz Adjustable 5-Core XLR Connection Temperature Protection 2

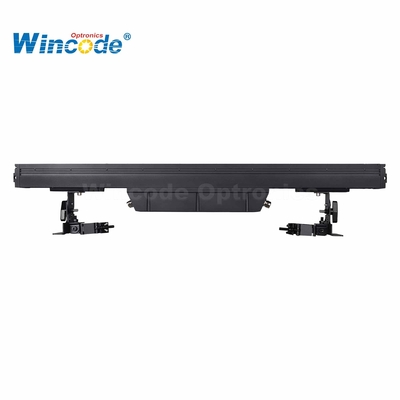

High Speed DMX Strobe Bar 1-20Hz Adjustable 5-Core XLR Connection Temperature Protection 3






Applications:
Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio and other entertainment centers

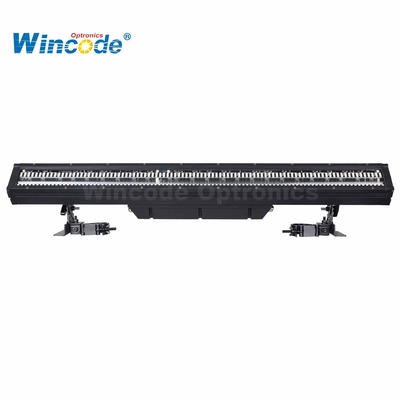

High Speed DMX Strobe Bar 1-20Hz Adjustable 5-Core XLR Connection Temperature Protection 4
HIGH QUALITY:
Production according to ISO9001:2008 quality system UL,CE and ROHS authentication.
High Speed DMX Strobe Bar 1-20Hz Adjustable 5-Core XLR Connection Temperature Protection 5
High Speed DMX Strobe Bar 1-20Hz Adjustable 5-Core XLR Connection Temperature Protection 6
FAQ
Q1. What payment modes are available?
T/T, Western Uion, Paypal , Money Gram are acceptable.
Q2. What’s the lead time for my order?
Usually for sample order, it takes roughly 5-7 business days.
While official mass order will take 15 to 20 business days to ship.
Q3. How long can I get the lights?
That depends on shipping method as agreed. Normally you can receive the goods within 1 week if shipped by DHL, UPS, FedEx and TNT express, while 1 month later if shipped by boat.
Q4.What is your warranty policy?

A: We provide One Year Warranty for all of our products. Or even longer warranty service for some special items.
Q5. What if problem occurred to my light device during use?

Firstly, photos and small videos to show the faulty are required. Our technique team will analysis and sort out the problem, then provide you the right solution by telling you way to fix or send spare parts.
High Speed DMX Strobe Bar 1-20Hz Adjustable 5-Core XLR Connection Temperature Protection 7
