RDM DMX IP65 Waterproof LED Wash Pixel Moving Head 7pcs 60W

Brand Name:	Wincode Optronics
Model Number:	WOP-LM760IP B
MOQ:	2 pcs
Price:	negotiation
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	1000pcs/month

Detail Information

Place of Origin:

Guangdong

Certification:

CE/ROHS

Produce Name:

Waterproof LED Wash Pixel Beam Zoom Moving Head

Light Source:

7×60W RGBW 4 In 1 LEDs

Zoom:

4°-55°

Movement:

540 °Pan, 220 ° Tilt

Feature:

Magnetic Coding Positioning

OEM:

YES

CCT:

2500-10000K

CRI:

60Ra

Cooling:

Over Temperature Automatic Adjustment Protection

Display:

1.77-inch LCD Screen

Packaging Details:

Exported carton box / flight case

Highlight:

Product Description

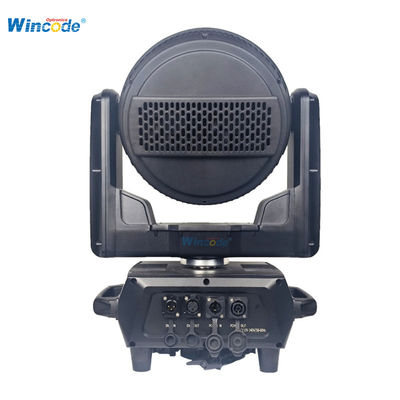

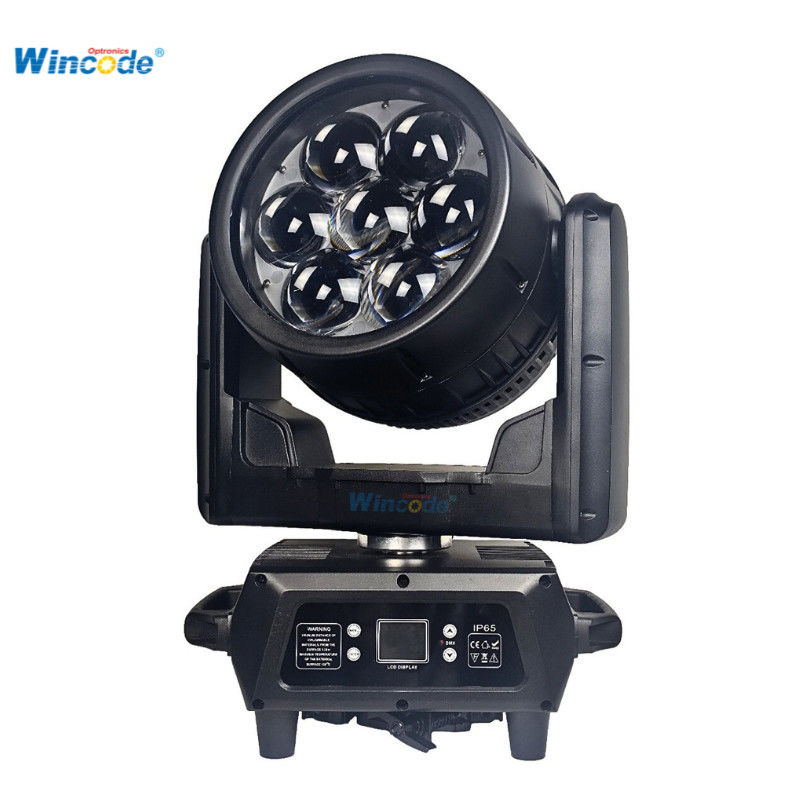

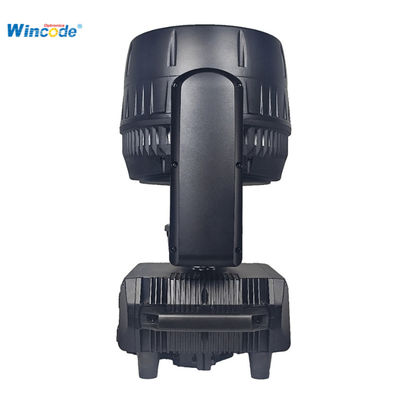

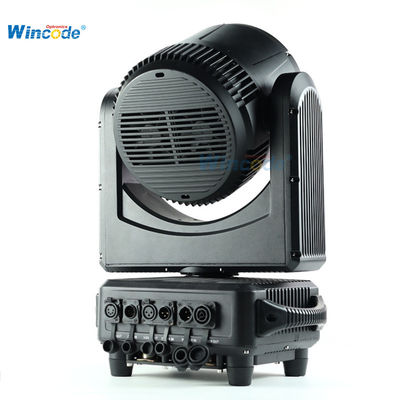

RDM DMX IP65 Waterproof LED Wash Pixel Moving Head 7pcs 60W

RDM DMX IP65 Waterproof LED Wash Pixel Moving Head 7pcs 60W 0

Parameter Table:

Code	WOP-LM760IP B
Product Name	7*60W led wash pxiel moving head
Voltage:	AC90-240v 50-60HZ
Rated power:	480W
Light source:	7x 60W(4in1 RGBW)high brightness LEDs
Average lifespan:	50000h
Control methods:	DMX512, RDM, master-slave mode, USB, ARTNET protocol (according to requirements)
Strobe:	1-25HZ with multiple strobe effects
Dimming:	Electronic dimming
Channel Modes:	built-in 3 channel modes 23CH/35CH/51CH (expandable)
Control:	DMX512,Auto,RDM, Art-Net (Support for additional installation)
Pan:	540°+16bit fine ;
Tilt:	220°+16bit fine
Zoom system:	linear electric zoom
Strobe:	1K-25Hz
Weight:	NW.:19.5kg GW.: 22.5 kg

Product advantages:

Optical system: high-precision single lens structure, high transmittance quartz glass rod+PMMA lens
Optical angle: adjustable from 4 ° to 55 °
Beam: Outstanding small angle beam effect
Wash : evenly spread light at medium to large angles
Color: RGBW color mixing system, uniform color mixing without flicker, fast color rainbow effect
Adjustable color temperature: 2500-10000K
Effect macros: static effect macro function and dynamic effect macro function
Lens rotation: Optical lens with 360 ° infinite rotation, automatic error correction function for rotation,
variable kaleidoscope, small waist and other effects
Single point control: The light source supports individual independent control and color transformation
Display screen:1.77-inch LCD screen
