Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters

Brand Name:	Wincode Optronics
Model Number:	WOP-M480BSW

Detail Information

Product Description

Detail Information

Power:

800W

Feature:

Magnetic Encoder In Pan/ Tilt Operation

Strobe:

1-25 Hz With Pulse Effect

Application:

Stage,wedding,club,tour Show

Lamp:

Philips 480W/OSRAM470

Key Word:

LED BSW Moving Head

Channels:

34/39 DMX Channels

Dimmer:

0-100% Smooth Linear Dimmer

Highlight:

Tour Show LED Moving Head Light

Wedding LED Moving Head Light

Product Description

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters 0

Product Description:

Visual Excellence

Drench your audience in rich hues with 13 dichroic filters and seamless CMY mixing . The 480W Philips/OSRAM lamp ensures

blinding intensity, while the 42° zoom focuses light exactly where needed. Tilt 270° or pan 540° for dynamic sweeps, and layer effects

with prism wheels and frost. Ideal for DJs and theaters, its auto modes keep the show flowing. Ignite your creativity.

Features:

Color Wheel:

13 dichroic filters (deep red, deep blue, yellow, light green, magenta, lavender, pink, dark green, CTO 2700K, blue, orange,

CTO 3200K, Kongo blue) + white. Virtual Color wheel (Linear CMY) 66 preset colors

Static Gobo Wheel:

10 gobos + open, with rotation and running water effect

Rotation Gobo Wheel:

9 gobos + open

Prism:

2 prism wheels

Prism wheel 1:

Rotating 6-facet linear prism with continuous rotation in both directions

Rotating 8-facet 12° circular prism with continuous rotation in both directions

Rotating cylindrical prism with continuous rotation in both directions

Prism wheel 2:

Rotating 6-facet linear prism with continuous rotation in both directions

Rotating 32-facet circular prism with continuous rotation in both directions

Rotating 8-facet 18° circular prism with continuous rotation in both directions

Technical Parameters:

Voltage	AC100-240V, 50-60Hz
Power	800W
Light Source	Philips 480W/OSRAM470
CCT	7500K-8500K
Bulb Life	1500 Hours
Channel Mode	34H/39 DMX channel
Control Mode	DMX/Master-slave/Auto/Sound activated,RDM,
Pan Movement	540 degree + fine (Magnetic encoder)
Tilt Movement	270 degree + fine (Magnetic encoder)
Zoom Angle	3°-42°
Strobe	1-25 Hz with pulse effect
Dimmer	0-100% smooth linear dimmer

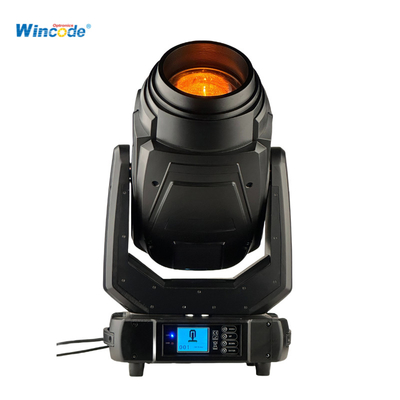

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters 1

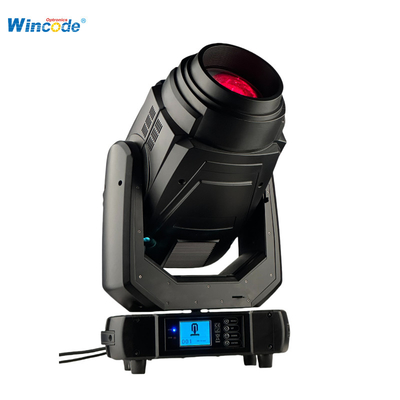

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters 2

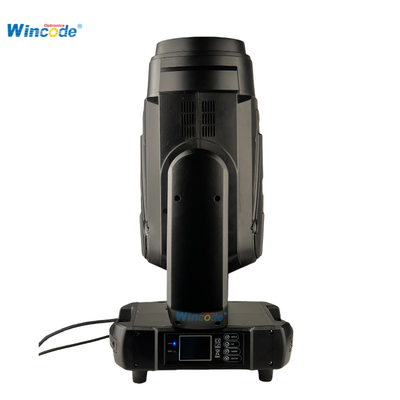

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters 3

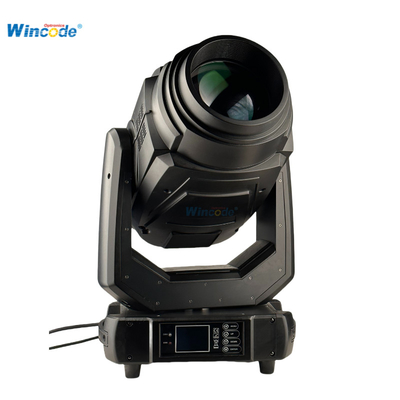

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters 4

Applications:

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters 5

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters 6

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters 7

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters 8

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters 9

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters 10

Professional Tour Show Moving Head Light with 0-100% Smooth Linear Dimmer and 13 Dichroic Filters 11
