products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Beam Moving Head Light
Created with Pixso.

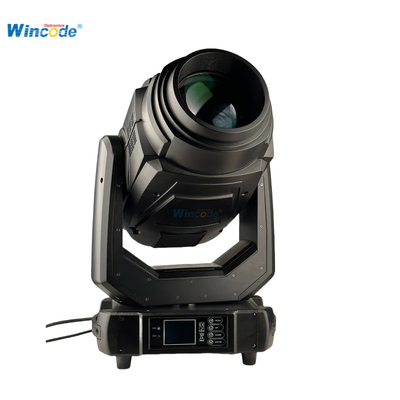

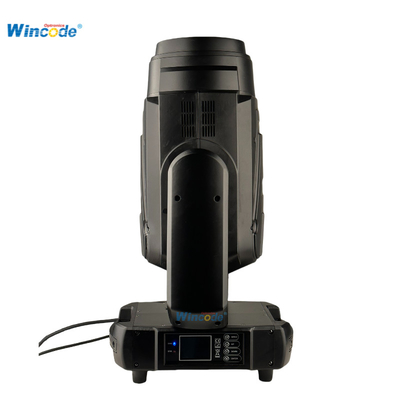

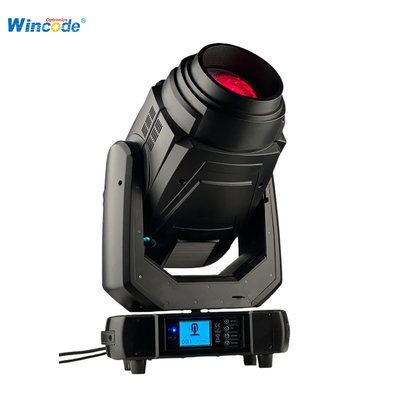

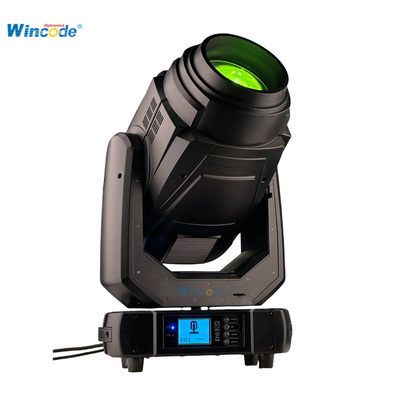

480W Robe Megapoint Professional Stage Lighting BSW Moving Head Light With 3-pins 5 Pins XLR Dmx Connector

Name

480W Robe Megapoint Professional Stage Lighting BSW Moving Head Light With 3-pins 5 Pins XLR Dmx Connector

Brand Name: Wincode Optronics
Model Number: WOP-M480BSW
Detail Information
Product Description
Detail Information
Dimmer:
0-100% Smooth Linear Dimmer
Prism System:
Multiple Prism System
Strobe:
1-25 Hz With Pulse Effect
Channels:
34/39 DMX Channels
Control Mode:
DMX/Master-slave/Auto/Sound Activated
Life:
1500 Hours
Power:
800W
Zoom Angle:
3°-42°
Highlight:

3 Pins LED Moving Head Light

,

5 Pins LED Moving Head Light

Product Description

480W Robe Megapoint Professional Stage Lighting BSW Moving Head Light With 3-pins 5 Pins XLR Dmx Connector


480W Robe Megapoint Professional Stage Lighting BSW Moving Head Light With 3-pins 5 Pins XLR Dmx Connector 0


Features:

Color Wheel:

  • 13 dichroic filters (deep red, deep blue, yellow, light green, magenta, lavender, pink, dark green, CTO 2700K, blue, orange,
  • CTO 3200K, Kongo blue) + white
  • Virtual Colour wheel (Linear CMY)
  • 66 preset colours

Static Gobo Wheel:

  • 10 gobos + open, with rotation and running water effect

Rotation Gobo Wheel:

  • 9 gobos + open

Prism:

  • 2 prism wheels
  • Prism wheel 1:
    • Rotating 6-facet linear prism with continuous rotation in both directions
    • Rotating 8-facet 12° circular prism with continuous rotation in both directions
    • Rotating cylindrical prism with continuous rotation in both directions
  • Prism wheel 2:
    • Rotating 6-facet linear prism with continuous rotation in both directions
    • Rotating 32-facet circular prism with continuous rotation in both directions
    • Rotating 8-facet 18° circular prism with continuous rotation in both directions

Technical Parameters:

Voltage:  AC100-240V, 50-60Hz
Power:  800W
Light Source: Philips 480W/OSRAM470
Color Temperature: 7500K-8500K
Lamp Life Time:  1500 Hours
Channel: 34H/39 DMX channel
Control:  DMX/Master-slave/Auto/Sound activated
Pan: 540 degree + fine (Magnetic encoder)
Tilt:  270 degree + fine (Magnetic encoder)
Zoom Angle: 3°-42°
Dimmer: 0-100% smooth linear dimmer
Strobe:

1-25 Hz with pulse effect





480W Robe Megapoint Professional Stage Lighting BSW Moving Head Light With 3-pins 5 Pins XLR Dmx Connector 1

480W Robe Megapoint Professional Stage Lighting BSW Moving Head Light With 3-pins 5 Pins XLR Dmx Connector 2

480W Robe Megapoint Professional Stage Lighting BSW Moving Head Light With 3-pins 5 Pins XLR Dmx Connector 3


Applications:

480W Robe Megapoint Professional Stage Lighting BSW Moving Head Light With 3-pins 5 Pins XLR Dmx Connector 4

480W Robe Megapoint Professional Stage Lighting BSW Moving Head Light With 3-pins 5 Pins XLR Dmx Connector 5

480W Robe Megapoint Professional Stage Lighting BSW Moving Head Light With 3-pins 5 Pins XLR Dmx Connector 6

480W Robe Megapoint Professional Stage Lighting BSW Moving Head Light With 3-pins 5 Pins XLR Dmx Connector 7

480W Robe Megapoint Professional Stage Lighting BSW Moving Head Light With 3-pins 5 Pins XLR Dmx Connector 8
