34 DMX Channels Moving Head Light With Philips 480W/OSRAM470 Lamp And Magnetic Encoder In Pan / Tilt Operation

Name

34 DMX Channels Moving Head Light With Philips 480W/OSRAM470 Lamp And Magnetic Encoder In Pan / Tilt Operation

Brand Name: Wincode Optronics
Model Number: WOP-M480BSW
MOQ: 2
Price: 1100
Detail Information
Product Description
Detail Information
Control Mode:
DMX/Master-slave/Auto/Sound Activated
Key Word:
Robe Megapointe 480W BSW Moving Head
Power:
800W
Application:
Stage,wedding,club,tour Show
Strobe:
1-25 Hz With Pulse Effect
Channels:
34/39 DMX Channels
Feature:
Magnetic Encoder In Pan/ Tilt Operation
Zoom Angle:
3°-42°
Highlight:

Magnetic Encoder LED Moving Head Light

,

Philips 480W LED Moving Head Light

Product Description

34 DMX Channels LED Moving Head Light with Philips 480W/OSRAM470 Lamp and Magnetic Encoder In Pan/ Tilt Operation

Product Description:

Unleash Brilliance on Stage

Transform any venue into a visual masterpiece with our 480W BSW moving head light  . Boasting a 540° pan and 270° tilt range , this powerhouse delivers magnetic encoder precision for flawless movement. With 13 dichroic filters , CMY color mixing , and 66 presets , craft vibrant hues in seconds. The dual prism wheels and 19 gobos add depth, while the 42° zoom adapts to any space. Perfect for concerts, theaters, or events, this light thrives under DMX  , sound, or auto modes. Elevate your show – order today and command the stage!

Features:

Color Wheel:

  • 13 dichroic filters (deep red, deep blue, yellow, light green, magenta, lavender, pink, dark green, CTO 2700K, blue, orange, CTO 3200K, Kongo blue) + white
  • Virtual Colour wheel (Linear CMY)
  • 66 preset colours



Static Gobo Wheel:
10 gobos + open, with rotation and running water effect

Rotation Gobo Wheel:
9 gobos + open

Prism:

  • 2 prism wheels
  • Prism wheel 1:
    • Rotating 6-facet linear prism with continuous rotation in both directions
    • Rotating 8-facet 12° circular prism with continuous rotation in both directions
    • Rotating cylindrical prism with continuous rotation in both directions
  • Prism wheel 2:
    • Rotating 6-facet linear prism with continuous rotation in both directions
    • Rotating 32-facet circular prism with continuous rotation in both directions
    • Rotating 8-facet 18° circular prism with continuous rotation in both directions





Technical Parameters:

Voltage AC100-240V, 50-60Hz
Power   800W
Light Source Philips 480W/OSRAM470
Color Temperature 7500K-8500K
Lamp Life Span 1500 Hours
Channels 34H/39 DMX channel
Control DMX/Master-slave/Auto/Sound activated
Pan 540 degree + fine (Magnetic encoder)
Tilt 270 degree + fine (Magnetic encoder)
Zoom Angle 3°-42°
Dimmer 0-100% smooth linear dimmer
Strobe 1-25 Hz with pulse effect

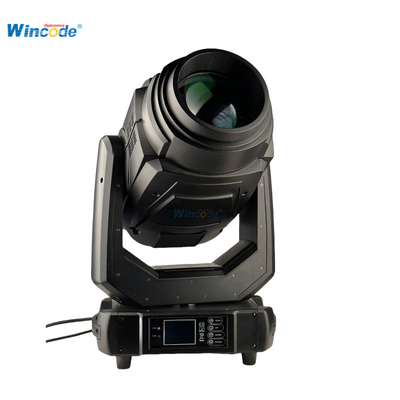

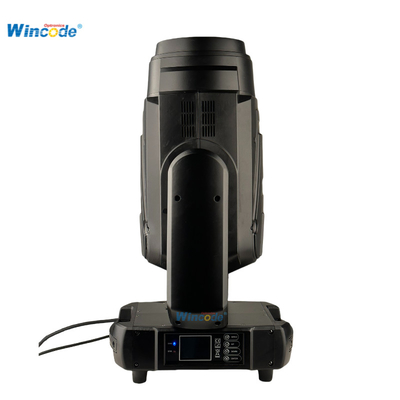

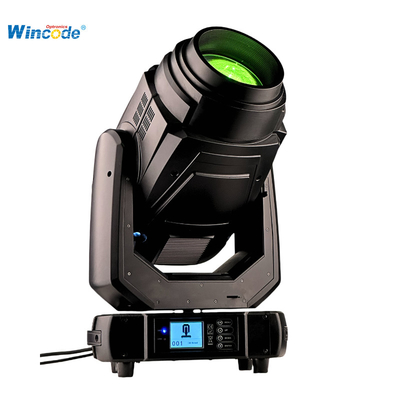

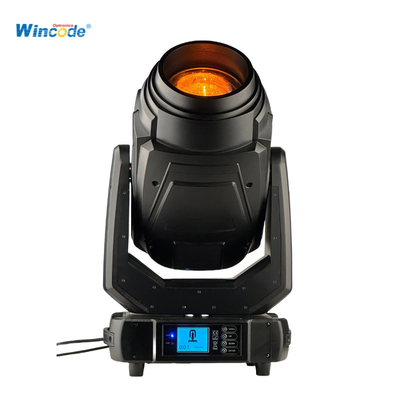

Product Show:

34 DMX Channels Moving Head Light With Philips 480W/OSRAM470 Lamp And Magnetic Encoder In Pan / Tilt Operation 0

34 DMX Channels Moving Head Light With Philips 480W/OSRAM470 Lamp And Magnetic Encoder In Pan / Tilt Operation 1

34 DMX Channels Moving Head Light With Philips 480W/OSRAM470 Lamp And Magnetic Encoder In Pan / Tilt Operation 2

Project Cases:

34 DMX Channels Moving Head Light With Philips 480W/OSRAM470 Lamp And Magnetic Encoder In Pan / Tilt Operation 3

34 DMX Channels Moving Head Light With Philips 480W/OSRAM470 Lamp And Magnetic Encoder In Pan / Tilt Operation 4

34 DMX Channels Moving Head Light With Philips 480W/OSRAM470 Lamp And Magnetic Encoder In Pan / Tilt Operation 5
