Beam Moving Head Light
Created with Pixso.

Magnetic Encoder 480W Robe Megapointe Moving Head Light Advanced Prism System For Professional Lighting

Magnetic Encoder 480W Robe Megapointe Moving Head Light Advanced Prism System For Professional Lighting

Brand Name: Wincode Optronics
Model Number: WOP-M480BSW
Detail Information
Dimmer:
0-100% Smooth Linear Dimmer
Zoom Angle:
3°-42°
Life:
1500 Hours
Lamp:
Philips 480W/OSRAM470
Prism System:
Multiple Prism System
Dmx Connector:
3-pins & 5 Pins XLR
Channels:
34/39 DMX Channels
Control Mode:
DMX/Master-slave/Auto/Sound Activated
Highlight:

Professional Lighting LED Moving Head Light

,

Magnetic Encoder LED Moving Head Light

Product Description

Magnetic Encoder 480W Robe Megapointe Moving Head Light Advanced Prism System For Professional Lighting

Magnetic Encoder 480W Robe Megapointe Moving Head Light Advanced Prism System For Professional Lighting 0

Product Description:


Precision Meets Power

Command attention with 480W raw brightness and a 7500K-8500K color temperature. The magnetic encoder-driven pan/tilt ensures

pixel-perfect accuracy, while the 3°-42° zoom covers intimate clubs to sprawling arenas. Choose from 13 vivid dichroic colors or blend

custom shades via the linear CMY system. Dual prism wheels, strobe effects up to 25Hz, and frost filters unlock endless creativity.

Built for pros, its LCD display simplifies setup. Dominate your next event – upgrade to professional lighting now!

Adaptable Lighting for Various Events

From weddings to festivals, this moving head light adapts effortlessly. The 34/39 DMX channels offer granular control, while sound

 activation syncs beats to strobes and color shifts. The 10 static and 9 rotating gobos project intricate patterns, enhanced by 6/8/32-facet

 prisms. With a 1500-hour lamp life and universal voltage, it’s reliable for global tours.

Stop compromising – create unforgettable visuals today!  Create Magical Atmospheres


Color Wheel:

13 dichroic filters available: deep red, deep blue, yellow, light green, magenta, lavender, pink, dark green, CTO 2700K, blue, orange,

CTO 3200K, Kongo blue, and white.


Virtual Colour Wheel (Linear CMY):

Offers 66 preset colors to choose from.


Static Gobo Wheel:

Consists of 10 gobos plus an open position, with rotation capabilities and running water effect.


Rotation Gobo Wheel:

Comprises 9 gobos plus an open position.


Prism:

Includes 2 prism wheels:

  • Prism Wheel 1:
    • Rotating 6-facet linear prism with continuous rotation in both directions
    • Rotating 8-facet 12° circular prism with continuous rotation in both directions
    • Rotating cylindrical prism with continuous rotation in both directions
  • Prism Wheel 2:
    • Rotating 6-facet linear prism with continuous rotation in both directions
    • Rotating 32-facet circular prism with continuous rotation in both directions
    • Rotating 8-facet 18° circular prism with continuous rotation in both directions

Technical Parameters:

Voltage:   AC100-240V, 50-60Hz
Power:   800W
Light Source:   Philips 480W/OSRAM470
Color Temperature:   7500K-8500K
Lamp Life Time:   1500 Hours
Channel:   34H/39 DMX channel
Control:   DMX/Master-slave/Auto/Sound activated
Pan:   540 degree + fine(Magnetic encoder)
Tilt:  270 degree + fine(Magnetic encoder)
Zoom Angle:  3°-42°
Dimmer:   0-100% smooth linear dimmer
Strobe:   1-25 Hz with pulse effect

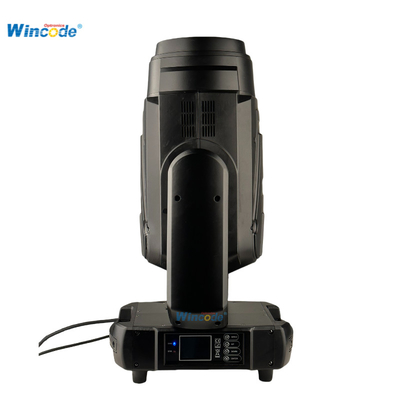

Magnetic Encoder 480W Robe Megapointe Moving Head Light Advanced Prism System For Professional Lighting 1

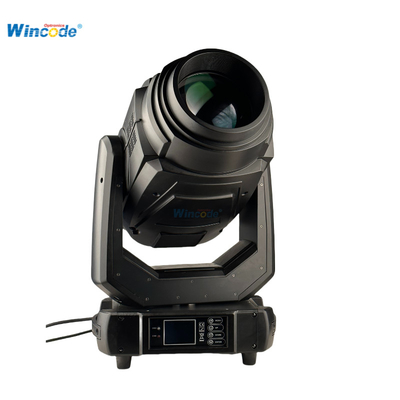

Magnetic Encoder 480W Robe Megapointe Moving Head Light Advanced Prism System For Professional Lighting 2

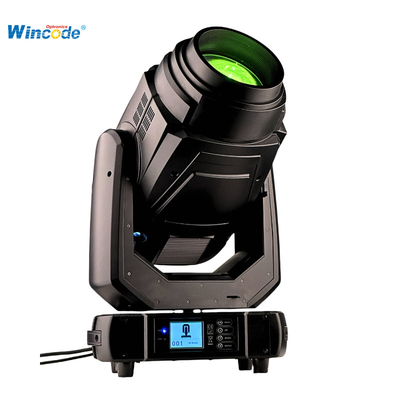

Magnetic Encoder 480W Robe Megapointe Moving Head Light Advanced Prism System For Professional Lighting 3









Applications:

LED Moving Head Light WOP-M480BSW from Wincode Optronics is a versatile lighting fixture suitable for a wide range of applications. With its innovative features and high-quality construction, this product is perfect for various occasions and scenarios.

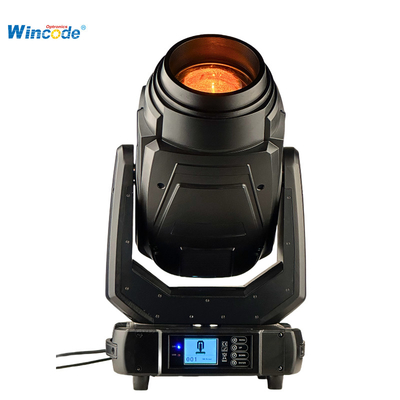

Magnetic Encoder 480W Robe Megapointe Moving Head Light Advanced Prism System For Professional Lighting 4

Magnetic Encoder 480W Robe Megapointe Moving Head Light Advanced Prism System For Professional Lighting 5

Magnetic Encoder 480W Robe Megapointe Moving Head Light Advanced Prism System For Professional Lighting 6

Magnetic Encoder 480W Robe Megapointe Moving Head Light Advanced Prism System For Professional Lighting 7

Magnetic Encoder 480W Robe Megapointe Moving Head Light Advanced Prism System For Professional Lighting 8
