| Place of Origin: | Guangdong |
|---|---|
| Brand Name: | Wincode Optronics |
| Certification: | CE/ROHS |
| Model Number: | WOP-M2 |
| Minimum Order Quantity: | 2 pcs |
| Price: | negotiation |
| Packaging Details: | Exported carton box / flight case |
| Delivery Time: | 3-5 working days after received your payment |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/month |

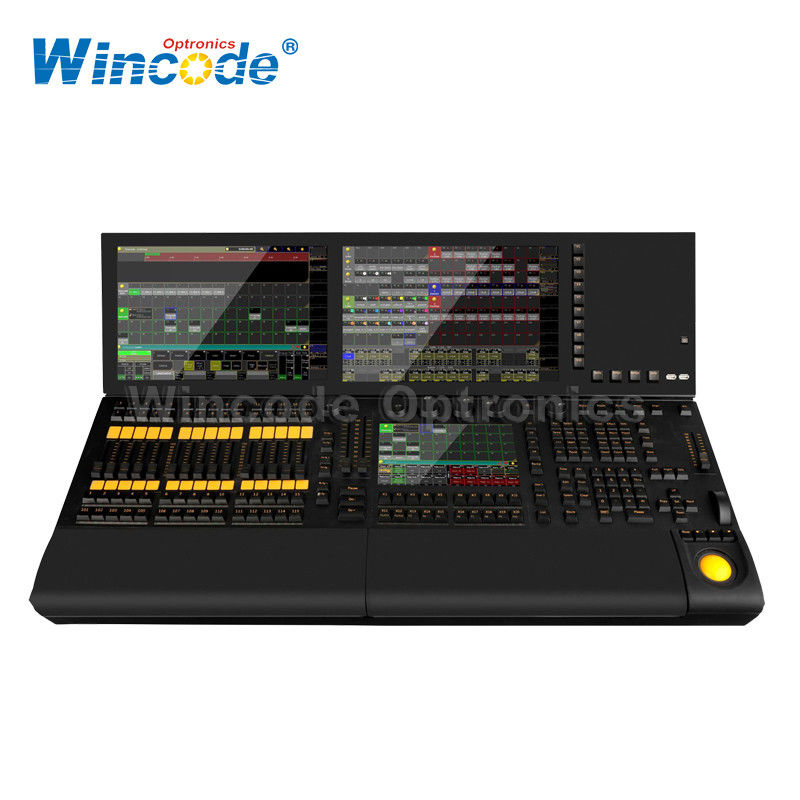

| Item: | MA DMX Controller | System: | Linux Operation System |
|---|---|---|---|
| Memory: | 4G | Max Channel Bearing: | Up To 65536 Channels Via NPU |
| Fader Number: | 30 Faders With Sensor Function | Buttons: | 50 Executive Buttons |
| USB Ports: | 5 USB Ports, 1 Backup USB Port | Output: | 6 DMX Outputs Plus 1 Dual Port (in Or Out ) |
| In/Out Connector: | MIDI In / Out Connector | UPS: | Built-in High Power UPS |
| RDM: | Available | ||
| High Light: | 4G DMX Light Board Controller,RDM DMX Light Board Controller,100mm Lighting Dmx Controller |
||
Brief Features:
• Linux operating system
• Built-in high power UPS uninterruptible power supply
• Support RDM function
• Powerful i5CPU, 4G memory, built-in solid state drive
• Up to 65536 channels can be connected to the NPU
• Wide-voltage industrial power supply 100V-240V 50/60Hz
• Built-in high power UPS uninterruptible power supply
• Support RDM function"
• MIDI input and output interface
Tech Parameters:
| Feature Number | Feature |
| 1 | 1 total control putter, 1 dimming wheel |
| 1 | 1 controllable XY axis high precision imported trackball |
| 1 |
1 Built-in drawer, built-in yellow backlit mechanical keyboard (backlight brightness adjustable) |
| 2 | 2 Built-in electric lift 15.4 inch industrial full-view touch screen, 1 9-inch touch screen |
| 2 | 2 A/B field electric push rods (100mm) |
| 2 | 2 Gigabit Ethernet ports, support MA NET, ARTNET and other signals |
| 2 | 2 work light interfaces |
| 2 | 2 DVI interfaces, expandable two displays |
| 5 | 5 USB ports, 1 backup USB port |
| 6 | 6 DMX output ports, 1 composite DMX input port (can be set as output) |
| 6 | 6 imported industrial grade wear-resistant encoders (with Push function) |
| 15 | 15 electric replay faders with sensor function (60mm), 50 executive buttons |
