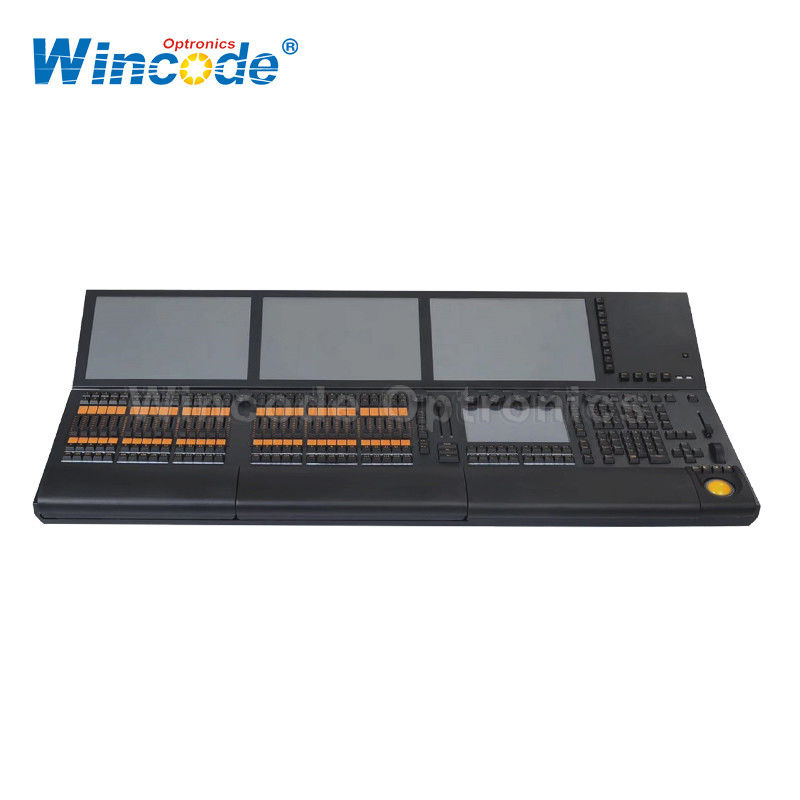

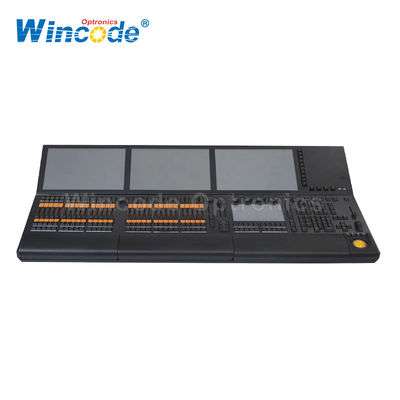

Linux System MA DMX Lighting Controller For Show

Brand Name:	Wincode Optronics
Model Number:	WOP-MA3
MOQ:	2 pcs
Price:	negotiation
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1000pcs/month

Detail Information

Place of Origin:

Guangdong

Certification:

CE/ROHS

Item:

MA DMX Controller

Operation Sys:

Linux

CPU:

Max Channel Bearing:

Up To 65536 Channels Via NPU

Fader Number:

30 Faders With Sensor Function

USB Ports:

5 USB Ports With Extra 1 Backup USB Port

Signal:

Support MA NET, ARTNET Signals

Output:

6 DMX Outputs Plus 1 Dual Port (in Or Out )

In/Out Connector:

MIDI In / Out Connector

Builto-in UPS:

YES

Built-in RDM:

YES

Packaging Details:

Exported carton box / flight case

Highlight:

Product Description

Brief Features:

• Linux operating system

• Built-in high power UPS uninterruptible power supply

• Support RDM function

• Powerful i5CPU, 4G memory, built-in solid state drive

• 6 DMX output ports, 1 composite DMX input port (can be set as output)

• Up to 65536 channels can be connected to the NPU

Tech Parameters:

Screen	Built-in 3 electric lifting 15.4-inch industrial full-view touch screen, 1 9-inch touch screen
Faders & Buttons	30 electric replay faders with sensor function (60mm), 80 executive buttons
Putter & Dimiming Wheel	1 total control putter • 1 dimming wheel
XY Trackball	1 controllable XY axis high precision imported trackball
Push Rod	2 A/B field electric push rods (100mm)
Encoder	7 imported industrial grade wear-resistant encoders (with Push function)
Ethernet Ports	2 Gigabit Ethernet ports, support MA NET, ARTNET, etc.
USB Ports	5 USB ports, 1 backup USB port
Device Connector Port	2 work light interfaces
DVI Port	2 DVI interfaces, expandable two displays
Input& Output	MIDI input and output interface
Keyboards	Built-in 2 drawers, built-in yellow backlit mechanical keyboard (backlight brightness adjustable)
Voltage	Wide-voltage industrial power supply 100V-240V 50/60Hz
UPS	Powerful Built-in UPS
