| Place of Origin: | Guangdong |
|---|---|
| Brand Name: | Wincode Optronics |
| Certification: | CE/ROHS |
| Model Number: | WOP-LE3008 |
| Minimum Order Quantity: | 2 pcs |
| Price: | negotiation |
| Packaging Details: | Exported carton box / flight case |
| Delivery Time: | 3-5 working days after received your payment |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/month |
| Light Source: | 1728 X 1W RGBW LEDs | Beam Angle: | 98° |
|---|---|---|---|
| Field Angle: | 156° | Output (constant): | 1282 LUX @ 5 Meters |
| Output (peak): | 150,000 Lumens | IP Rating: | IP65 |
| Flight Case: | Optional |

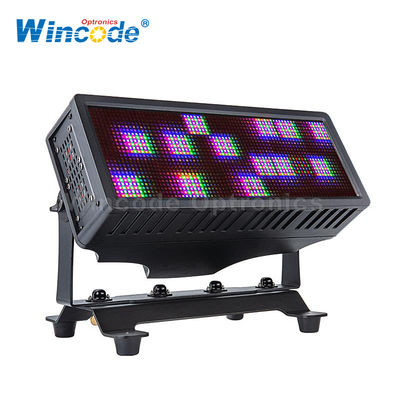

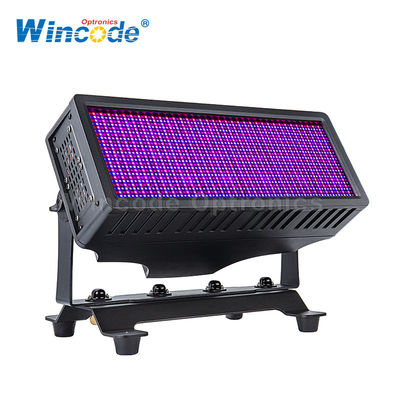

Moving Head LED Strobe Light with RDM Flicker Free
Product Oustandings:
The brightest two-layer pixel strobe on the planet
PIXEL LED STROBE - RGBW / IP65
1728 RGBW LEDS , 150000LUM
5M distance : 1200LUX (FULL LIGHTING)
Competitive Advantage:
|
• The brightest two-layer pixel strobe on the planet |
|
• 48 individually controllable segments for dynamic effects and visuals |
|
• Two-layer foreground and background colors and effects |
|
• Continuous operation possible due to advanced thermal design |
|
• Stunning selection of pre-programmed macros and special effects |
|
• Doubles as an LED blinder in continuous mode |
|
• IP65-rated tour-grade construction |
|
• DMX and Artnet control
|
Parameters:
| Voltage |
100 - 240 VAC, 50/60 Hz |
|
Consumption
|
590W (full-on constant output) |
|
Consumption |
1200W (peak instant strobe) |
|
Power connections |
IP65 PowerKon In/Out |
|
Data connections |
IP65 XLR In/Out for DMX, IP65 EtherCon for ArtNet |
|
Color Mixing |
RGBW |
|
Pixel Matrix |
4 x 12 |
|
Strobe |
0 ~ 30Hz |
|
Dimming |
4 dimming curve modes |
|
Protocol |
DMX, ArtNet AND RDM,Kling-net |
|
DMX Channels |
3 / 4-1 / 4-2 / 6 / 7 / 8 / 14 / 144 / 192 / 202 |
|
Built-in Programs |
YES |
|
Display |
TFT menu with four-button navigation |
|
Material |
Diecast Aluminum |
|
Finish |
Matte black |
|
IP rating |
IP65 |
|
Cooling |
Variable speed fans |
|
Ambient operating temps |
-20° ~ 40°C |
|
Dimensions |
475 x 179 x 268 mm |
|
Weight |
15KG |
|
Spare Parts: |
IP65 PowerKon (included) |
Applications:
Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers
Our service:
| Trade Term |
EXW Price
|
| Payment terms |
TT / Western union / Money Gram, Cash
50 %deposit prepaid before production, And balance paid before delivery.
|
| Shipping Methods |
1. by Express ( DHL, UPS, FEDEX, TNT, EMS) 2. by Air to your nearest airport 3. by Sea to your nearest seaport
|
| Sample order delivery |
1 to 3 working days
|
| Mass order Production time | 5-20 days, subject to the order quantity |
|
Packing
|
1. Using EPE packing the goods in case of damage 2. Then put it into the Standard carton 3. Flight case / Plywood case optional
|
|
After Sale Service
|
1. If there is a problem with the product, please describe it correctly and sent the necessary picture or video to us for analyzing and sort out the problem.
2. Then we will guide you how to fix it and provide free accessories if needed.
3, For big problem, you can send the products back our factory, we will send you the new one.
|
Product Show:
Applications:
Entertainment: Events, DJ, Disco, club, KTV, ballroom, theatre and other entertainment centers …
HIGH QUALITY:
Production according to ISO9001:2008 quality system UL,CE and ROHS authentication.
FAQ
Q1. What payment modes are available?
T/T, Western Uion, Paypal , Money Gram are acceptable.
Q2. How to order lighting items from you?
You can contact our sells personnel to confirm what you need. You will be receiving a proforma invoice to confirm order and pay.
Q3. How can I know the shipping status?
You will get a tracking number of the shipping after we sending out the goods, track it on the official website of the shipping (DHL, UPS etc.), you will see the latest status.
Q4.What is your warranty policy?
A: We provide One Year Warranty for all of our products. Or even longer warranty service for some special items.
Q5. What if problem occurred to my light device during use?
Firstly, photos and small videos to show the faulty are required. Our technique team will analysis and sort out the problem, then provide you the right solution by telling you way to fix or send spare parts.
