|Place of Origin:||Guangdong|
|Brand Name:||Wincode Optronics|
|Minimum Order Quantity:||2 pcs|
|Packaging Details:||Exported carton box / flight case|
|Delivery Time:||3-5 working days after received your payment|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Lamp:||300W Cool White LED||Average Lifetime::||≥100,000H|
|IP Rating:||IP 30||Beam Angle:||8- 38°|
|Data Connector:||3PIN/5PIN XLR DMX Input/outpiut||Display:||Blue LCD Display|
300W LED Hybrid Moving Head Light,
CRI90 Hybrid Moving Head Light,
CTO LED Moving Head Light

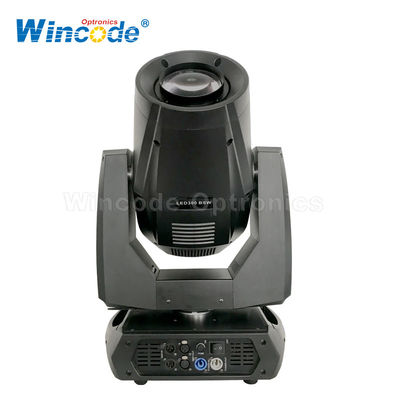

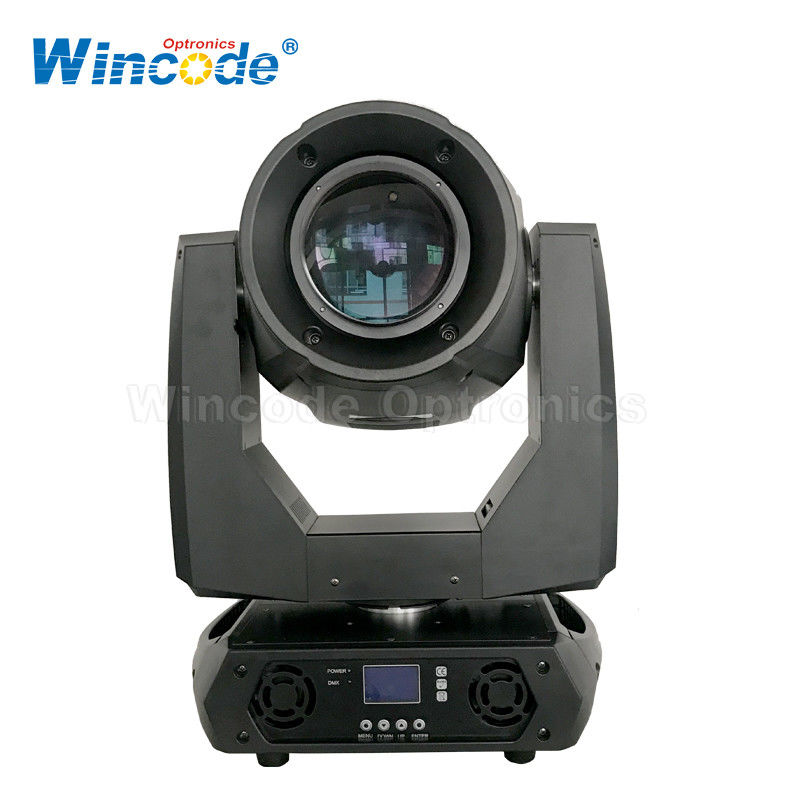

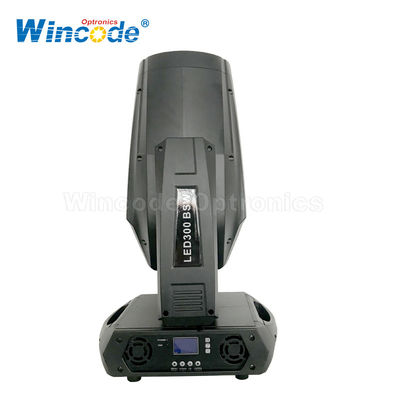

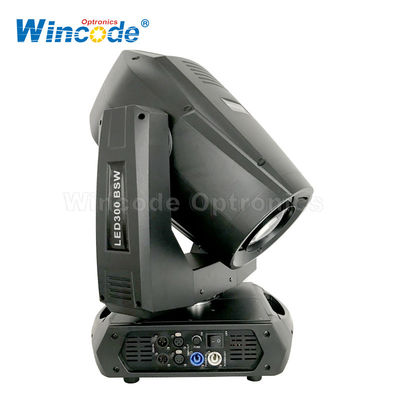

WOP-LM1013B 300W LED Hybrid Moving Head Light With CMY CTO
WOP-LM1013B 300W Hybrid Moving Head Light with CMY+CTO. 1pc 300W Cool white LED SOURCE 8-38°with large range zoom. Pan& Tilt
three phase motor response fastly and smoothly. With 11 fixed gobos and 7 rotated gobos, 10 colors with linear CMY and CTO, 3-face prism,
frost, iris. It’s the ideal choice for the stage lighting designers. DMX512, RDM support.
CMY mocros,CTO calibration system
10 colors+1 open Rainbow effect in both directions
With Animation wheel, prism and frost
|Fixing gobo wheel||
11 gobo+1 open
|Software updated||via DMX to update software, more convenient and faster.|
|Humanized display mode||press the "UP" key under the DMX interface can quickly make the display 180 ° rever|
- LED: 1 x 300W Cool White LED
- High efficiency optical system, delivering extremely powerful output
- High quality dichroic lenses
- Beam angle: 8- 38°
- Average lifetime: ≥100,000H
- CRI: ≥90
Pan & tilt movement angle
- Pan scanning: 540° 16bit precision movement
- Tilt scanning: 270° 16bit precision movement
- Automatic Pan/Tilt correction
- Fast electric strobe 1~25 Hz
- 0~100% smooth dimming, independent shutter and various strobe effect
- Gobo wheel: rotating gobo wheel 7 gobos+1 open
- Fixing gobo wheel: 11 gobo+1 open
- With Animation wheel, prism and frost
- Colours:10 colors+1 open Rainbow effect in both directions
- CMY mocros,CTO calibration system
Control and Program
- Protocal: DMX512,RDM
- Data connector: 3PIN/5PIN XLR DMX input/outpiut
- Display: Blue LCD Display
- Software updated: via DMX to update software, more convenient and faster.
- Humanized display mode, press the "UP" key under the DMX interface can quickly make the display 180 ° reverse
- Aluminium alloy + Plastic shell
- Voltage: AC 100V~240V 50/60Hz
- Rated power: 450W
- IP rating: IP 30
- Work environment: -5℃~45℃
Size and weight
- Size: 408mm x 293mm x 655mm
- N.W: 21 kg
Stage,Tour Show,Disco, Events, Concerts, Theater etc.
Production according to ISO9001:2008 quality system UL,CE and ROHS authentication.
Wincode Optronics to provide the following professional services:
-Over 10 years experiencesskillful workers assemble according to UL CE standard.
-Highquality meet different market, CE RoHs, UL, TUV...
-All products QC checked before package.
-Products improved from the public mold.
-Products can be customized, Hardware and software can be customized.
