| Place of Origin: | Guangdong |
|---|---|
| Brand Name: | Wincode Optronics |
| Certification: | CE/ROHS |
| Model Number: | WOP-IPS12155 |
| Minimum Order Quantity: | 12 |
| Price: | Negotiable |
| Packaging Details: | Carton box with shaped foam, paid flight case available |
| Delivery Time: | 5-8 business days |
| Payment Terms: | T/T, Western Union,Trade Assurance |
| Supply Ability: | 2000 pcs per month |

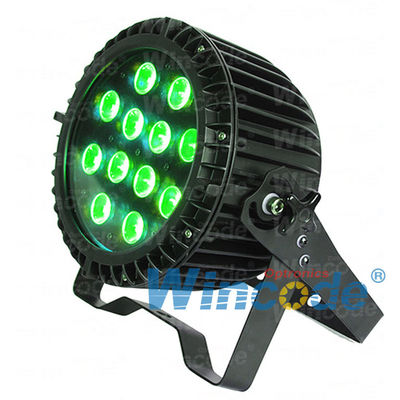

| Lamp: | 12x15w (RGBAW ) LEDs | Body: | Black Die-casting Alluminum |
|---|---|---|---|
| Brand: | Wincode Optronics | Lens: | 20°, 40° |
| Protection Grade: | IP65 | ||
| High Light: | Led Par Can,Stage Effect Lighting |
||
Features:
. Constant Current Driver
. 32bit MCU with ARM Cortex
. 4 Dimmer Modes
. 16bit PWM Dimming
. HDTV Video Flicker Free
. 4 DMX Channel Modes
. Protocol RDM Compatible
. Working Temperature Monitoring
. Over-temperature Protection
. Fanless and Quiet Working
. LED Display Menu On/Off
. Sound Active Mode
. Preset Colors.
. Built-in Auto and Fade Program
. PowerCon AC power In/Out for Indoor
. IP65 AC power In/Out for Outdoor
. 3-pin XLR DMX In/Out for Indoor
. IP65 3-pin DMX In/Outfor Outdoor
Further Info.:
| Voltage Input: | 100-240V AC, 50/60Hz |
| LED Type: | TianXin 3in1/4in1/5in1/6in1 LEDs |
| Beam Angle: | 25 °/45 °/60 ° |
| Optical Lens Size: | 29mm |
| Protocol: | USITT DMX-512, RDM compatiable |
| DMX Channel Mode: | 4/6/9/3 or 5/7/10/3 or 6/8/11/3 |
| Control Mode: | DMX-512, Standalone, Master/slave, Sound active |
| Dimmer Mode: | 4 Linear or Curver Dimmer Modes |
| PWM Dimming: | 16bit PWM Dimming at 1000HZ |
| Body Material: | Aluminum Die-casting |
| Waterproo Grade: | Indoor or IP65 Outdoor for option |
| Product Size | 215x215x120mm |
| Net Weight.: | 4.5Kgs |
| Carton Size.: | 530x530x310mm 4pcs/carton |
| Gross Weight.: | 23Kgs |
| Price term | EXW price |
| Payment terms | TT/Paypal/Western union and others |
| Shipping Way | 1. by Express ( DHL, Fedex, Ups, EMS) 2. by Air 3. by Sea |
| Sample time | 1-3 business days |
| Production time | 5-20 days, but ultimately subject to order quantity |
| Packing | 1. Using EPE packing the goods in case damage 2. Then put it into the Standard carton 3. Flightcase optional |
| Warranty | 1 year |
| After-sell Service | 1.If there is a problem with the product, please describe it and sent the necessary picture or video to us for analyzing. 2. Then we will guide you how to fix it and provide free accessories if needed. 3. For big problem,you can send the products to our factory,then we will send a new one to you! |
stage/disco/KTV/night club//bar, Events -big show/party/wedding,some other kinds entertainment places and so on.
