Place of Origin: | Guangzhou, CN |
---|---|
Brand Name: | Wincode Optronics |
Certification: | CE/ROHS |
Model Number: | WOP-BEAM260 |
Minimum Order Quantity: | 12 |
Price: | Negotiable |
Packaging Details: | Carton box with shaped foam, paid flight case available |
Delivery Time: | 5-8 business days |
Payment Terms: | T/T, Western Union,Trade Assurance |
Supply Ability: | 2000 pcs per month |
Brand: | Wincode Optronics | Motor: | Three Phase Motor |
---|---|---|---|
Light Body Color: | Black Or White | Control Protocol: | DMX512 |
Appearance: | High Temperature Resistant Plastic | ||
High Light: | Dmx Moving Head Lights,Moving Head Spot Light |
Packaging & Shipping
Price term | EXW price or FOB ,according to your requirement. |
Certificate | CE ,ROHS. |
Shipping method | if small order ,we suggest By DHL ,UPS,TNT ,Fedex, if bulk order , suggest by sea or air. |
Payment terms | T/T,Western union, Paypal , L/C. 50% T/T in advance, the balance 50% should be paid before shipment. |
Sample time | 3-7 working days after payment. |
Production time | 7-20working day depend on the quantity. |
Packing |
Flycase or Plywood. |
Function description:
1. The international standard control signal: DMX512
2. The number of tong: 16 ch, 20 ch channel switch.
3.. The number of motor: a total of 11 mute motor
4. 650000 touch the TFT color LCD interface, easy operation, interface aesthetics, reverse display interface can be 180 degrees.
5. The X axis rotate for 540 ℃, the Y axis vertical rotation of 270 ℃, with automatic correction.
6. X, Y axis can reconcile the micro, running software correction positioning function, high precision.
7. The dimming: 0-100% linear adjustment.
8. Stroboscopic: double chip stroboscopic (0.5-9 times/SEC), completely linear dimming and variable stroboscopic speed.
9. Color wheel: with 14 kinds of color + blank (can create sharp air beam effect)
10. Pattern wheel: with a 17 fixed pattern piece + blank (let you quickly change the beam shape)
11. A prism: rotating eight prism, can be bi-directional rotation, rotation speed is adjustable, making a richer pattern projection effect
12. Itemization: soft light effect, the design of soft dream effect.
13. Focus: adopting the combination of three groups of optical lens effect is much better than the beam of light, usually can reflects the pattern of hid
14. The beam Angle: parallel beam Angle: 0-3.8
15. Overheating intelligent protection
16. Smart bulb switch control, prolong the service life of the bulb)
Operation parameters:
Power supply: AC100V - 240 - v
Frequency: 50 hz - 60 hz
Total power: 290 w
Fuse: 5 a
Ballast: electronic ballast
Light source: projection bulb/ light bulb
Light bulb power: 190W
Color temperature: 8500 k
Average life span: 2000H (light bulb and reflective cup overall package, light efficiency and higher service life)
Control signal: international standard DMX512
Appearance: high temperature resistant plastic
Light body color: black
Protection level: IP20
17. Net KG
Our Promise:
1. High quality
2. Affordable price
3. Responsible after-sale

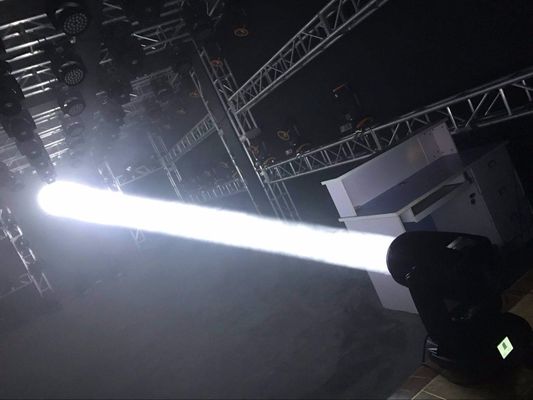

Presentation:
