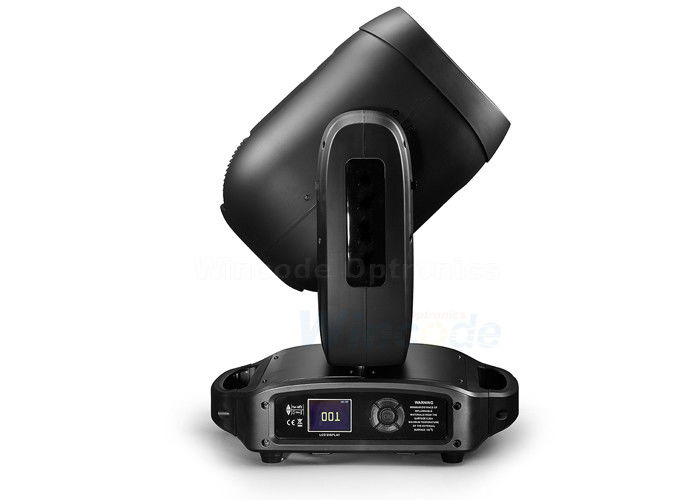

CCT 7800K DMX Fast Operation Stage Light Beam Spot Wash Zoom 4 in 1 20R Stage Quality

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Wincode Optronics
Certification: CE/ROHS
Model Number: WOP-M440
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Function: Multiple Beam+Spot+Wash+Zoom Heat Protection: One 85℃ Over Heat Protection Thermosta
Motor: 3-phase Motors Static Gobo Wheel: 18 Gobos + Open
Prism: 8+6 Facet Circle Prism Rotating In Both Directions At Variable Speeds Macro Color System: CMY Color System /15color Single Color Filters(2 CTO Filters 3200K And 2500K)
High Light:

Dmx Moving Head Lights

,

Moving Head Spot Light


Product Description

CCT 7800K DMX Fast Operation Stage Light Beam Spot Wash Zoom 4 in 1 20R Stage Quality





Packing :



Export Carton 1 pcs in 1 box

Flight Case 1pcs or 2 pcs in 1 case





Way of Shipping:



By Sea /Air

Express transportation like DHL /UPS/ FedEx etc

FREE SHIPPING for qty 200pcs and ship by sea




TECHNICAL INFORMATION


Optics



  • Lamp: 440W discharge lamp, MSD Platinum 20R (color Temperature: 7,800K)
  • Light output: 23,000 lm
  • LEDs expected lifetime: 1500hrs



Optical and effects



  • Optics: 160mm diameter front lens
  • Zoom range: 4-31 degrees for fixed gobos/6.7-50 degrees for rotating gobos 2.5degrees for Beam Mode with aperture and pipe effect



Electrical



  • Input voltage range: 110-230V AC 50/60Hz
  • Power consumption: 700W at 230V 50Hz



Programming and Control



  • DMX channels: 30/34 DMX 512 control channels



Physical



  • Dimensions (L x H x W): 460 x 323 x 574 mm
  • Weight:30 Kg (66 lbs.)
  • Moving body/ angle: PAN = 540degrees Tilt = 244 degrees/ Automatic repositioning of PAN and Tilt



Electromechanical Effects



  • 2 gobo wheels: wheel with 6HQ dichroic indexable and interchangeable rotating gobos/ variable rotating wheel with 18+1 fixed metal gobos; Advanced Animation disc
  • 2 indexable and interchangeable rotating prisms (8-facet and linear prism)
  • High precision 0-100% dimmer
  • Mechanical shutter and strobe effect





CCT 7800K DMX Fast Operation Stage Light Beam Spot Wash Zoom 4 in 1 20R Stage Quality 0
