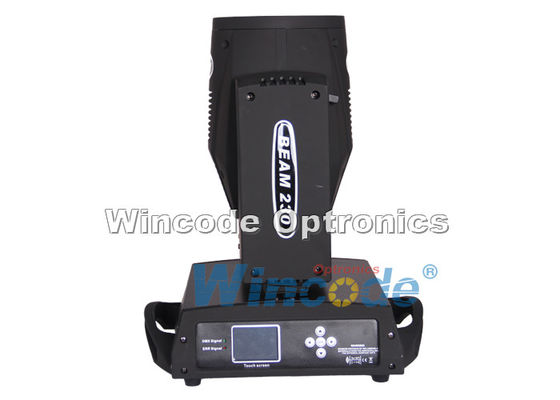

7R Stage Beam Moving Head Light , 8000K DJ KTV Nightclub Dmx Moving Heads

Basic Information
Place of Origin: Guangzhou, CN
Brand Name: Wincode Optronics
Certification: CE/ROHS
Model Number: WOP-BEAM230
Minimum Order Quantity: 12
Price: Negotiable
Packaging Details: Carton box with shaped foam, paid flight case available
Delivery Time: 5-8 business days
Payment Terms: T/T, Western Union,Trade Assurance
Supply Ability: 2000 pcs per month
Detail Information
Lamp: 230W 7R (8000K Color Temperature) Color Wheel: 14 Colors With Two-way Rotation And Rainbow Effect
Gobo Wheel: 17 Gobos Open Rotating Prism:: 8-facet Prism
Electronic Focus: 20 Meters,5000 LUX
High Light:

Dmx Moving Head Lights


Moving Head Spot Light

Product Description


7R Stage Beam Moving Head Light , 8000K DJ KTV Nightclub Dmx Moving Heads


Basic Specs:

- Power supply: AC110V-250V
- Frequency: 50-60Hz
- Power consumption: 280W
- Light source: 200W/230W YODN 5R/7R (8000K color temperature,2000 hours)

- Heat protection: one 85℃ over heat protection thermostat
- Working temperature: -10℃-45℃ maximum
- Control channels: 16 chs
- Control mode: DMX512, master/slave
- Cooling: low noise fan
- Operation menu: LCD screen display



3-lens optical group combination
Focus: electronic
Light output at 20 meters (65 feet): 59,760 lux

Interchangeable color wheel with 14 colors + open

Interchangeable gobo wheel with 17 fixed gobos + open
High speed shake effect
8-face rotating prism
Frost filter
Mechanical shutter and adjustable speed strobe effect
Mechanical dimmer

16/20 DMX 512 control channels
Display: LED red/blue display or LCD display
Pan/Tilt Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 3 PIN output

Aluminium structure with die-cast plastic cover.
Two side handles for transportation.
Device locking PAN and TILT mechanisms for transportation and maintenance.


You Might Concern:

Price term EXW price
Payment terms TT/Paypal/Western union and others
Shipping Way 1. by Express ( DHL, Fedex, Ups, EMS)
2. by Air
3. by Sea
Sample time 1-3 business days
Production time 5-20 days, but ultimately subject to order quantity
Packing 1. Using EPE packing the goods in case damage
2. Then put it into the Standard carton
3. Flightcase optional
Warranty 1 year
After-sell Service 1.If there is a problem with the product, please describe it and sent the necessary picture or video to us for analyzing.
2. Then we will guide you how to fix it and provide free accessories if needed.
3. For big problem,you can send the products to our factory,then we will send a new one to you!



Why choose us ?

1) Stable Quality with strict QC,reliable and trustable service with experienced staff
2) Affordable price with brand-made products
3) fast shipping(as your requirements),good service(1 year and 3 years free repair)

Where can use the lights ?

stage/disco/KTV/night club//bar, Events -big show/party/wedding,some other kinds entertainment places and so on.
