| Place of Origin: | Guangzhou, CN |
|---|---|
| Brand Name: | Wincode Optronics |
| Certification: | CE/ROHS |
| Model Number: | WOP-BEAM230 |
| Minimum Order Quantity: | 12 |
| Price: | Negotiable |
| Packaging Details: | Carton box with shaped foam |
| Delivery Time: | 5-8 business days |
| Payment Terms: | T/T, Western Union,Trade Assurance |
| Supply Ability: | 2000 pcs per month |
| Lamp: | YODN | Power: | 230W |
|---|---|---|---|
| Effects: | Beam, Spot(gobo Patterns) | Heat Protection: | 1* 85℃ Over Heat Protection Thermostat |
| Electronic Focus: | 20 Meters,5000 LUX | Optical Device: | Three Lens Group, 0°-39° Zoom |
| High Light: | Dmx Moving Head Lights,Moving Head Spot Light |
||

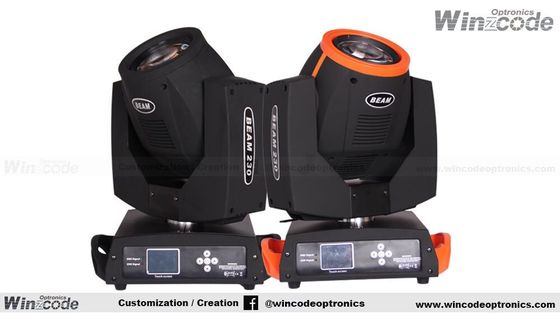

7R Sharpy Beam Moving Head Light 230W YODN Lamp Strong Light Beam With Gobo
COLOR SYSTEM
Interchangeable color wheel with 14 colors + open
EFFECTS SECTION
Interchangeable gobo wheel with 17 fixed gobos + open
High speed shake effect
8-face rotating prism
Frost filter
Mechanical shutter and adjustable speed strobe effect
Mechanical dimmer
CONTROL AND PROGRAMMING
16/20 DMX 512 control channels
Display: LED red/blue display or LCD display
Pan/Tilt Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 3 PIN output
Further Infomation:
> Power supply: AC110V-250V
> Frequency: 50-60Hz
> Power consumption: 280W
> Light source: 200W/230W YODN 5R/7R (8000K color temperature,2000 hours)
> Color Wheel: 14 colors with two-way rotation and rainbow effect
> Rotating prism: 8-facet prism with clockwise and anti-clockwise rotation, prism position function
> Optical Device: three lens group, 0°-39° zoom
> Electronic Focus: 20 meters,5000 LUX
> Foggy: 0%-100% linear foggy
> Heat protection: one 85℃ over heat protection thermostat
> Working temperature: -10℃-45℃ maximum
> Control channels: 16 chs
> Control mode: DMX512, master/slave
> Cooling: low noise fan
| Price term | EXW price |
| Payment terms | TT/Paypal/Western union and others |
| Shipping Way | 1. by Express ( DHL, Fedex, Ups, EMS) 2. by Air 3. by Sea |
| Sample time | 1-3 business days |
| Production time | 5-20 days, but ultimately subject to order quantity |
| Packing | 1. Using EPE packing the goods in case damage 2. Then put it into the Standard carton 3. Flightcase optional |
| Warranty | 1 year |
| After-sell Service | 1.If there is a problem with the product, please describe it and sent the necessary picture or video to us for analyzing. 2. Then we will guide you how to fix it and provide free accessories if needed. 3. For big problem,you can send the products to our factory,then we will send a new one to you! |
stage/disco/KTV/night club//bar, Events -big show/party/wedding,some other kinds entertainment places and so on.
