COLORado1QuadZoom 7 LEDs 15W RGBW 4 in 1 DMX Control Outdoor Waterproof IP65 Motorized Zoom LED Par Light Liner Dimming

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Wincode Optronics
Certification: CE/ROHS/UL/FCC/SGS
Model Number: WOP-OPZ7154
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Product: 7 X 15W RGBW LED Zoom Par Light Light Source: 7 X 15W RGBW 4 In 1 LEDs
Channels: 4/8 Zoom Angle: Motorized Linear Zoom From 8°to 50°
Control Mode: DMX512, Master-slave And Sound Activated Or Auto Operation Cooling System:: Natural Air Convection Heat Transfer
Material: Aluminum Die-casting Apply: Teletorium, Architecture, Theatre, Stage Show, Live Show

Product Description

7 LEDs 15W RGBW 4 in 1 DMX Control Outdoor Waterproof IP65 Motorized Zoom LED Par Light Liner Dimming

COLORado1QuadZoom 7 LEDs 15W RGBW 4 in 1 DMX Control Outdoor Waterproof IP65 Motorized Zoom LED Par Light Liner Dimming 0

Brief:



Model : WOP-OPZ7154  COLORado1QuadZoom

Power supply: AC110V-250V
Frequency: 50-60HzPower Consumption: 200W
Light Source: 7 x 15W RGBW 4 in 1 LEDs  ( WW / CW optional )

Place of original: Guangzhou, China

Period of warranty: 1 year

Operation Menu: LED display





Specification:



WOP-OPZ7154 7 x 15W RGBW 4 in 1 Waterproof LED Zoom Par
LED Type: 15W RGBW 4 in 1 LEDs Features:
. 16bit PWM Dimming
. HDTV Video Flicker Free
. 2 DMX Channel Modes
. Protocol RDM Compatible
. Working Temperature Monitoring
. Over-temperature Protection
. Intelligent Cooling System
. LED Display Menu On/Off
. Sound Active Mode
. Preset Colors.
. Built-in Auto and Fade Program
. PowerCon AC power In/Out Socket for IP33
. IP65 AC power In/Out Cable for IP65
. IP65 3-pin DMX In/Out Cable for IP65
Beam Angle: 25 °/45 °/60 °
Optical Lens Size: 29mm
Protocol: USITT DMX-512, RDM compatiable
DMX Channel Mode: 5/9 channels
Zoom Angle: Motorized linear zoom from 8°to 50°
Control Mode: DMX-512, Standalone, Master/slave, Sound active
Dimmer Mode: Linear 0-100%
PWM Dimming: 16bit PWM Dimming at 1000HZ
Body Material: Aluminum Die-casting
Waterproo Grade: IP65 Outdoor
Product Size
Net Weight.: 5.5Kgs
Carton Size.: 450×350×400mm 1pcs/carton
Gross Weight.: 10.5Kgs



Accessories

  • Power Cable: 2 pieces of connected power cable(power in & out)
  • DMX Signal line: 2 pieces of connected DMX cable(DMX in & out)
  • Users manual: 1 pcs
  • Power cable plug: 1 on free each 8 pcs of the light
  • DMX line adapter: 1 on free each 8 pcs of the light





Cautions

  • Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!
  • Unplug mains lead before opening the housing!
  • To prevent fire or shock hazard,do not expose this fixture to rain or moisture!
  • This fixture must be earthed!
  • Do no try to repair it when the circuit is out of order, send it back to your supplier to repair!



Customerized Acceptable: Different apprearance design, Different angle optical lens, different effects: beam, wash, zoom...Also We have RGBAW+UV+Lim 7 in 1 LED source for lighting. If you need any customerized products kindly please contact with us.



Applications:



Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall,
teletorium, theatre, studio, casino and other entertainment centers …

COLORado1QuadZoom 7 LEDs 15W RGBW 4 in 1 DMX Control Outdoor Waterproof IP65 Motorized Zoom LED Par Light Liner Dimming 1

COLORado1QuadZoom 7 LEDs 15W RGBW 4 in 1 DMX Control Outdoor Waterproof IP65 Motorized Zoom LED Par Light Liner Dimming 2

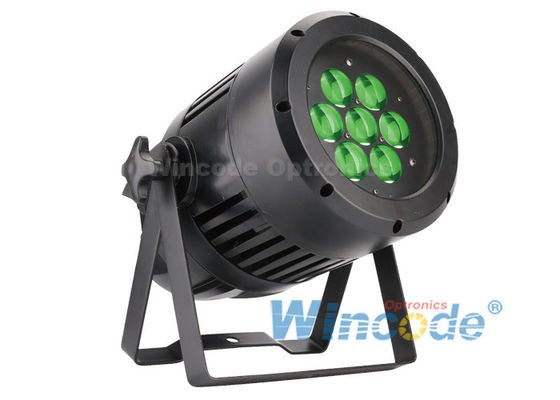

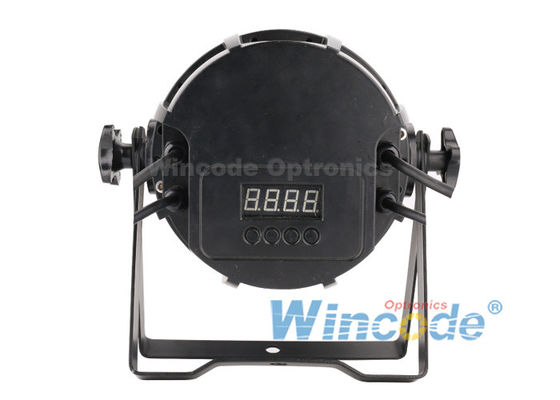

Product Show:



COLORado1QuadZoom 7 LEDs 15W RGBW 4 in 1 DMX Control Outdoor Waterproof IP65 Motorized Zoom LED Par Light Liner Dimming 3

COLORado1QuadZoom 7 LEDs 15W RGBW 4 in 1 DMX Control Outdoor Waterproof IP65 Motorized Zoom LED Par Light Liner Dimming 4
