RGBW Ellipsoidal Profile LED Studio Light High Brightness White Color Easy Installation

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Wincode Optronics
Certification: CE/ROHS/UL/FCC/SGS
Model Number: WOP-STPROFILE200
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Item: 200W LED Ellipsoidal Profile Spot Light Light Source: 1 Peice 200W RGBW COB LED (one Pc)
Color Temperature: RGBW CRI: 85 Ra
Beam Angle: 19° / 26° / 36°
High Light:

Studio Lighting Equipment

,

Led Flood Light


Product Description

200W RGBW LED Ellipsoidal Profile Spot Light For Intelligent Studio Lighting





Description:



WOP-STPROFILE200  200W LED Ellipsoidal Profile Spot Light is equipped with 1 piece 200W high brightness white color LED; RGBW colorful color mixing and 19°,26°,36° beam angle optional; use constant current power supply. constant current LED driver, 32bit MCU with ARM Cortexl. 4 DMX Channel with 16bit PWM Dimming, HDTV Video Flicker Free, Aluminum die-casting. WOP-STPROFILE200 is fashionable styled streamline appearance, easy installation. Suitable for TV Station, Theatre, Studio…







Specification:



Power supply:AC90V-120V/200V-250V,50Hz/60Hz
Light source:200w RGBW COB LED (one pc)
Max Power:200W
Optical lens:Imaging optical lens group with 6pcs special glass
Adjustable Color Temperature: RGBW
Color Temperature deviation: ±5%
Life:50000h
Manual Dimmer:0%~100%
Adjusted Beam angle: 19°,26°,36°
Control system:16 Bit dimming,STM32 control chip,DMX512
Power Connection: Swiss Neutrik Power Con
Max Clock frequency: 72m/Hz
Dimming Frequency: 8k/Hz
Channels:4CH
Display screen:LCD
Working Environment:-20℃~35℃
Tilt:±90°
Protection class:IP23
Weight:8.61KG





Applications:



Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers …

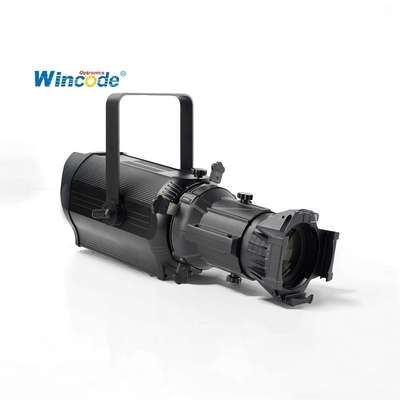

RGBW Ellipsoidal Profile LED Studio Light High Brightness White Color Easy Installation 0



Wincode Optronics to provide the following professional services:

1. Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
2. Structure Designs: Pro/E--Parts--assembly drawing--Prototype
3. Integrated Circuit Design:
4. Software Design:
5. Undertake domestic and international OEM, ODM,manufacturing.

6. Accept customized products order.



Product Show

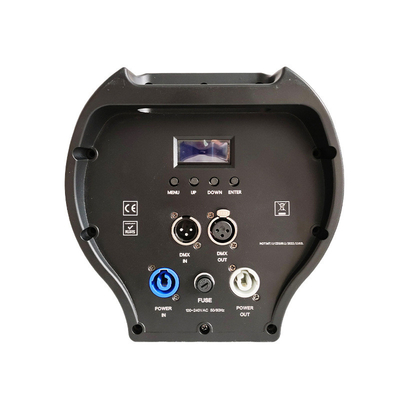

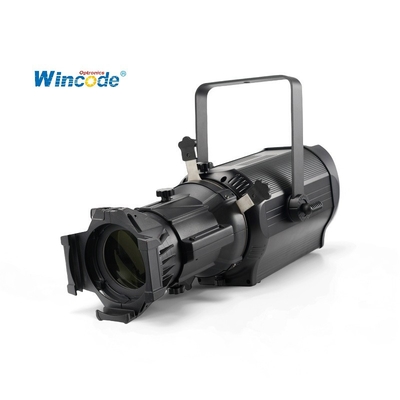

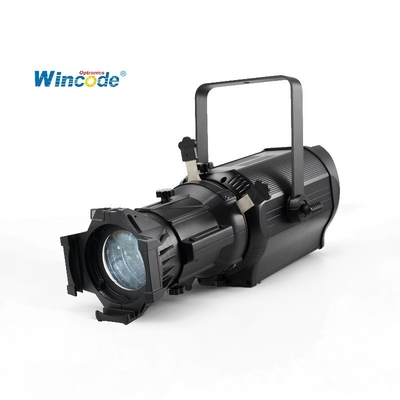

RGBW Ellipsoidal Profile LED Studio Light High Brightness White Color Easy Installation 1
