Manual Dimmer Fresnel Stage Light CRI 90 Ra , 100W Surface Mounted Led Spotlights

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Wincode Optronics
Certification: CE/ROHS/UL/FCC/SGS
Model Number: WOP-STFRESNEL100
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Item: 100W LED Fresnel Spot Light Max Power Consumption:: 100W
Lamp Source:: Citizen 100w COB LED Beam Angle:: 12°~55°
Adjustable Color Temperature:: 3200K、5700K Color Rendering Index:: CRI 90 Ra
High Light:

Studio Lighting Equipment

,

LED RGB Panel Light


Product Description

LED Studio LIght 100W LED Fresnel Spot Light For Studio Lighting / Teletorium / Meeting Room







100w LED Fresnel Spot light



Power supply:AC90V-120V/200V-250V,50Hz/60Hz

Light source:Citizen 100w COB LED (one pc)

Power:100W

Optical lens: 150mm Fresnel Optical Lens

Adjustable Color Temperature:3200K,5700K

Color Temperature deviation: ±5%

Life:50000h

Color rendering index: CRI 90 Ra

Manual Dimmer:0%~100%

Beam angle: 12°~55°

Control system:16 Bit dimming,STM32 control chip,DMX512

Power Connection: Swiss Neutrik Power Con

Max Clock frequency: 72m/Hz

Dimming Frequency: 8k/Hz

Channels:1CH

Display screen:LCD

Working Environment:-20℃~35℃

Tilt:±90°

Protection class:IP23

Light barrier:Four-leaf(supply for requirement)

Weight:5KG

Dimension:360x270x395MM





WOP-STFRESNEL100 100w LED Fresnel Spot light
Voltage: AC 100~240V, 50/60Hz
Max Power Consumption: 100W
Lamp source: 1 pcs Citizen 100w COB LED
Beam angle: 12-55°
Optical lens: 150mm Fresnel Optical Lens
Adjustable Color Temperature: 3200K; 5700K
Color Temperature deviation: ±5%
Color rendering index: CRI 85 Ra
Manual Dimmer: 0-100%
Dimming Frequency: 8k/Hz
Max Clock frequency: 72m/Hz
Control mode: 16 Bit dimming,STM32 control chip,DMX512
Channel mode.: 1Ch
Display LCD Display
Light barrier: Four-leaf(supply for requirement)
Weight of light barrier: 0.5kg
Fixture Size: 360x270x395mm
Net Weight.: 5KG



Manual Dimmer Fresnel Stage Light CRI 90 Ra , 100W Surface Mounted Led Spotlights 0

Product features

  1. Made by fire-resistant Nylon material and aluminum profile which makes the lamp more lighter
  2. More smooth light
  3. Good performance of cooling system with the Ultra-quiet fan ensure the usage in the strict noise-control environment
  4. Convenient design for in and out ensure the convenient linking and installation
  5. Much smoother dimming curve than the competitors
  6. Efficient cooperation between the control system and the power-supply system ensure to avoid the current noise.

Scope of application

The surface light of stage and television, video conference system, film, etc.



Manual Dimmer Fresnel Stage Light CRI 90 Ra , 100W Surface Mounted Led Spotlights 1

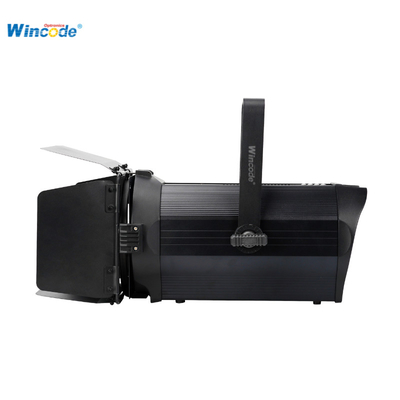

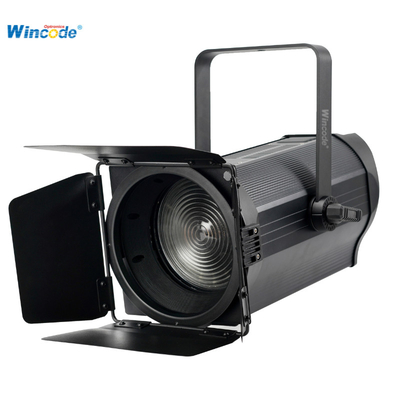

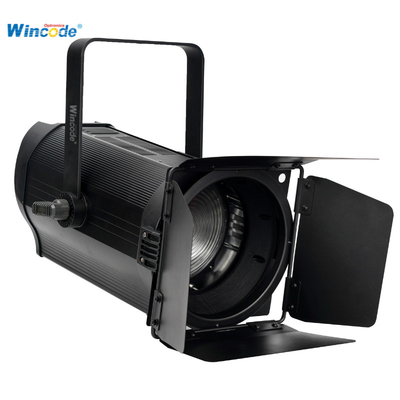

Product Show:



Manual Dimmer Fresnel Stage Light CRI 90 Ra , 100W Surface Mounted Led Spotlights 2



Manual Dimmer Fresnel Stage Light CRI 90 Ra , 100W Surface Mounted Led Spotlights 3
