54 LEDs 3W DMX Control Waterproof IP65 Motorized Zoom LED Par Light Liner Dimming

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Wincode Optronics
Certification: CE/ROHS/UL/FCC/SGS
Model Number: WOP-OPZ5403RGBW
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Contact Now
Detail Information
Product: 54 X 3W LED Zoom Par Light Light Source: 54 X 3W RGBW LEDs
Channels: 13 Channels Zoom Angle: Motorized Linear Zoom From 8°to 50°
Control Mode: DMX512, Master-slave And Sound Activated Or Auto Operation Cooling System:: Natural Air Convection Heat Transfer
Material: Aluminum Die-casting
High Light:

Stage Effect Lighting

,

Wireless Led Uplighting


Product Description

54 LEDs 3W DMX Control Waterproof IP65 Motorized Zoom LED Par Light Liner Dimming

54 LEDs 3W  DMX Control Waterproof IP65 Motorized  Zoom LED Par Light Liner Dimming

Brief:



Model : WOP-OPZ5403RGBW

Power supply: AC110V-250V
Frequency: 50-60HzPower Consumption: 210W
Light Source: 54PCS 3W LEDs (R, G, B, W).

Place of original: Guangzhou, China

Period of warranty: 1 year

Operation Menu: LED display





Specification:



WOP-OPZ5403RGBW 54 x 3W RGBW Waterproof LED Zoom Par
Voltage Input: 100-240V AC, 50/60Hz Features:

. 16bit PWM Dimming
. HDTV Video Flicker Free
. 13 DMX Channel
. Protocol RDM Compatible
. Working Temperature Monitoring
. Over-temperature Protection
. Intelligent Cooling System
. LED Display Menu On/Off
. Sound Active Mode
. Preset Colors.
. Built-in Auto and Fade Program
. PowerCon AC power In/Out Socket for IP33
. IP65 AC power In/Out Cable for IP65
. IP65 3-pin DMX In/Out Cable for IP65
LED Type: 3W RGBW LEDs
Beam Angle: 25 °/45 °/60 °
Optical Lens Size: 29mm
Protocol: USITT DMX-512, RDM compatiable
DMX Channel Mode: 13
Zoom Angle: Motorized linear zoom from 8°to 50°
Control Mode: DMX-512, Standalone, Master/slave, Sound active
Dimmer Mode: Linear 0-100%
PWM Dimming: 16bit PWM Dimming at 1000HZ
Body Material: Aluminum Die-casting
Waterproo Grade: IP65 Outdoor
Product Size 290X280X350mm
Net Weight.: 5.5Kgs
Carton Size.: 350×350×400mm 1pcs/carton
Gross Weight.: 10.5Kgs



Accessories

  • Power Cable: 2 pieces of connected power cable(power in & out)
  • DMX Signal line: 2 pieces of connected DMX cable(DMX in & out)
  • Users manual: 1 pcs
  • Power cable plug: 1 on free each 8 pcs of the light
  • DMX line adapter: 1 on free each 8 pcs of the light





Cautions

  • Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!
  • Unplug mains lead before opening the housing!
  • To prevent fire or shock hazard,do not expose this fixture to rain or moisture!
  • This fixture must be earthed!
  • Do no try to repair it when the circuit is out of order, send it back to your supplier to repair!



Customerized Acceptable: Different apprearance design, Different angle optical lens, different effects: beam, wash, zoom...Also We have RGBAW+UV+Lim 7 in 1 LED source for lighting. If you need any customerized products kindly please contact with us.



Applications:



Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers …

54 LEDs 3W  DMX Control Waterproof IP65 Motorized  Zoom LED Par Light Liner Dimming

54 LEDs 3W  DMX Control Waterproof IP65 Motorized  Zoom LED Par Light Liner Dimming

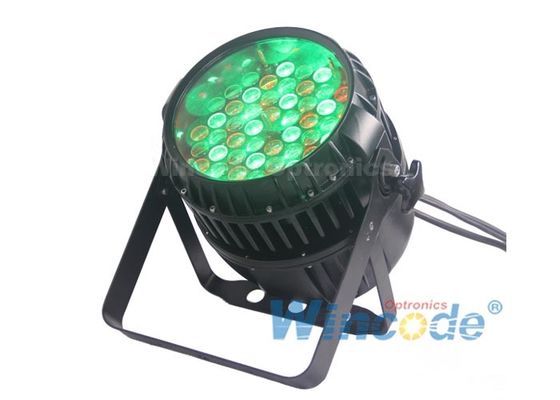

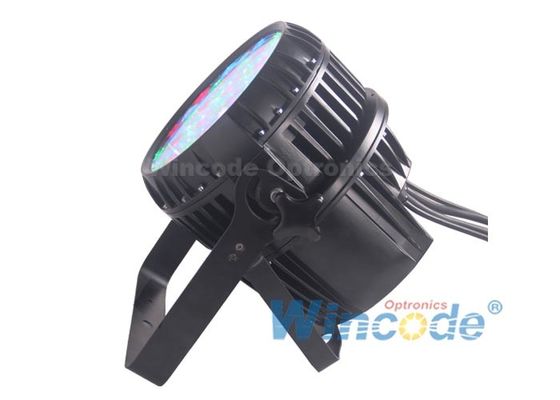

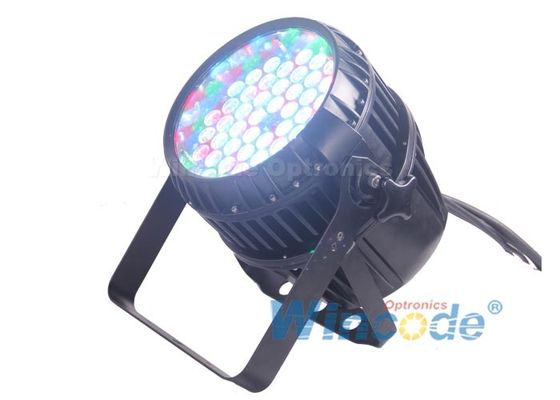

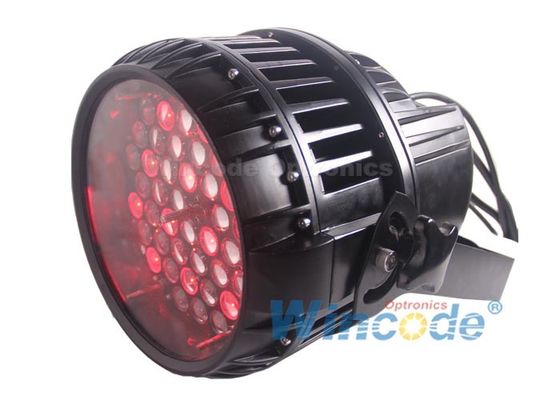

Product Show:



54 LEDs 3W  DMX Control Waterproof IP65 Motorized  Zoom LED Par Light Liner Dimming

54 LEDs 3W  DMX Control Waterproof IP65 Motorized  Zoom LED Par Light Liner Dimming
