Customized Stage Lighting Control System Moving Head Light Console With 1024 Channels

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Wincode Optronics
Certification: CE/ROHS/UL/FCC/SGS
Model Number: WOP-MB1024
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Item: 1024 Moving Light DMX Controller Channels: 1024
Standard: DMX512/1990 Fixture Library: Pearl
Program: 400 Playback Program
High Light:

Led Dmx Controller

,

Dmx Rgb Led Controller


Product Description

WOP-MB1024 1024 Moving Light DMX Controller / Stage Lighting Control System For Stage Show Lighting





Description:



WOP-MB1024 1024 Moving Light DMX Controller  is one moving head light console with 1024 channels, Output port with optical isolated. Up to 180 intelligent Fixtures or 180 Dimmer may be connected. Up to 42 channels each Fixture. Fixture Library mode, “pearl” Library compatible.400 Playback program, 200 Group, 210 Preset, 100 Snapshot.







Specification:



1024 DMX channels, DMX512/1990 standard, Output port with optical isolated.


Up to 180 intelligent Fixtures or 180 Dimmer may be connected.


Up to 42 channels each Fixture. Fixture Library mode, “pearl” Library compatible.


400 Playback program, 200 Group, 210 Preset, 100 Snapshot.


Shape track control is provided to control such effects as circles, lines and dimmer effect, etc.


Chase trigger mode selectable: Auto1, Auto2, Music synchronously and MIDI.


USB port is provided. USB-disk can record the data of controller, Controller can be upgraded through the USB port.


1 VGA port, user can connect it to the colorful CRT or LCD displays (OPTIONAL).


LCD display with backlight.


12V accessory operate light (OPTIONAL).


Power supply: AC 110-240V / 50-60Hz


Size: 500×525×150 mm.



Applications:



Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers …

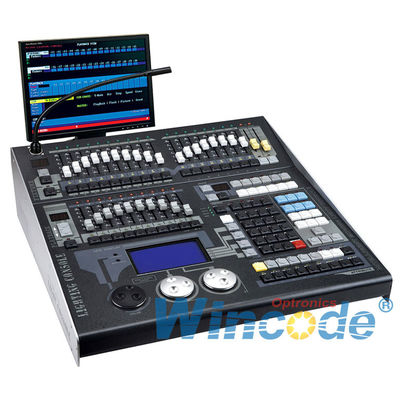

Customized Stage Lighting Control System Moving Head Light Console With 1024 Channels 0



Wincode Optronics to provide the following professional services:

1. Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
2. Structure Designs: Pro/E--Parts--assembly drawing--Prototype
3. Integrated Circuit Design:
4. Software Design:
5. Undertake domestic and international OEM, ODM,manufacturing.

6. Accept customized products order.



Product Show



Customized Stage Lighting Control System Moving Head Light Console With 1024 Channels 1
