IP65 150000LUM 1728 LED Pixel Strobe Artnet DMX RDM Control

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Wincode Optronics
Certification: CE/ROHS/UL/FCC/SGS
Model Number: WOP-LE3008
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Light Source: 1728 X 1W RGBW LEDs Dimming: 4 Dimming Curve Modes
Key Features: Pixel Matrix 4 X 12 Output (constant): 1282 LUX @ 5 Meters
Output (peak): 150,000 Lumens IP Rating: IP65
Protocol: DMX, ArtNet AND RDM,Kling-net
High Light:

1728 LED Pixel Strobe

,

150000 LUM LED Pixel Strobe

,

DMX RDM Stage Strobe Lights


Product Description

 Pixel LED Strobe Light with RDM Flicker Free

WOP-LE3008 1728 LED Pixel Strobe IP65 Support Artnet DMX RDM Control





Product Oustandings:





The brightest two-layer pixel strobe on the planet



PIXEL LED STROBE - RGBW / IP65



1728 RGBW LEDS , 150000LUM



5M distance : 1200LUX (FULL LIGHTING)



Pixel Matrix 4 x 12









Features:






  • The brightest two-layer pixel strobe on the planet




  • 48 individually controllable segments for dynamic effects and visuals




  • Two-layer foreground and background colors and effects




  • Continuous operation possible due to advanced thermal design




  • Stunning selection of pre-programmed macros and special effects




  • Doubles as an LED blinder in continuous mode




  • IP65-rated tour-grade construction




  • Control  Protocol DMX, ArtNet AND RDM,Kling-net















Parameters:




Voltage



  100 - 240 VAC, 50/60 Hz

Consumption



  590W (full-on constant output)



Consumption

 1200W (peak instant strobe)



Power connections

  IP65 PowerKon In/Out



Data connections

  IP65 XLR In/Out for DMX,  IP65 EtherCon for ArtNet



Color Mixing

  RGBW



Pixel Matrix

  4 x 12



Strobe

  0 ~ 30Hz



Dimming

  4 dimming curve modes



Protocol

  DMX, ArtNet AND RDM,Kling-net



DMX Channels

  3 / 4-1 / 4-2 / 6 / 7 / 8 / 14 / 144 / 192 / 202



Built-in Programs

   YES



Display

  TFT menu with four-button navigation



Material

  Diecast Aluminum



Finish

  Matte black



IP rating

   IP65



Cooling

  Variable speed fans



Ambient operating temps

  -20° ~ 40°C



Dimensions

  475 x 179 x 268 mm



Weight

  15KG



Spare Parts:

  IP65 PowerKon (included)












Applications:



Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers











Our service:





 Trade Term



  EXW Price



Payment terms



  TT / Western union / Money Gram, Cash



  50 %deposit prepaid before production, And balance paid before delivery.



Shipping Methods



  1. by Express ( DHL, UPS, FEDEX, TNT, EMS)

  2. by Air to your nearest airport

  3. by Sea to your nearest seaport



Sample order delivery



  1 to 3 working days



Mass order Production time   5-20 days, subject to the order quantity



Packing





  1. Using EPE packing the goods in case of damage

  2. Then put it into the Standard carton

  3. Flight case / Plywood case optional









After Sale Service





 1. If there is a problem with the product, please describe it correctly and sent   the necessary picture or video to us for analyzing and sort out the problem.



  2. Then we will guide you how to fix it and provide free accessories if needed.



  3, For big problem, you can send the products back our factory, we will send you the new one.

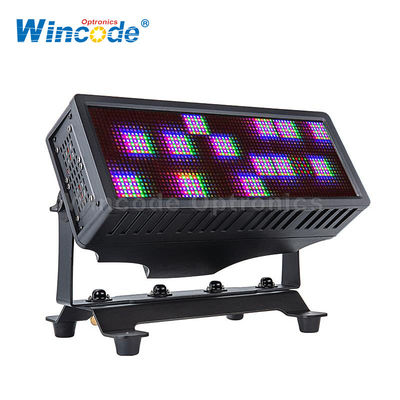

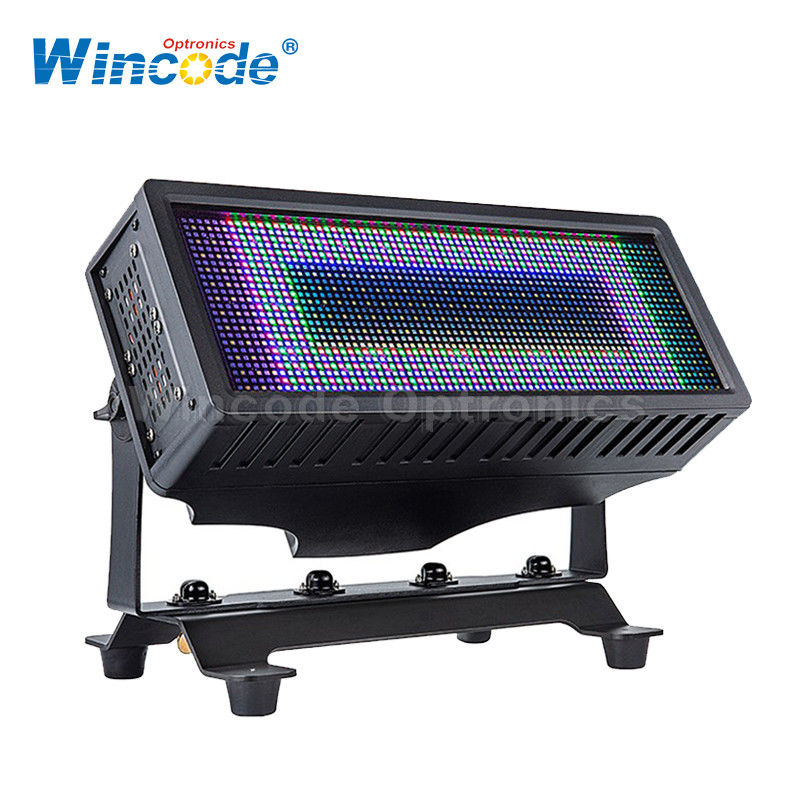

Product Show:



IP65 150000LUM 1728 LED Pixel Strobe Artnet DMX RDM Control 0IP65 150000LUM 1728 LED Pixel Strobe Artnet DMX RDM Control 1



IP65 150000LUM 1728 LED Pixel Strobe Artnet DMX RDM Control 2







Applications:



Entertainment: Events, DJ, Disco, club, KTV, ballroom, theatre and other entertainment centers …









IP65 150000LUM 1728 LED Pixel Strobe Artnet DMX RDM Control 3

IP65 150000LUM 1728 LED Pixel Strobe Artnet DMX RDM Control 4







HIGH QUALITY:



Production according to ISO9001:2008 quality system UL,CE and ROHS authentication.







IP65 150000LUM 1728 LED Pixel Strobe Artnet DMX RDM Control 5IP65 150000LUM 1728 LED Pixel Strobe Artnet DMX RDM Control 6IP65 150000LUM 1728 LED Pixel Strobe Artnet DMX RDM Control 7











FAQ



Q1. What payment modes are available?



T/T, Western Uion, Paypal , Money Gram are acceptable.



Q2. What’s the lead time for my order?

Usually for sample order, it takes roughly 5-7 business days.

While official mass order will take 15 to 20 business days to ship.



Q3. How long can I get the lights?

That depends on shipping method as agreed. Normally you can receive the goods within 1 week if shipped by DHL, UPS, FedEx and TNT express, while 1 month later if shipped by boat.



Q4.What is your warranty policy?

A: We provide One Year Warranty for all of our products. Or even longer warranty service for some special items.



Q5. What if problem occurred to my light device during use?

Firstly, photos and small videos to show the faulty are required. Our technique team will analysis and sort out the problem, then provide you the right solution by telling you way to fix or send spare parts.
