High Illuminance Studio Lighting Equipment , 100W CTC Dimmable Led Panel Light

Basic Information
Place of Origin: Guangdong
Brand Name: Wincode Optronics
Certification: CE/ROHS
Model Number: WOP-STPANEL100
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Item: 100W LED CTC Panel Light Max Power Consumption:: 100W
Lamp Source:: 1344Pcs(W:672Pcs,Amber:672Pcs) Beam Angle:: 120°
Adjustable Color Temperature:: 3000K~6500K Color Rendering Index:: CRI 85 Ra
High Light:

Led Flood Light

,

LED RGB Panel Light


Product Description

LED Studio Light 100W LED CTC Panel Light For Studio Lighting And Stage Lighting







Product name:100w LED Color temperature-adjustable Panel light



Product features

  1. High illuminance: close to the traditional tungsten lamp
  2. Super beam angle:120°large area irradiation and soft edge of spot. The effect of the spots close to the traditional three-band floodlight which is smooth enough for camera shooting. The beam angle of competing products is 60°which makes the spot with sharp edge, and the spot is not smooth.
  3. Good performance of cooling system
  4. Low power, light weight



Specification:



Power supply:AC90V-120V/200V-250V,50Hz/60Hz
Light source:Everlihgt brand High illuminance imported LED chip
Quantity of chip:1344Pcs(W:672Pcs,Amber:672Pcs)
Power:100W
Optical lens: Dot-matrix compound eye optical system
Adjustable Color temperature:3000K~6500K
Preset Color Temperature: 3000K,3200K,4500K,5600K,6500K
Color Temperature deviation: ±5%
Color rendering index: CRI 85 Ra
Manual Dimmer:0%~100%
Beam angle: 120°
Control system:16 Bit dimming,STM32 control chip,DMX512
Max Clock frequency: 72m/Hz
Dimming Frequency: 8k/Hz
Channels:2CH
Display screen:LCD
Power Connection: Swiss Neutrik Power Con
Working Environment:-20℃~35℃
Life:50000h
Tilt:±90°
Protection class:IP23
Light barrier:Four-leaf(supply for requirement)
Weight:2KG



Scope of application



The scope of film and television, theater, live events, trade show exhibits, educational facilities, retail environments, and corporate shows, etc.

The scope of major television, HD studio, intelligent HD video conference room, HD intelligent studio, the surface light, top light, side light of multi-function hall, etc.

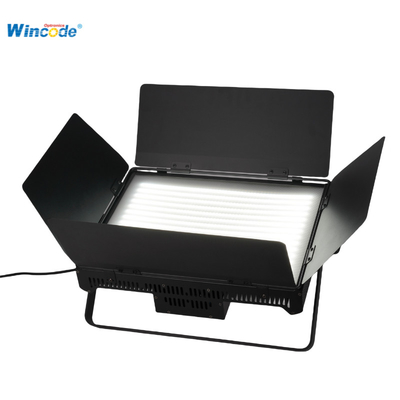

High Illuminance Studio Lighting Equipment , 100W CTC Dimmable Led Panel Light 0

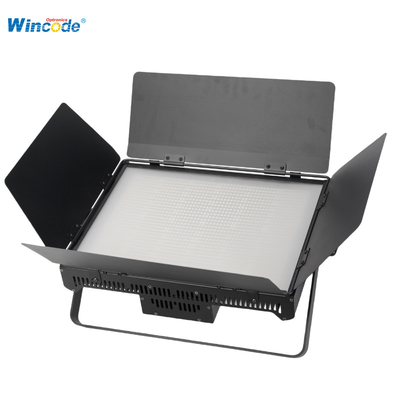

High Illuminance Studio Lighting Equipment , 100W CTC Dimmable Led Panel Light 1



Product Show:

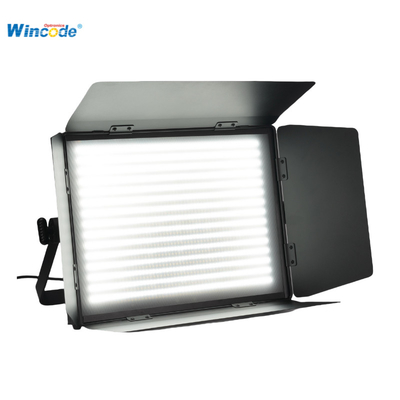

High Illuminance Studio Lighting Equipment , 100W CTC Dimmable Led Panel Light 2
