Place of Origin: | Guangdong |
---|---|
Brand Name: | Wincode Optronics |
Certification: | CE/ROHS |
Model Number: | WOP-STPROFILE150 |
Minimum Order Quantity: | 2 pcs |
Price: | negotiation |
Packaging Details: | Exported carton box / flight case |
Delivery Time: | 3-5 working days after received your payment |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |
Supply Ability: | 1000pcs/month |
Item: | 150W LED Ellipsoidal Profile Spot Light | Color Temperature: | 3200K / 5600K |
---|---|---|---|
Beam Angle: | 19° / 26° / 36° | Control: | DMX |
Channels: | 1 Channel | Material: | Aluminum Die-casting |
High Light: | Studio Lighting Equipment,Led Flood Light |
Stage Equipment Black Case 3200K / 5600K Focus LED StudioLight For Film Studio Lighting
Performance:
WOP-STPROFILE150 150W LED Ellipsoidal Profile Spot Light is equipped with 1 piece 150W high brightness white color LED; 3200K / 5600K color temperature optional and 19°,26°,36° beam angle optional; use constant current power supply. constant current LED driver, 32bit MCU with ARM Cortexl. 1 DMX Channel with 16bit PWM Dimming, HDTV Video Flicker Free, Aluminum die-casting. WOP-STPROFILE150 is fashionable styled streamline appearance, easy installation. Suitable for TV Station, Theatre, Studio…
Specification:
WOP-STPROFILE150 | 150w LED Profile Spot light |
Voltage: | AC 90~240V, 50/60Hz |
Max Power Consumption: | 170W |
Lamp source: | 1 pcs Citizen 150w COB LED |
Beam angle: | 19°/26°/36° |
Optical lens: | Imaging optical lens group with special glass |
Adjustable Color Temperature: | 3200K; 5000K |
Color Temperature deviation: | ±5% |
Color rendering index: | CRI 85 Ra |
Manual Dimmer: | 0-100% |
Dimming Frequency: | 8k/Hz |
Max Clock frequency: | 72m/Hz |
Control mode: | 16 Bit dimming,STM32 control chip,DMX512 |
Channel mode.: | 1Ch |
Display | LCD Display |
Light barrier: | Four-leaf(supply for requirement) |
Weight of light barrier: | 0.5kg |
Fixture Size: | 538x270x395mm |
Packing Size: | 665x330x360mm |
Net Weight.: | 10KG |
Applications:
Performing arts venues: Stadium (Hall), theater, television, film and television broadcast Office ...
Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers …
Wincode Optronics to provide the following professional services:
1. Appearance Designs: concept design--Sketch--Color--3D Modeling--Rendering
2. Structure Designs: Pro/E--Parts--assembly drawing--Prototype
3. Integrated Circuit Design:
4. Software Design:
5. Undertake domestic and international OEM, ODM,manufacturing.
6. Accept customized products order.

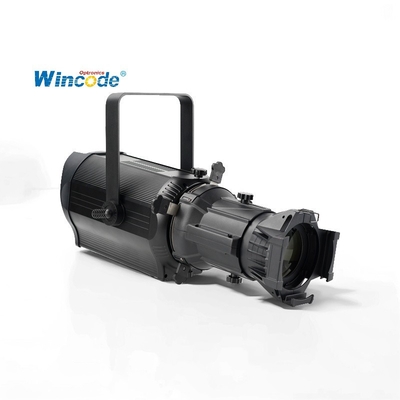

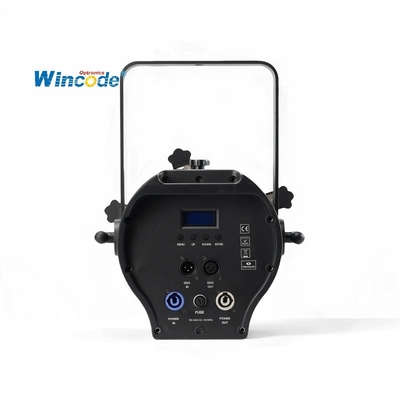

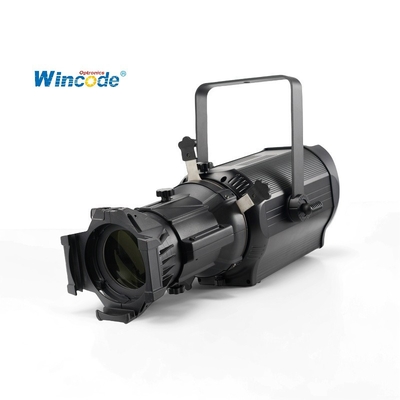

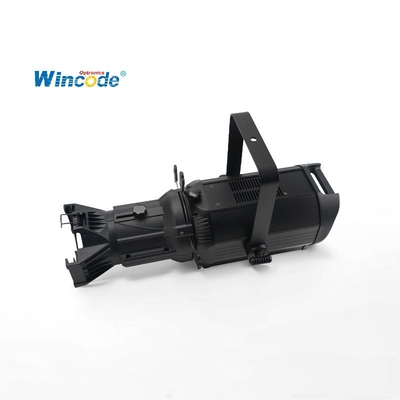

Product Show
