12×40W LED Moving Head Light With Zoom Pixel Function Beam Wash Effects

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Wincode Optronics
Certification: CE/ROHS/UL/FCC/SGS
Model Number: WOP-LM4012
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Exported carton box / flight case
Delivery Time: 3-5 working days after received your payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detail Information
Produce Name: 12×40W LED Moving Head Light Pixel Beam Zoom Light Source: 12×40W RGBW 4 In 1 OSRAM LEDs
Zoom: 4.5°-45° Pixel: Optional
Dimming: 0-100% Electronic Linear Dimming OEM: YES

Product Description

12×40W LED Moving Head Light With Zoom Pixel Function Beam Wash Effects





Product Introduction:



Model : WOP-LM4012

Power supply: AC110V-250V
Frequency: 50-60Hz
Power consumption: 600W
Light source: 12 pcs 40W RGBW 4 in 1 OSRAM LEDs

Place of original: Guangzhou, China

Period of warranty: 1 year

Operation menu: LCD screen display


Having 12 pcs of 40w each led, very power, strong beam, zoom from 4.5° to 45°, pixel function with each led can be controlled individually. Professional to a upper stage in both configuration and performance, especially with RDM control mode.



Product advantages:

  1. Each LED can be controlled individually. With unique honeycomb designed lens
  2. Display screen can be turned upside down with 180° to fit the installation in different place
  3. Strong Beam, Wash with zoom from 4.5°to 45°.RDM built-in
  4. The scanning position can be memory, it will be automatically reset without expected movement after rotation.
  5. Fan cooling (fan will be change the speed with the temperature variation).
  6. Temperature detecting system (If the temperature detected error, the light doesn’t work to protect the fixture).













Product parameters:

Power supply AC110V-250V
Frequency 50-60Hz
Power Consumption: 600W
Lamp 12pcs 40W Osram 4in1 LEDs
Beam angle: 4.5-45 degree
Color temperature: 2800K-8500K
Data in/out: 3-pin XLR in out
Power in/out: powerCon in out
Lamp life 6-10 thousand hrs
Dimmer 0-100% dimming
Strobe 0~20HZ
Housing: Flame-retardant plastic
Control mode RDM, Standard DMX512,Automatic and Master/slave mode
Overall control DMX channel: 12/17CH
Dot control DMX channel: 11CH/17/18CH/58CH
Pan: 540°
Tilt: 270°
Pan/Tilt Resolution: 16 bit
Net Weight 14.5kg
Gross Weight 16kg

Applications:

Entertainment: dance halls, night clubs, Wedding, Events, DJ, Disco, club, KTV, pub, bar, family party, dance hall, theatre, studio, casino and other entertainment centers …

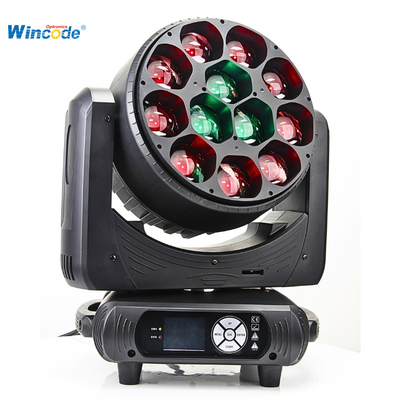

12×40W LED Moving Head Light With Zoom Pixel Function Beam Wash Effects 0

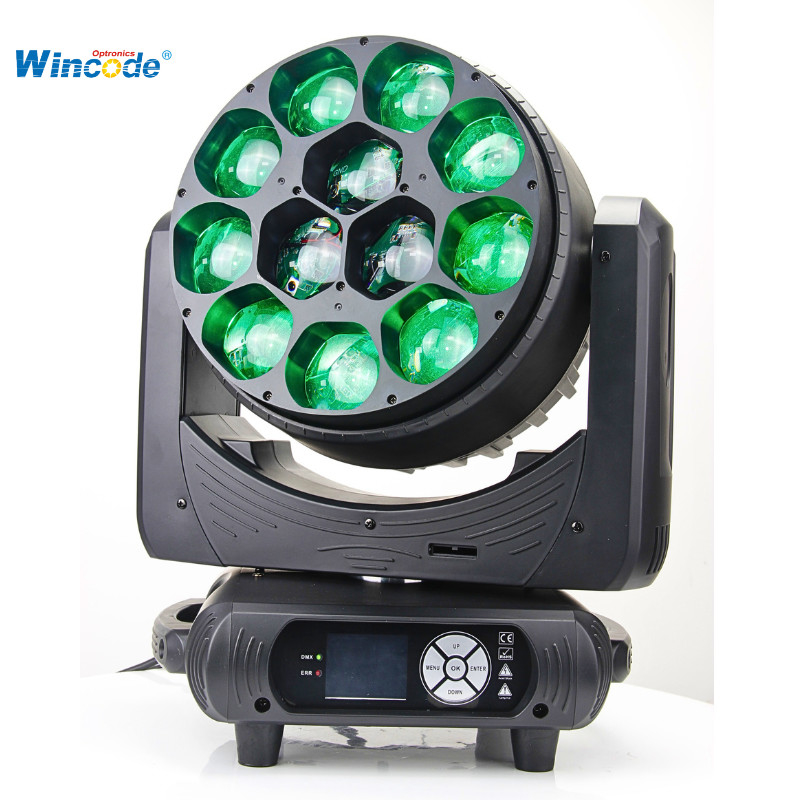

12×40W LED Moving Head Light With Zoom Pixel Function Beam Wash Effects 1

HIGH QUALITY:

Production according to ISO9001:2008 quality system UL,CE and ROHS authentication.



12×40W LED Moving Head Light With Zoom Pixel Function Beam Wash Effects 212×40W LED Moving Head Light With Zoom Pixel Function Beam Wash Effects 312×40W LED Moving Head Light With Zoom Pixel Function Beam Wash Effects 4





OUR SERVICE:

-We will provide more precise and efficientmanufacture and serve according to clients’ drawings.

-We have professional QC team to ensure your product quality

-Check the raw material before starting production.

-Have the random inspection during the processing.

-Make the 100% inspection before the shipments.





OUR ADVANTAGE:

-Skillful workers of more than 10 years experiences assemble according to UL CE standard.

-Highquality meet different market, CE RoHs, UL, TUV…

-All products QC checked before package.

-Products improved from the public mold.

-Products can be customized, Hardware and software can be customized.





FAQ:

Q1. How is your product quality?

Our products are made complying to CE/RoHS/UL standards, and tested for 48hrs before shipping ensuring items function well.

Q2. Why your pricing is higher than many other factories?

There’s no lowest price in the market.

Pricing in WINCODE OPTRONICS is quite middle level, to ensure our requirements on quality and service, while be responsible for customers.

Q3. Can I have samples first?

Sure. Sample order is accepted. Just let us know whenever you need.

Q4. How can I know the shipping status?

You will get a tracking number of the shipping after we sending out the goods, track it on the official website of the shipping (DHL, UPS etc.), you will see the latest status.
